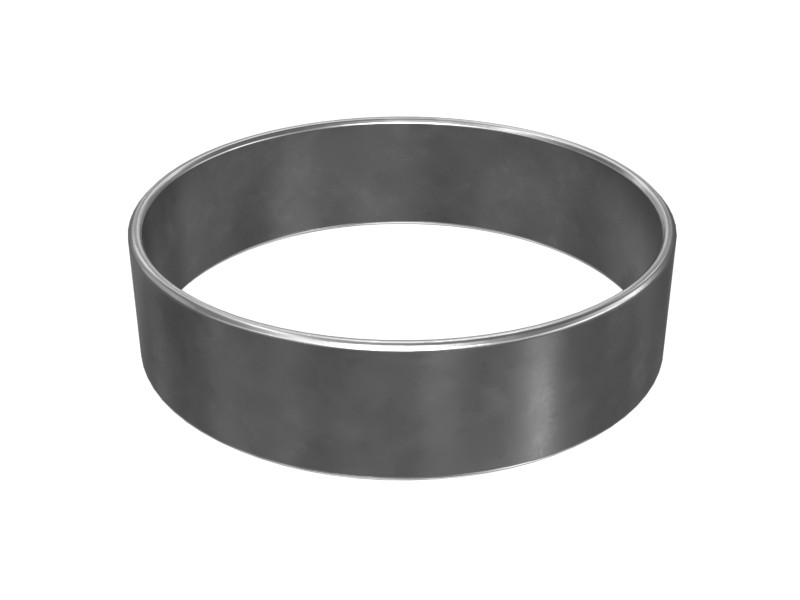

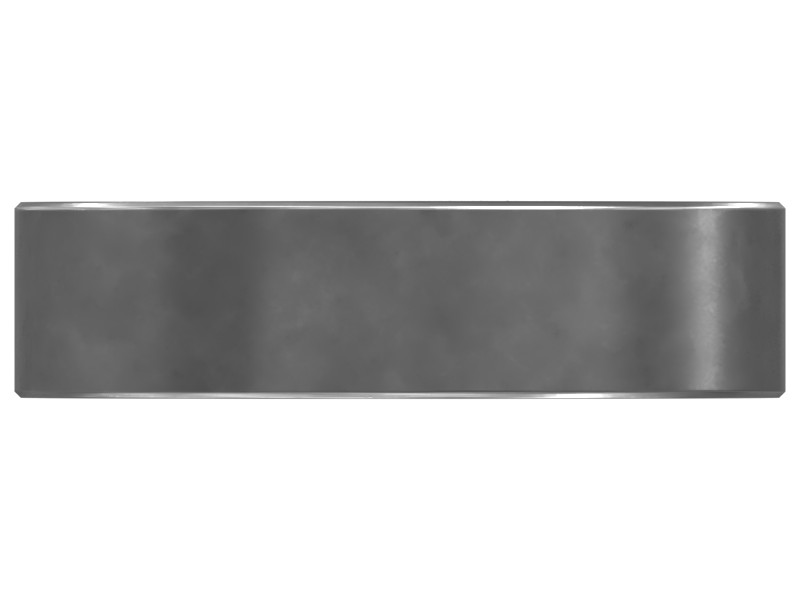

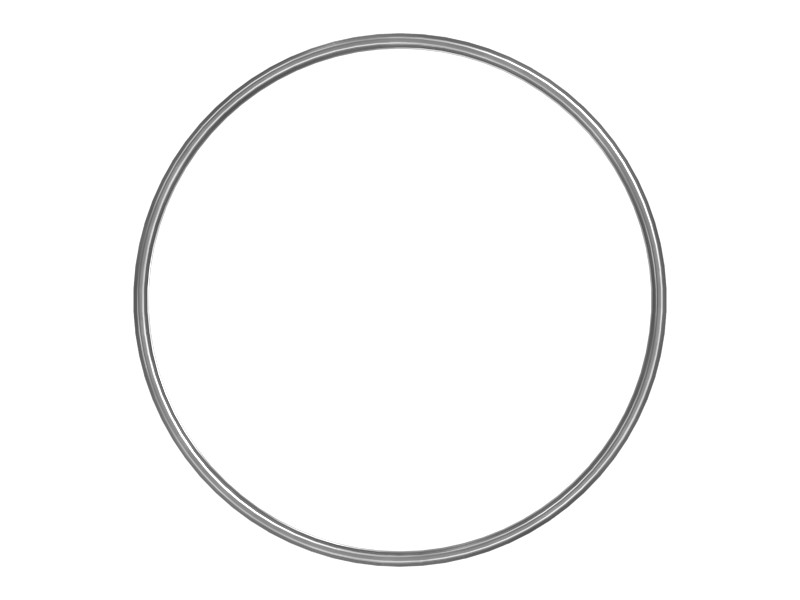

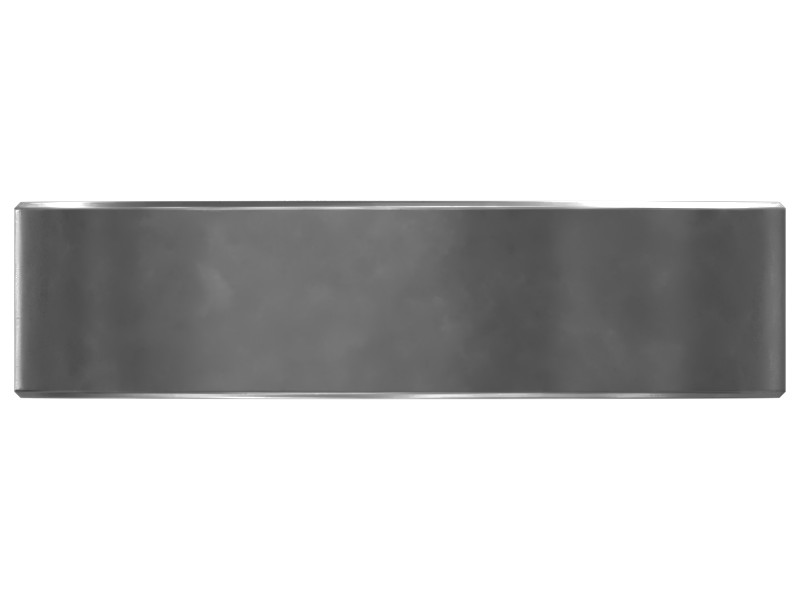

1T-1047 100.254 mm OD Sleeve Bearing
Cat® 100.254 mm OD 25.4 mm Long Torque Converter Drive Gear Sleeve Bearing
Description
Cat® sleeve bearings and bushings support rotating, oscillating and linear motion between machine systems. These bearings may include lubrication features such as internal and external grooves and cross holes for continuous, effective lubrication of components.
Specifications
| Ferrule Inside Diameter | 94.996 mm (3.74 in) |
|---|---|
| Ferrule Outside Diameter | 100.254 mm (3.947 in) |
| Unique Features | No |
| Type | Straight Sleeve |
| Material | Steel-backed Bronze |
| Inside Diameter | 95 mm (3.74 in) |
| Outside Diameter | 100 mm (3.95 in) |
| Overall Length | 25 mm (1.00 in) |
| Internal Groove | Yes |
| External Groove | None |
| Cross Hole | None |
Compatible Equipment
- Compactors: 816, 814, 815
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
