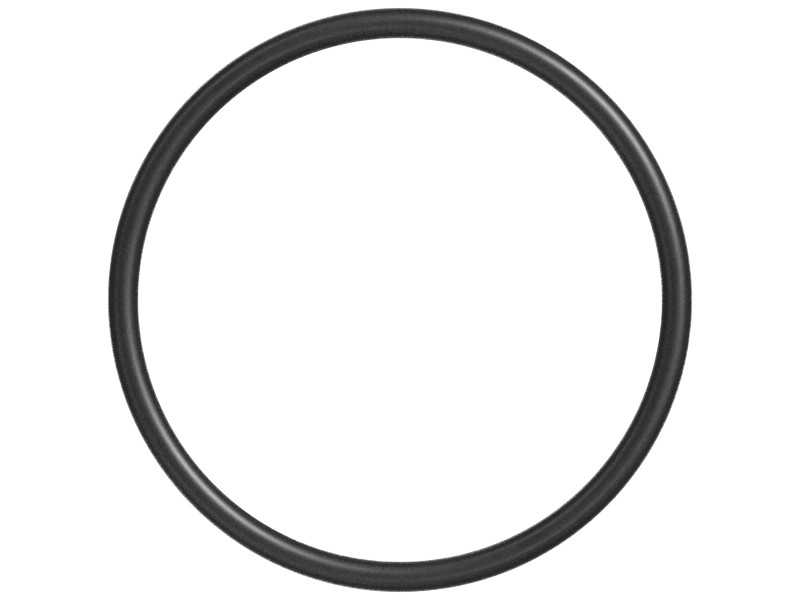

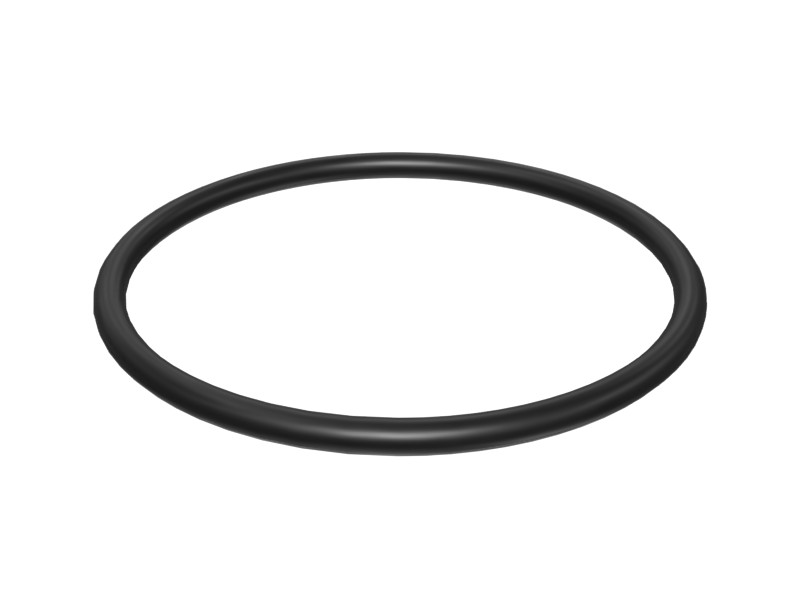

1M-9011 224.90 mm ID Toric Seal Ring
Cat® 224.90 mm ID Toric Ring provides a reliable seal, prevents leaks, and secures the connection.
Description
O-rings are used for static sealing and some dynamic applications. Cat® O-rings are made from materials matched to the fluids, temperatures and pressures in Cat engines and machines. These materials resist abrasion and extrusion and provide excellent compression set resistance for the seal. In addition, some Cat O-rings are coated with PTFE to minimize seal twisting and cutting during installation.
Our O-rings are dimensioned to strictly follow tight tolerances, ensuring they are properly seated in the seal groove with the right seal compression. With more than 2500 different sizes and materials of O-rings, Cat O-rings are the best solution for your O-ring needs on Cat and other mobile equipment. Cat sealing systems prevent leaks and contamination of more expensive parts. Protect your investment with Genuine Cat seals. O-rings are used in many static and dynamic joints in Cat machines and engines.
Specifications
| Temperature | -40 – 100 °C (-40 – 212 °F) |
|---|---|
| Inside Diameter | 224.9 mm (8.85 in) |
| Remarks | Dimensions and material descriptions are for reference only. Color may differ from the image. |
| Not Compatible | Automotive and Aircraft Brake Fluids; High Concentration Ozone; Ketones; Phosphate Ester Fluids; Ultraviolet Light |
| Seal Inside Diameter | 224.90 mm |
| Cross-Section Diameter | 12.70 mm (0.5 in) |
| Coating | None |
| Compatible | Alpha-Olefin-Based Synthetic Lubricants; Glycols; Petroleum-Based Lubricants; Silicone Oils and Greases; Water, Water-Based Engine Coolants |
| Material Description | NBR is a general-purpose material with good abrasion and cut resistance. It is suitable for air, engine oil, diesel fuel, coolant/urea, hydraulic oil and automatic transmission fluid applications. Never use with biodiesel. |
| Application | Ambient Temperature Fuel Handling; High and Low Pressure LPG Service; Hydraulic Oil; Power Steering Seals; Radiator Thermostat Seals |
| Material | NBR (60) |
Compatible Equipment
- Track Loaders: 972, 982, 953, 963, 963D, 963K, 953D, 824C, 953K, 824G, 826K, 826G, 826H
- Cold Planers: PL61, PL87, PL83, PL72
- Compactors: 825K, 824K, 815, 816, 814
- Dozers: D8, D8T, D5N, D6R II, D6T, D7H, D6R, D7R II, D8R, D5H, D6N, D7G, D5K2 XL, D6M, D7R, D3G, D5G, D6R III, D6K2, D6T LGP, D6R XL, D8N, D5K XL, D7G2, D4, D3K2 LGP, D4G, D5M, D5K LGP, D7, D6R LGP, D1
- Excavators: 3508B
- Wheel Loaders: 966 GC, 982M, 980M, 972M, 966M
- Off-Highway Trucks: 772G, 770G, 771D
Additional information
| Machine Model | 3508B, 770G, 771D, 772G, 814, 815, 816, 824C, 824G, 824K, 825K, 826G, 826H, 826K, 953, 953D, 953K, 963, 963D, 963K, 966 GC, 966M, 972, 972M, 980M, 982, 982M, D1, D3G, D3K2 LGP, D4, D4G, D5G, D5H, D5K LGP, D5K XL, D5K2 XL, D5M, D5N, D6K2, D6M, D6N, D6R, D6R II, D6R III, D6R LGP, D6R XL, D6T, D6T LGP, D7, D7G, D7G2, D7H, D7R, D7R II, D8, D8N, D8R, D8T, PL61, PL72, PL83, PL87 |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Dozers, Off-Highway Trucks, Compactors, Cold Planers |
| Part Source | Genuine OEM |
