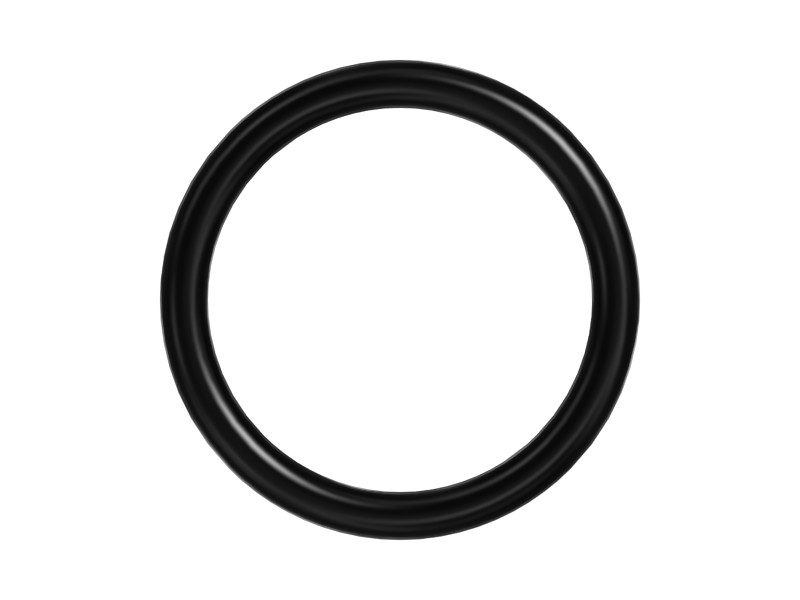

162-2166 Toric Seal
Cat® Toric Seal Ring for Track Rollers
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
The toric seal ring creates a tight, reliable seal between two surfaces. It is designed in a ring shape, similar to a donut or ring. The toric seal ring works by applying pressure to the mating surfaces, forming a barrier that prevents oil or gas leakage.
Attributes
Ensures reliable sealing even under varying conditions and mechanical stress.
Provides a seal between rotating or reciprocating components.
Prevents pressure loss and maintains system efficiency.
Applications
A toric ring seal is a specific type of seal used in the track rollers of heavy machinery. It has a ring shape, similar to an annulus or loop, and is designed to provide an effective seal and prevent contaminants from entering the track roller assembly. It is mainly used on various Cat® equipment that uses track rollers.
Specifications
| Seal Inside Diameter | 76.34 mm |
|---|---|
| Compatible | Alpha-Olefin-Based Synthetic Lubricants; Ethylene Glycol; Hydrocarbon Fuels; Petroleum-Based Lubricants; Silicone Oils and Greases; Water, Water-Based Engine Coolants |
| Cross-Section Diameter | 9.47 mm (0.37 in) |
| Temperature | -40 – 100 °C (-40 – 212 °F) |
| Not Compatible | Acetone; Automotive and Aircraft Brake Fluids; Chlorinated Hydrocarbons; High Concentration Ozone; Ketones; Nitro Hydrocarbons; Phosphate Ester Fluids; Strong Acids; Ultraviolet Light |
| Remarks | Dimensions and material descriptions are for reference only. Color may differ from the image. |
| Application | Ambient Temperature Fuel Handling; High and Low Pressure LPG Service; Hydraulic Oil; Power Steering Seals; Radiator Thermostat Seals |
| Coating | None |
| Inside Diameter | 76 mm (2.99 in) |
| Material Description | NBR is a general-purpose material with good abrasion and cut resistance. It is suitable for air, engine oil, diesel fuel, coolant/urea, hydraulic oil and automatic transmission fluid applications. Never use with biodiesel. |
| Material | NBR (70) |
| Weight | 0.01 kg (0.01 lb) |
Compatible Equipment
- Track Loaders: 973K, 953D, 963K, 963D
- Cold Planers: PL83, PL87, PL72
- Compact Track Loaders: 279D3, 299D3
- Dozers: D7E, D8, D9R, D6R III, D8T, D9T, D6R, D8R, D7R II, D6T LGP, D7R, D6R II, D6T, D6R XL, D6G2 XL, D6G2 LGP, D7, D9, D6G, D6R LGP
- Excavators: 313 GC, 313, 316 GC, 312 GC, 315 GC, 312 GX, 315, 312D2, 3508B, 313 GX, 312C L, 312C, 311C, 312E L, 314C, 313F L, 312F, 315F LCR, 312E, 313F LGC, 312D L, 313D2, 313D2 GC, 312D2 L, 313D2-GC, 316 GX
- Skid Steer Loaders: 289D3, 249D3, 259D3, 239D3, 299D3 XE, 279C, 262D
Additional information
| Machine Model | 239D3, 249D3, 259D3, 262D, 279C, 279D3, 289D3, 299D3, 299D3 XE, 311C, 312 GC, 312 GX, 312C, 312C L, 312D L, 312D2, 312D2 L, 312E, 312E L, 312F, 313, 313 GC, 313 GX, 313D2, 313D2 GC, 313D2-GC, 313F L, 313F LGC, 314C, 315, 315 GC, 315F LCR, 316 GC, 316 GX, 3508B, 953D, 963D, 963K, 973K, D6G, D6G2 LGP, D6G2 XL, D6R, D6R II, D6R III, D6R LGP, D6R XL, D6T, D6T LGP, D7, D7E, D7R, D7R II, D8, D8R, D8T, D9, D9R, D9T, PL72, PL83, PL87 |
|---|---|
| Equipment Type | Excavators, Track Loaders, Compact Track Loaders, Skid Steer Loaders, Dozers, Cold Planers |
| Part Source | Genuine OEM |
