Description

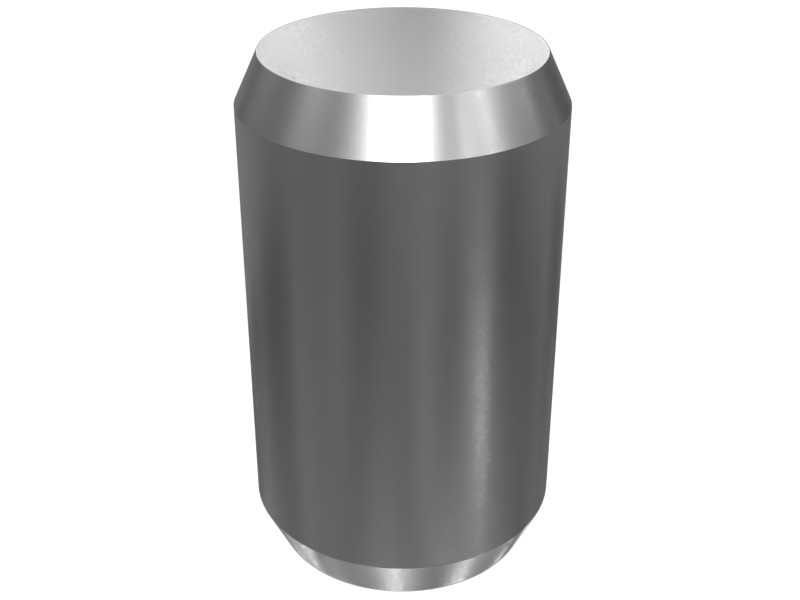

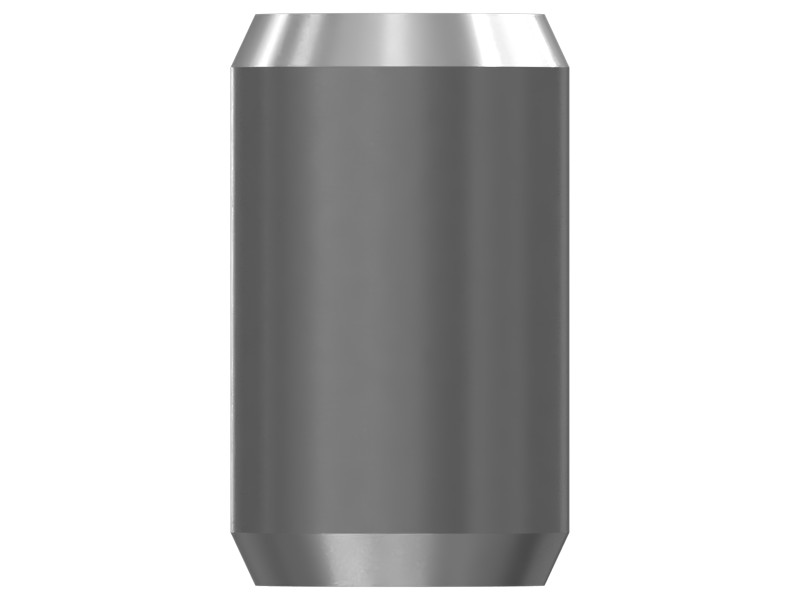

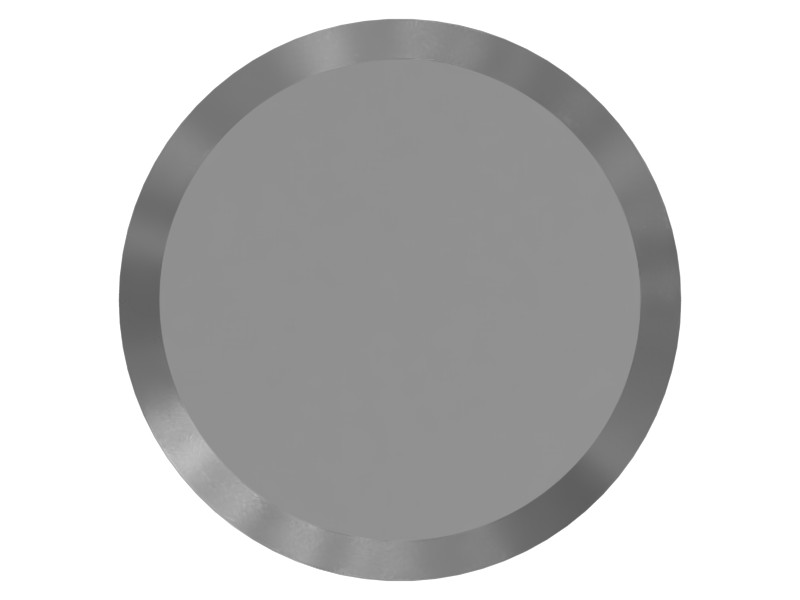

A dowel pin is a headless straight pin with a tightly controlled diameter, which can be press-fitted into one or two parts to transmit loads or fix the position of adjacent parts. Fasteners and hardware are designed for specific applications based on size, strength, clamping force, and past performance, information that other manufacturers do not have. They are carefully selected to last until the machine is rebuilt or reaches the end of its life. Non-Cat hardware and fasteners may appear to fit your machine, but other companies do not know your equipment the way we do.
Specifications
| Pin Outside Diameter | 9.37 mm (0.369 in) |
|---|---|
| Pin Length | 15.75 mm (0.62 in) |
| Pin Type | Solid |
| Pin Diameter | 9 mm (0.37 in) |
| Overall Length | 16 mm (0.62 in) |
| Remarks | End Type: Lead Chamfer, Lead Chamfer |
Compatible Equipment
- Motor Graders: 16, 140G, 120, 12H, 140H
- Generator Sets: C7.1
- Track Loaders: 834H, 994K, 963, 995, 990K, 993, 816F, 992
- Compactors: 815, 816, 814
- Dozers: D4E, D6R, D5H, D7H, D7G, D6G2 XL, D7G2, D7R, D6G2 LGP, D10R, D6G
- Excavators: 621H, 657G, 637G, 621G, 621K, 350 L, 637E, 330 L, 330B, 637K
- Wheel Loaders: 992K
- Off-Highway Trucks: 785, 789, 793F, 777D, 793D, 771D, 785D, 777, 793, 773E, 789D, 773F, 777E, 775G, 773, 773D
- Asphalt Pavers: AD63, AD45
- Skid Steer Loaders: 24
Additional information
| Machine Model | 120, 12H, 140G, 140H, 16, 24, 330 L, 330B, 350 L, 621G, 621H, 621K, 637E, 637G, 637K, 657G, 771D, 773, 773D, 773E, 773F, 775G, 777, 777D, 777E, 785, 785D, 789, 789D, 793, 793D, 793F, 814, 815, 816, 816F, 834H, 963, 990K, 992, 992K, 993, 994K, 995, AD45, AD63, C7.1, D10R, D4E, D5H, D6G, D6G2 LGP, D6G2 XL, D6R, D7G, D7G2, D7H, D7R |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Asphalt Pavers, Generator Sets |
| Part Source | Genuine OEM |
