Description
Cat bolts form a matched system with mating hardened washers and nuts to produce consistent, high clamping force
Specifications
| Thread Size (Diameter × Pitch) | 5/16×18 mm |
|---|---|
| Class or Grade | SAE J429 Grade 8 (150 ksi) |
| Locking Feature | None |
| Thread Size | 0.3125 mm (0.012 in) |
| Thread Direction | RH |
| Bolt Length | 31.75 mm (1 1/4 in) |

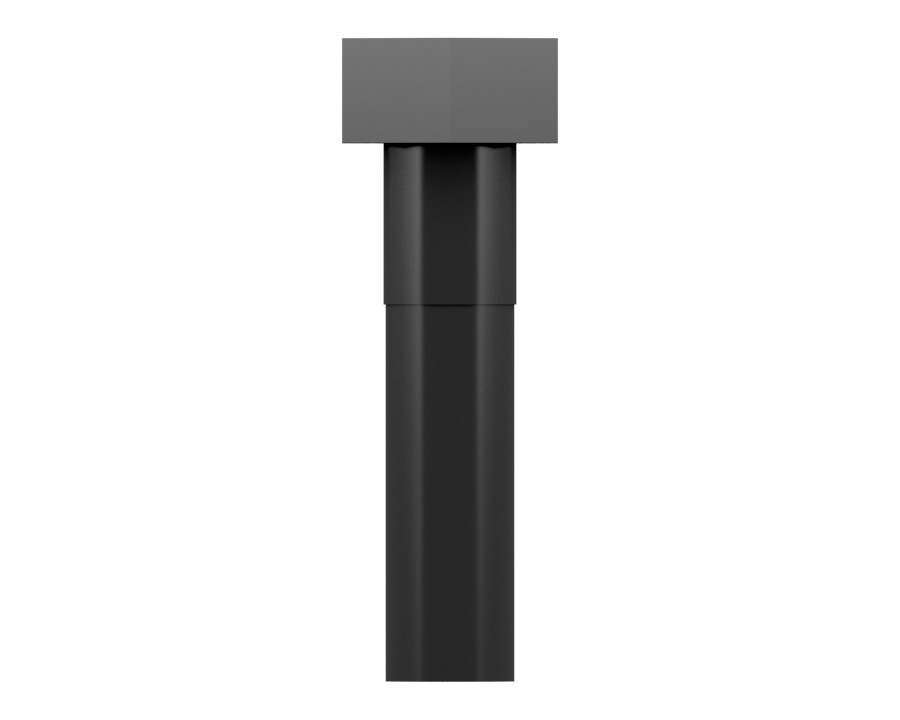

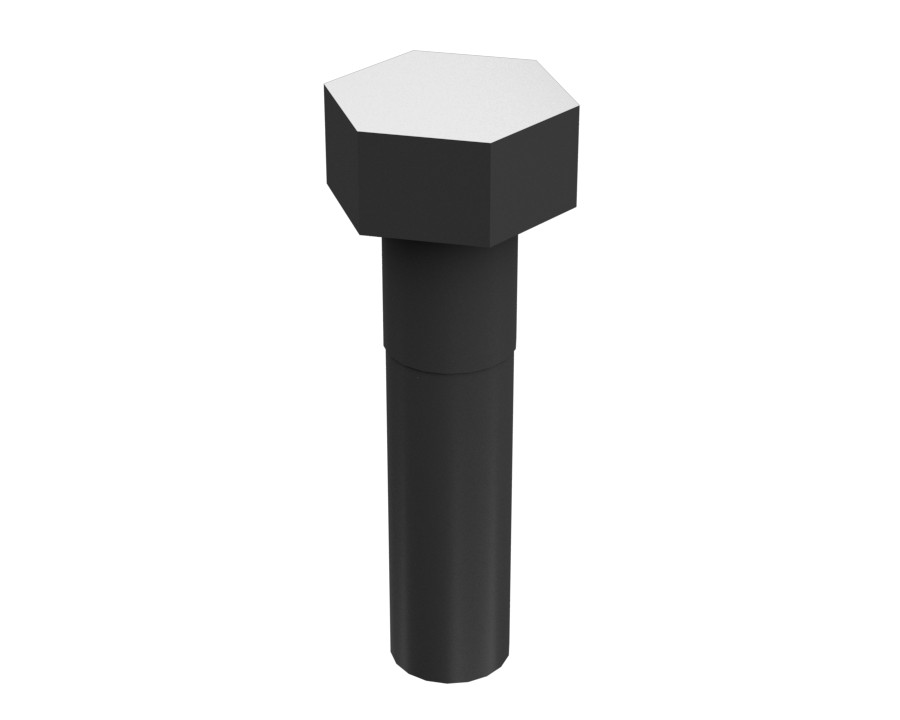

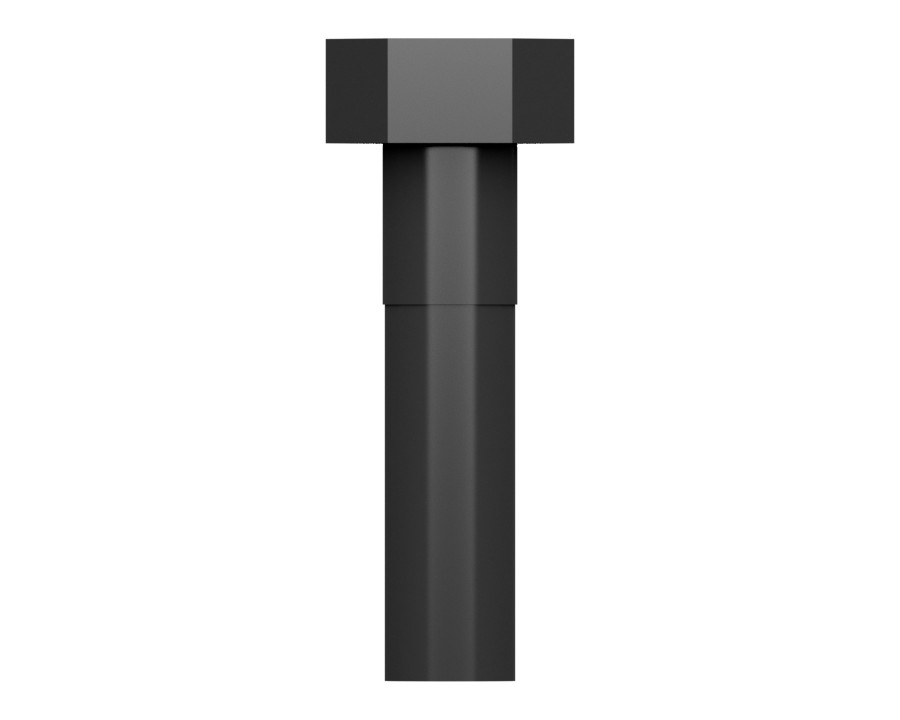

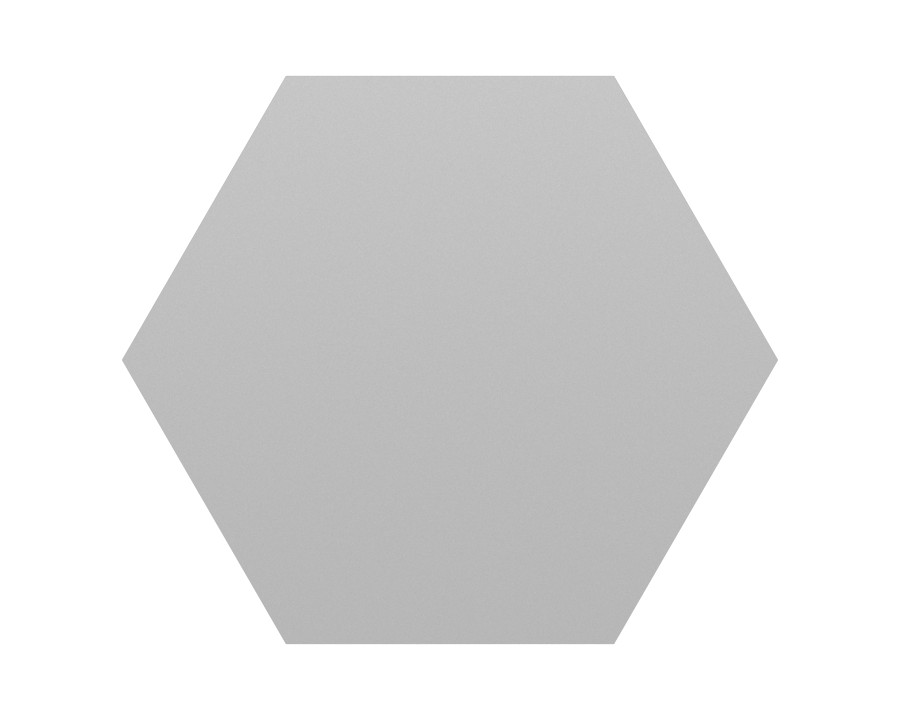

| Bolt Type | Hex Head Bolt |
| Coating | Zinc Phosphate and Oil |
| Handle Length | 9.525 mm (0.14 in) |
| Material | Steel |
Compatible Equipment
- Generator Sets: G3516, 3512E, 3512B, 3406C, 3516C, 3406B, C9, G3516C, C7.1, C4.4
- Track Loaders: 992, 826K, 824C, 963, 990K, 953, 824G, 834H, 826G, 993, 995, 994K, 816F, 826H
- Cold Planers: PL87, TH55-E70, PL83, PM622, PM-200, PM620
- Compactors: 825K, 814, 815, 816, 824K, 834K, CS-533C, C-15, C-9
- Engines: C13, C15, C32, C27, C11, C18, C12
- Excavators: 374D L, 3456, 390F L, 390D L, 374F, 374, 3516B, 3516E, 395, 6015, 6030, 330B, 330 L, 637E, 385C FS, 3508B, 3512C, 6015B, 621G, 385C, 6060, 374F L, 390F, 6020B, 6018, 385C L, 390D, 345B, 365C, 385B, 350 L, 6015 FS, 6040, 637G, 657G, 637K, 365C L, 3101
- Asphalt Pavers: AD63, AD30, AD45
- Skid Steer Loaders: 24, 3126B
- Motor Graders: 140G, 12H, 16, 120, 16H, 3606, 140H
- Wheel Excavators: MD6310, MD6200, MD6250
- Dozers: D4E, D11T, D10R, D9T, D10T, D10N, D10T2, D7H, D7G, D5H, D9R, D7R II, D7G2, D8N, D8L, D8T, D11R, D9, D11N, D10, D8R, D9N, D8, D6G, D6T, D11, D9L
- Wheel Loaders: 988K, 992D, 986H, 988F, 988H, 980G, 834, 950, 966F, 950G, 910, 836, 980, 990H, 972G, 980H, 988G, RM500B, R2900G, R1600H, R1700G, R2900 XE, 992C, R1300G, R1700 II, R3000H
- Off-Highway Trucks: 773E, 785, 789D, 777D, 793D, 745C, 740, 773D, 777, 771D, 789, 777E, 770G, 773F, 735, 772G, 740B, 773, 793, 745, 785D, 775G, 740 GC
