Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating washers and nuts to produce consistent, high clamping force. You can rely on Cat fasteners to help you build, maintain or rebuild – for most machine and shop applications around the world.
Specifications

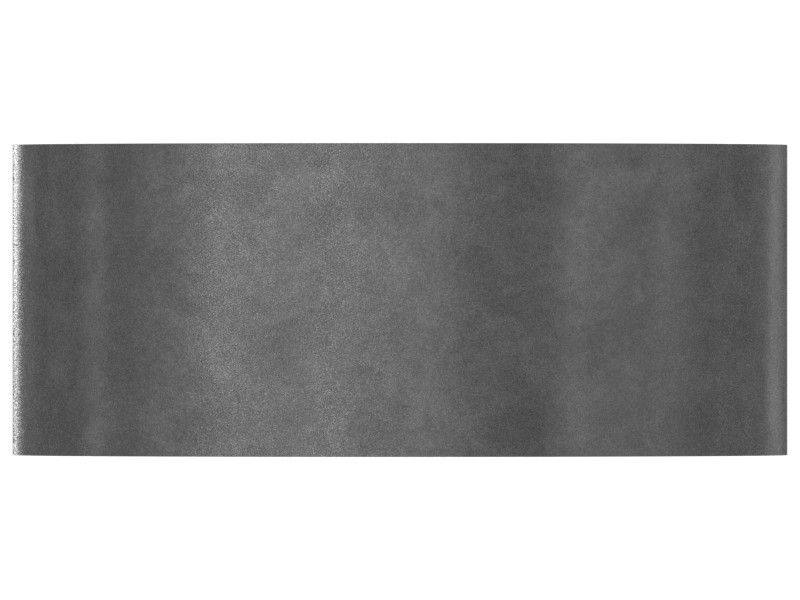

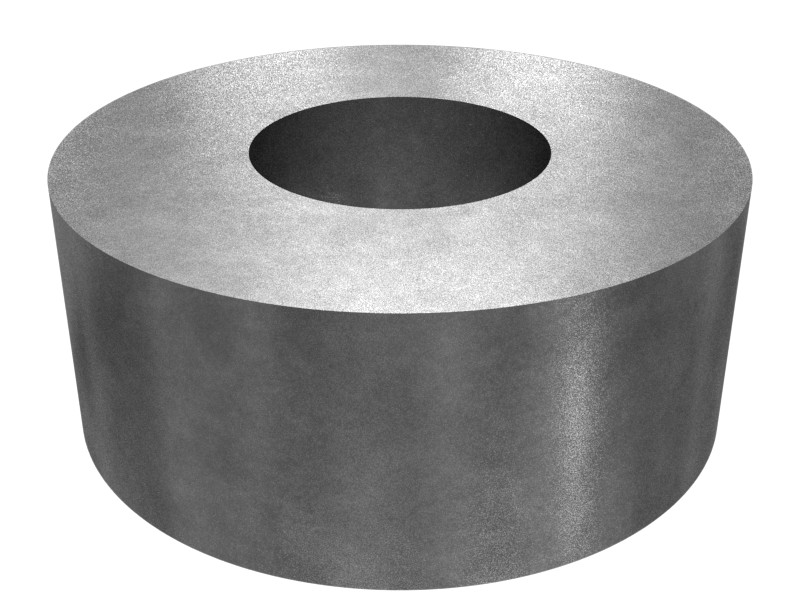

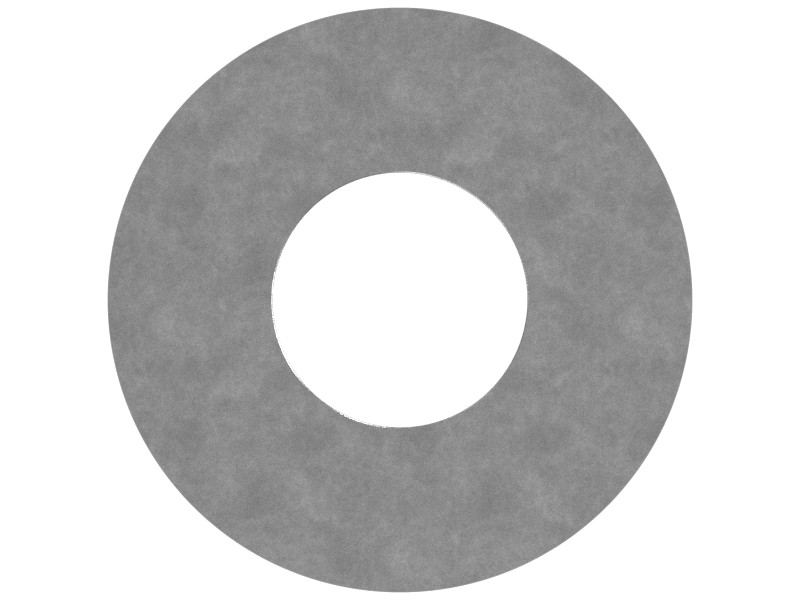

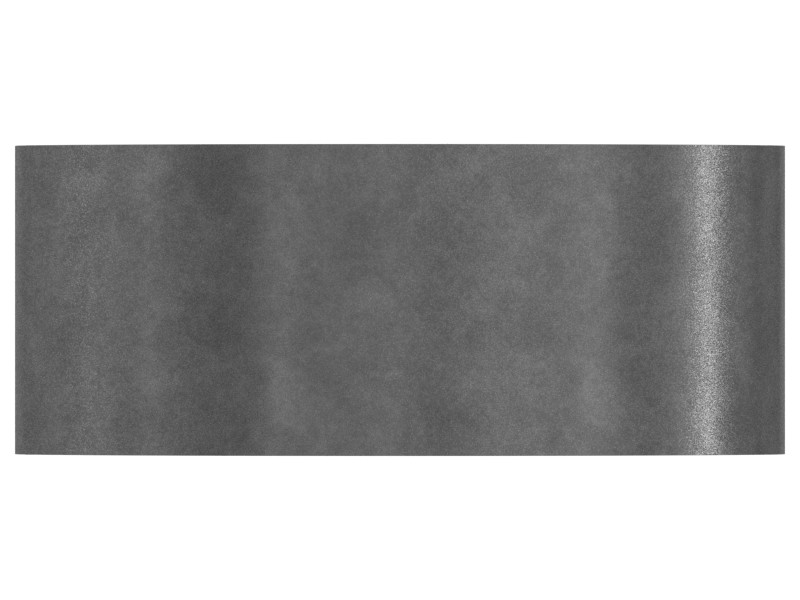

| Gasket Type | Flat Washer |
|---|---|
| Material | Alloy Zinc |
| Outside Diameter | 25 mm (0.984 in) |
| Inside Diameter | 11 mm (0.433 in) |
| Fits Bolt Size | M10 mm (3/8 in) |
| Thickness | 10 mm (0.394 in) |
| Coating | Zinc phosphate + oil provides corrosion protection up to the point of assembly (painting is recommended for exterior applications). Salt spray resistance: 72 hours with no red rust. Coating color – dark gray to black. |
Compatible Equipment
- Generator Sets: 3516C, G3516, 3512B, 3512E, C9
- Track Loaders: 963D, 953, 953D, 990K, 953K, 972, 994K, 963K, 826H, 963, 995
- Cold Planers: PM620, PM622
- Compactors: CW-34, CB-24B, CW-16, CC-34B, CB-34B, CB2.9, CB2.7, CB2.5, C13B, CB-36B
- Engines: C32, C15, C18, C175-16
- Excavators: 307.5, 320D2, 313, 374, 352, 340, 315 GC, 120 GC, 3512C, 350, 3508B, 3516E, 3516B, 303.5CR, 320D3, 336, 6060, 320D3 GC, 355, 325, 345 GC, 349, 336 GC, 6015B, 3101, 335, 350MHPU, 637K, 621K, 315, 320D2 L, 395
- Motor Graders: 18, 140 GC, 14, 16, 349 GC, 16M3
- Dozers: D11T, D11, D10T, D8T, D8R, D5N, D6R II, D6N, D10, D8, D10R, D10T2, D7E, D6T
- Mini Excavators: 308.5, 310, 306, 308, 305.5 GC, 307
- Wheel Loaders: 938M, 962L, 938K, 924K, 966L, 950H, 980H, 926M, 966H, 972L, 972H, 980G, 966, 950L, R2900G, R1700 XE, R1600H, R1700G, R3000H, R1700K
- Off-Highway Trucks: 797F, 773F, 772G, 798 AC, 793D, 777, 793, 796 AC, 770G, 789D, 793F, 777D, 794 AC, 725, 735, 730, 777E, 773, 789, 773E, 785D, 785
