Description

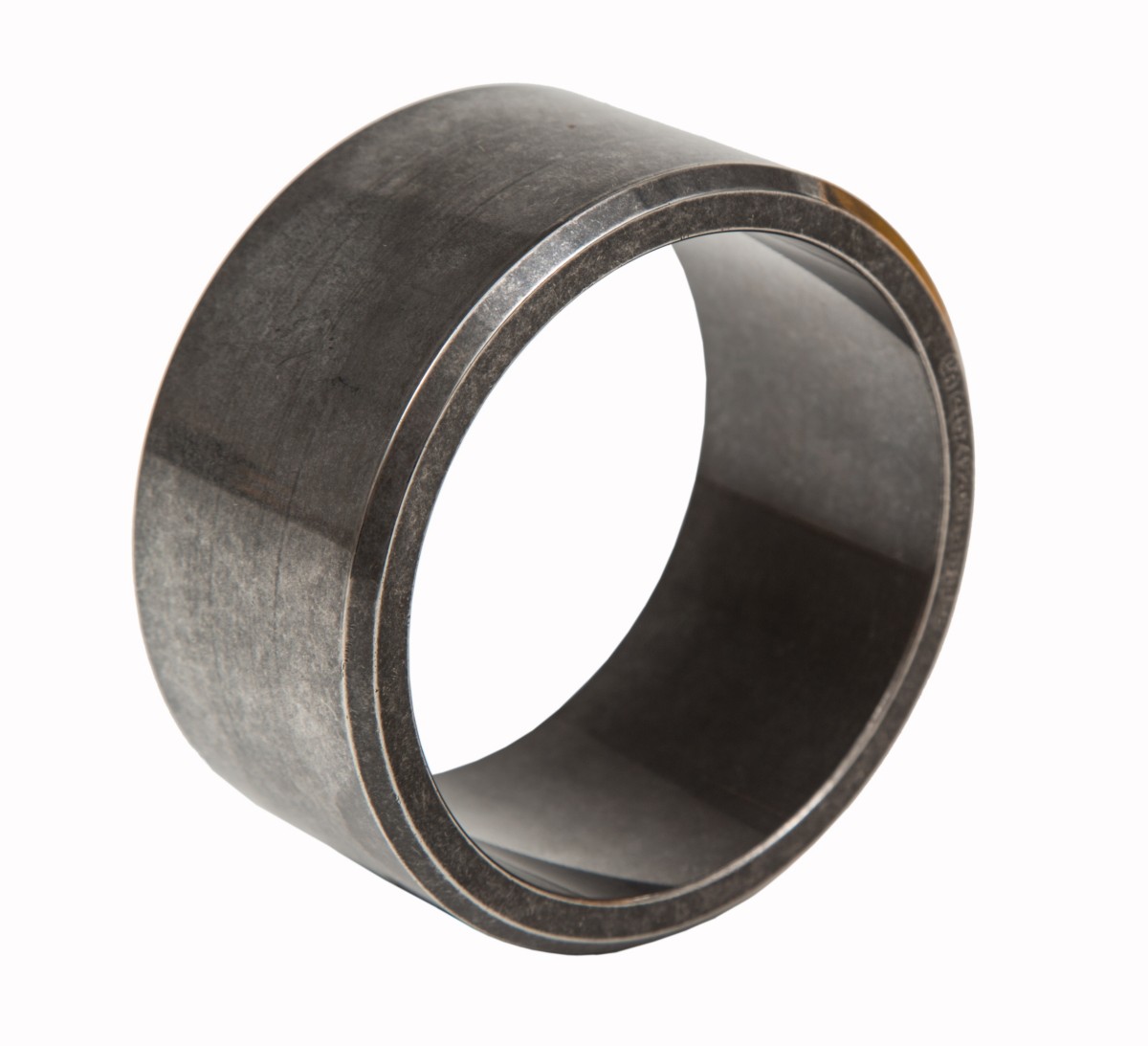

Cat® machine linkage sleeve bearings support pivoting between the frame linkage and work tools. They are most commonly used in machine booms and buckets. Genuine Cat pins and sleeve bearings are specially designed to work as a single system to deliver the performance you expect. Caterpillar design engineers apply the right combination of size, material, surface treatment and manufacturing process to each part so it works and wears effectively together with all other adjacent and dependent parts.
Features
Cat heavy-duty sleeve bearings are made from advanced steel and hardened for exceptional hardness and wear life. They work as a system on specific Cat machines and are tested and proven in the world's toughest applications. They deliver maximum strength and durability, ultimately lowering overall cost and providing outstanding strength and fatigue life, superior wear resistance and exceptional protection against pin galling and wear, even under high-load conditions.
Recommended Applications:
Cat sleeve bearings are designed for situations that require durability and load strength to extend bearing life. Cat sleeve bearings are the first choice for maximizing performance in demanding applications. They are designed to match pins.
Specifications
| Ferrule Outside Diameter | 190.31 mm (7.493 in) |
|---|---|
| Ferrule Inside Diameter | 160.36 mm (6.313 in) |
| Unique Features | No |
| External Groove | None |
| Approximate Overall Length | 160 mm |
| Cross Hole | Yes |
| Approximate Inside Diameter | 160 mm |
| Approximate Outside Diameter | 190 mm |
| Type | Straight Sleeve |
| Internal Groove | Yes |
| Inside Diameter | 160 mm (6.31 in) |
| Outside Diameter | 190 mm (7.49 in) |
| Overall Length | 160 mm (6.299 in) |
Compatible Equipment
- Excavators: 385C, 385C FS, 365B, 365C
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
