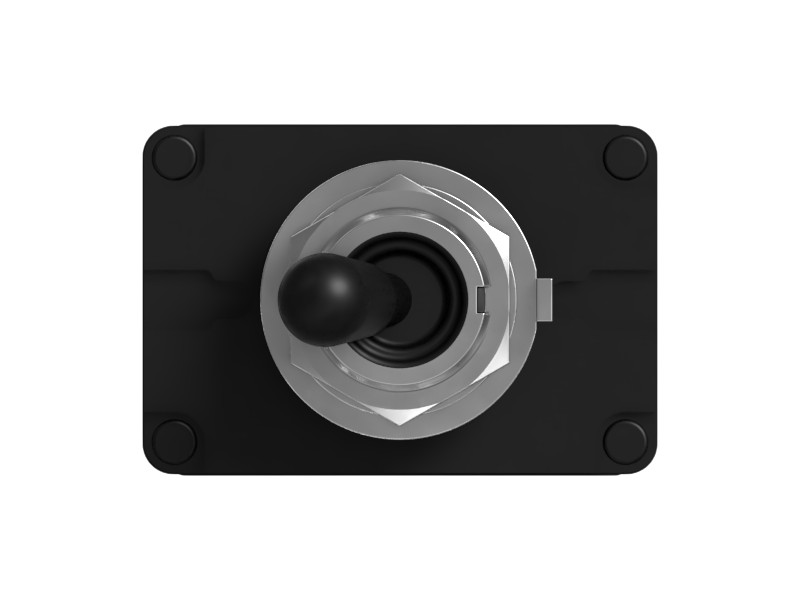

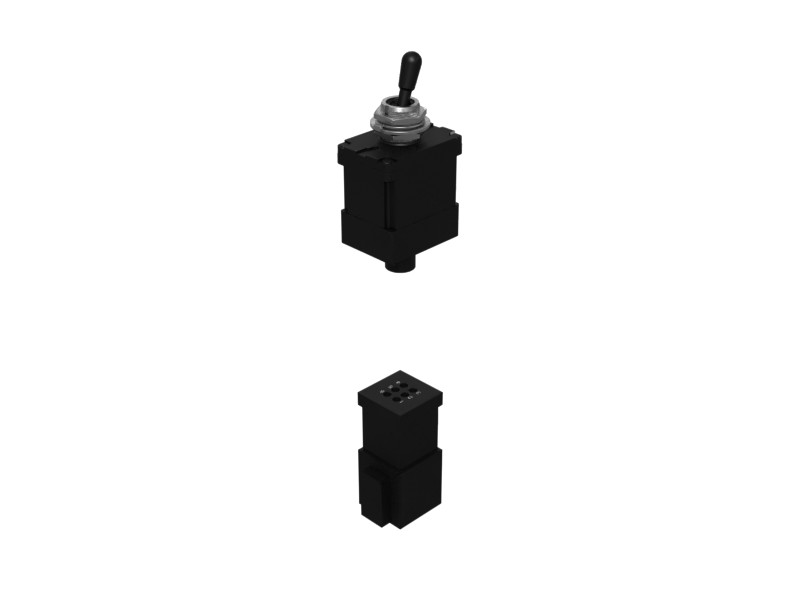

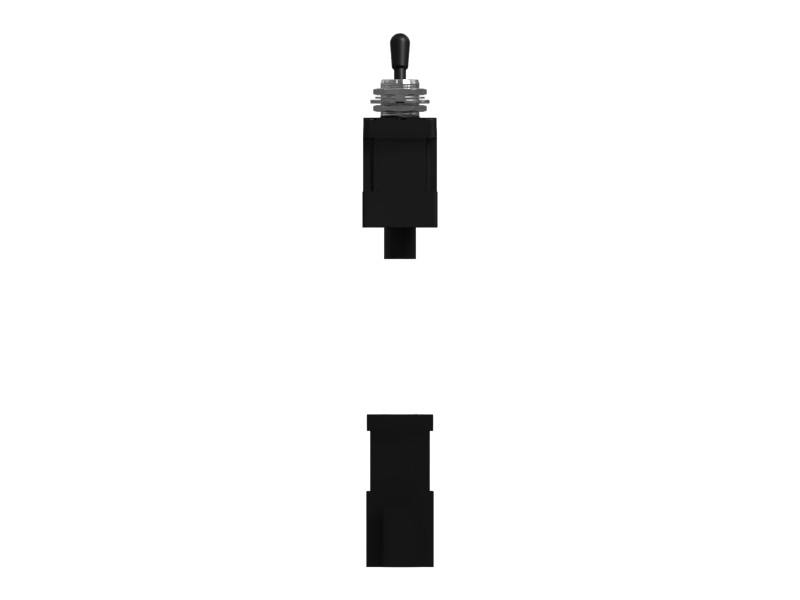

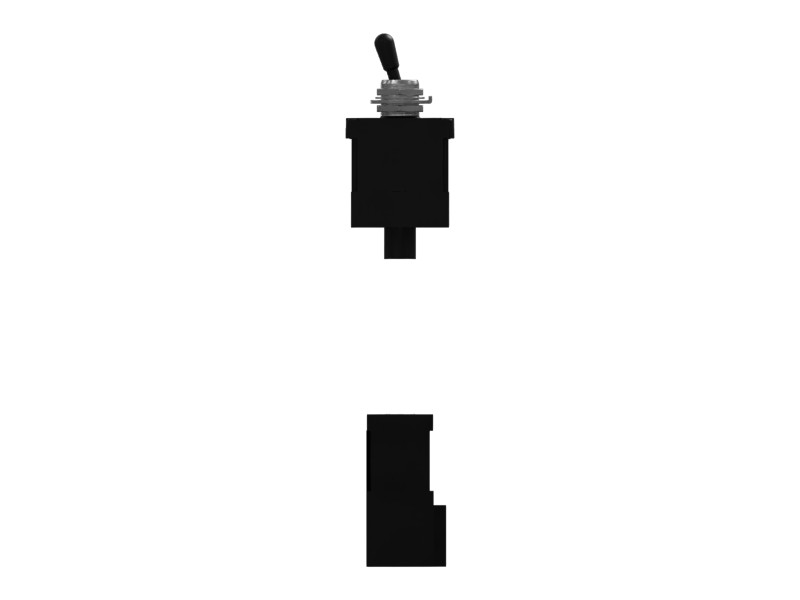

170-2512 Double Pole Double Throw 28 Volt Toggle Switch
Cat® Toggle Switch for manual electric switching in platform wiring enables controlled operation, helping ensure safe equipment operation.
Description
Cat parts ensure your equipment runs at its best. The Cat toggle switch group is an electrical switch operated manually by a mechanical lever, handle, or rocking mechanism.
Features
- Toggle switch with pigtail connector
- Double pole double throw (DPDT)
- 2-Position
- 28 VDC
- Connector Type: 6-Pin DT
- Heavy-Duty Construction
- Easy to operate
- High accuracy and stable performance
- Waterproof
- Designed to work with other Cat parts to ensure the equipment reaches its full potential
- ROHS compliant
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information. Cat parts can operate in heavy-duty applications in environments with severe vibration, shock, extreme operating temperature ranges, thermal cycling, thermal shock, moisture, corrosion and dust.
Specifications
| Material | Polyamide Plastic |
|---|---|
| Overall Width | 34.3 mm (1.35 in) |
| Overall Height | 23.9 mm (0.94 in) |
| Lead Length | 200 mm (7.87 in) |
| Connector Type | 6-Pin DT |
| Thread Size | 15/32-32 in |
Compatible Equipment
- Generator Sets: 3516C
- Engines: C15, C27, C32
- Mini Excavators: 303.5E, 305.5E
- Excavators: 349F L, 330D L, 329D L, 323D L, 315D L, 312D, 320D2 L, 336D L, 324D L, 365C, 385C FS, 385B, 385C L, 345D L, 349D L, 365B, 3516B, 385C, 365C L, 352F, 390D, 365B L, 345C L, 323D2 L, 336D2 L, 325D L, 323D, 324D, 312D L, 325D, 320D RR, 330D, 320D L, 311D LRR, 345C, 349E L VG, 349E L, 336D, 320D, 320D2, 390D L, 374D L, 326D2 L, 336D2, 329D, 329D2, 329D2 L
- Off-Highway Trucks: 772G, 773, 777, 775G, 770G, 771D, 773E
Additional information
| Machine Model | 303.5E, 305.5E, 311D LRR, 312D, 312D L, 315D L, 320D, 320D L, 320D RR, 320D2, 320D2 L, 323D, 323D L, 323D2 L, 324D, 324D L, 325D, 325D L, 326D2 L, 329D, 329D L, 329D2, 329D2 L, 330D, 330D L, 336D, 336D L, 336D2, 336D2 L, 345C, 345C L, 345D L, 349D L, 349E L, 349E L VG, 349F L, 3516B, 3516C, 352F, 365B, 365B L, 365C, 365C L, 374D L, 385B, 385C, 385C FS, 385C L, 390D, 390D L, 770G, 771D, 772G, 773, 773E, 775G, 777, C15, C27, C32 |
|---|---|
| Equipment Type | Excavators, Mini Excavators, Off-Highway Trucks, Engines, Generator Sets |
| Part Source | Genuine OEM |
