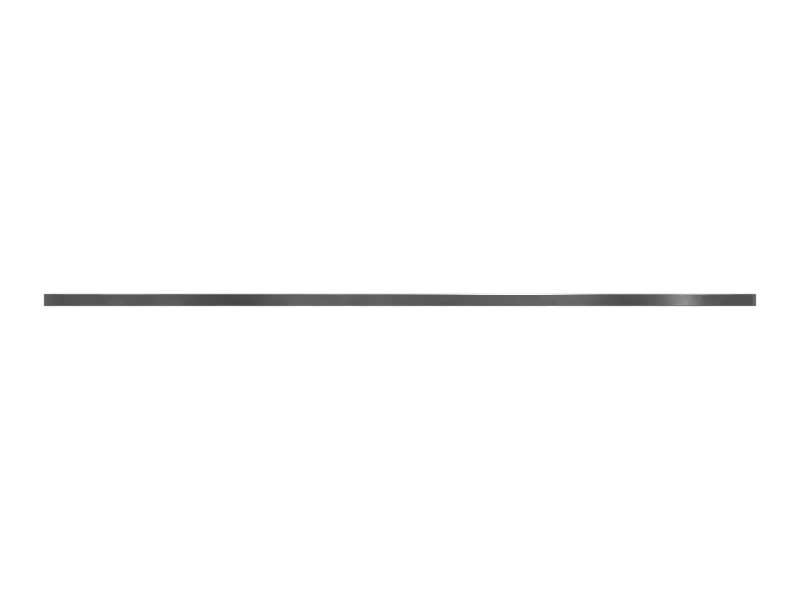

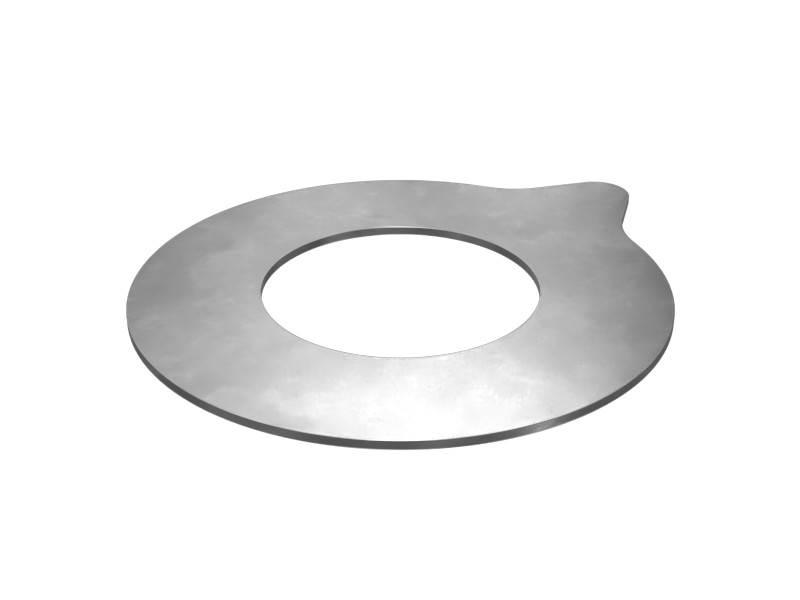

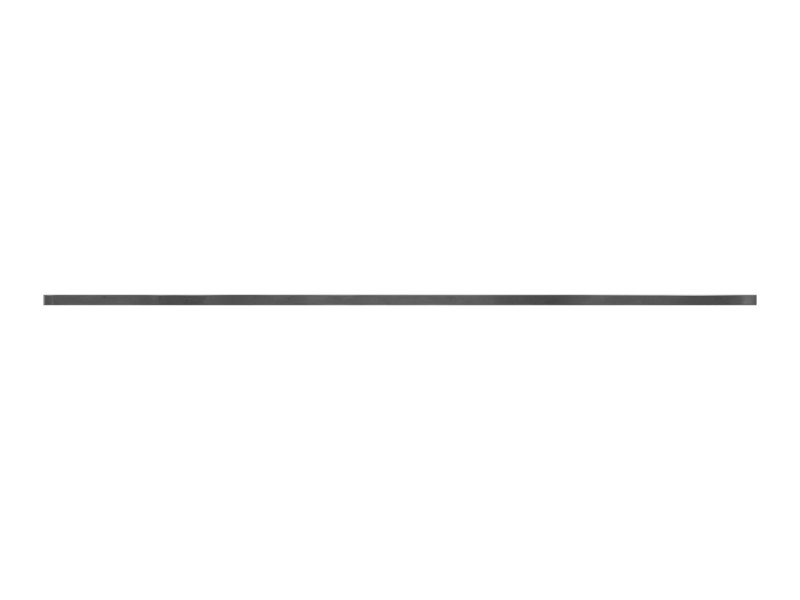

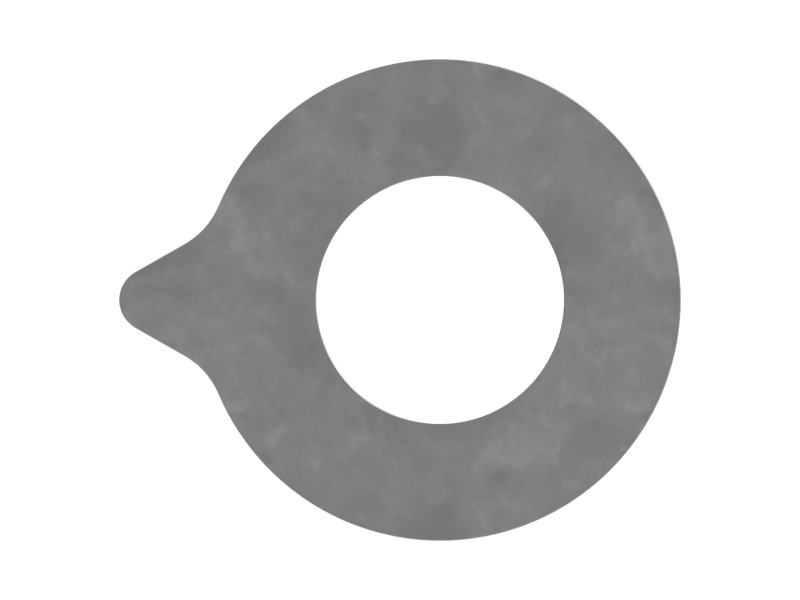

Description
Plastic shims are used to fill gaps or spaces between objects or surfaces. Plastic shims are versatile and are commonly used in applications where precise adjustment, alignment, or leveling is needed. They are designed in different shapes, sizes, and materials to meet specific needs and are important for achieving precise results. They are used for a tight fit between machined parts, securely holding mechanical components in place to prevent excessive wear on components and fasteners.
Features
- Compensator adjusts the tolerance between mating parts
- A cost-effective solution compared to other alignment or clearance adjustment methods
- Reduces excessive wear on parts and fasteners
- High wear resistance
- Designed to withstand heavy loads and high pressure
- Distributes load evenly across multiple locations, reducing stress concentrations and avoiding localized damage
Applications
The plastic shim adjusts the axial clearance between the stick cylinder bearing and the pin assembly.
Specifications
| Diameter | 2.95 in |
|---|---|
| Inside Diameter | 62 mm (2.4409 in) |
| Material Description | Polyolefin Plastic |
| Length | 7.26 in |
| Outside Diameter | 120 mm (4.724 in) |
| Thickness | 2 mm (0.0787 in) |
| Weight | 10.09 lb |
Compatible Equipment
- Mini Excavators: 308, 307E2, 307C, 307, 308E2, 308.5, 307D, 310
- Excavators: 313 GC, 313, 316 GC, 312 GC, 315, 352, 313 GX, 312 GX, 316 GX, 323D L, 311D LRR, 325C, 313D2, 312D2, 320C, 312D, 312C, 313F LGC, 312F, 314D LCR, 313F L, 312D2 L, 314C, 311C, 313D2 GC, 314D CR, 312D L, 330C L, 313D, 312C L, 325D, 312E, 315F LCR, 313D2-GC, 330C, 312D2 GC, 312E L, 349, 307.5, 307E, 308D, 308E
- Skid Steer Loaders: 313D2 LGP
Additional information
| Machine Model | 307, 307.5, 307C, 307D, 307E, 307E2, 308, 308.5, 308D, 308E, 308E2, 310, 311C, 311D LRR, 312 GC, 312 GX, 312C, 312C L, 312D, 312D L, 312D2, 312D2 GC, 312D2 L, 312E, 312E L, 312F, 313, 313 GC, 313 GX, 313D, 313D2, 313D2 GC, 313D2 LGP, 313D2-GC, 313F L, 313F LGC, 314C, 314D CR, 314D LCR, 315, 315F LCR, 316 GC, 316 GX, 320C, 323D L, 325C, 325D, 330C, 330C L, 349, 352 |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
