Description

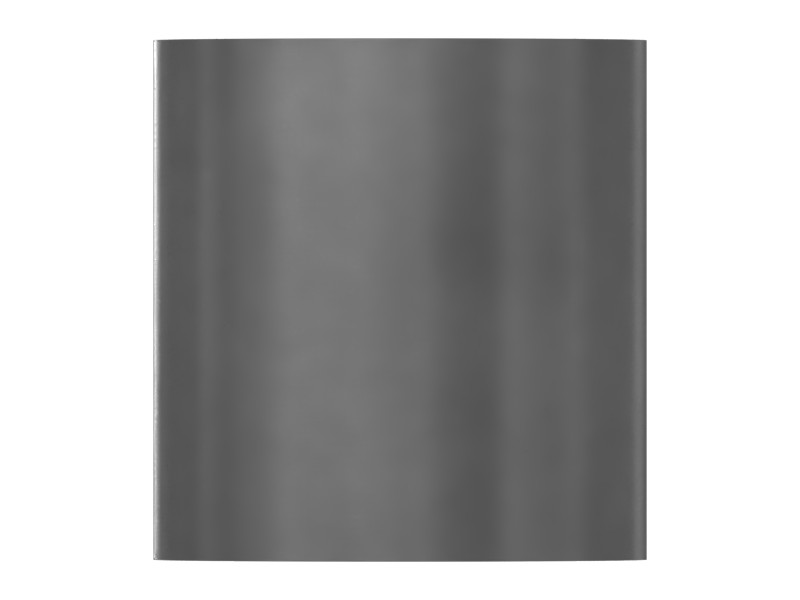

Spacers are commonly used to provide additional stretch length. They are usually a section of tube with a fastener inserted through it; therefore, a short spacer may resemble a thick washer. Washers are sometimes used as small spacers in a fastener to reduce preload loss or narrow the cyclic stress range of the machine workload. They are used to establish and maintain the functional relationship of related parts in a machine system. The spacer has a through hole through which the bolt is inserted. This means the spacer does not engage the threads of the bolt. Because a spacer cannot be tightened directly, a round outer profile is typically used.
Features
- Zinc electroplating provides a protective layer against corrosion caused by water and other elements in the air
- Built to exact specifications for durability, reliable performance, and outstanding productivity.
Applications
This shim is used for mounting the belt guard.
Specifications
| Gasket Type | Flat |
|---|---|
| Center Hole Shape | Non-Threaded |
| Outside Diameter | 9.5 mm (0.37 in) |
| Inside Diameter | 6.5 mm (0.25 in) |
| Material | Carbon Steel |
| Thickness | 10 mm (0.39 in) |
| Coating | Zinc |
Compatible Equipment
- Cold Planers: PL87, PL83
- Wheel Excavators: IT14G
- Dozers: D8, D11T, D6R II, D6R III, D7R II, D6R XL, D6T, D7R, D8N, D8T, D6R, D10T, D9T, D7
- Wheel Loaders: 986H, 966H, 972H, 950H, 980H
