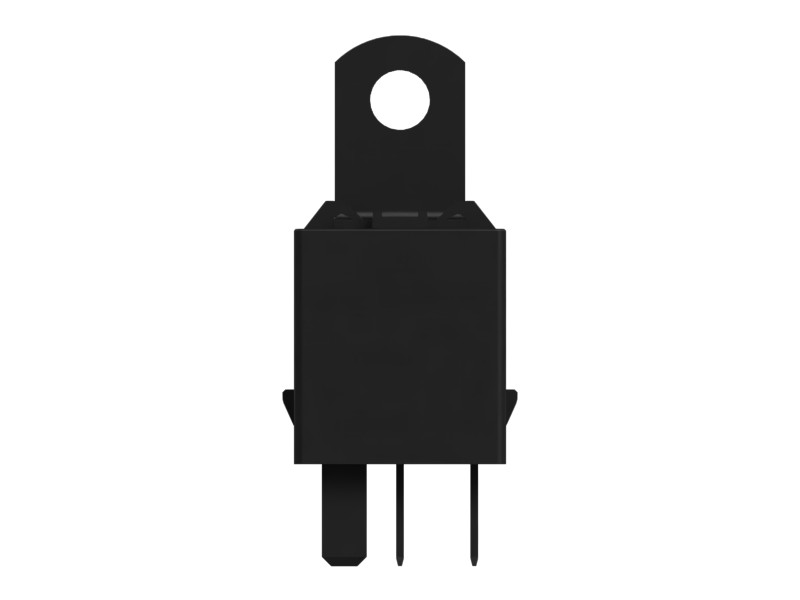

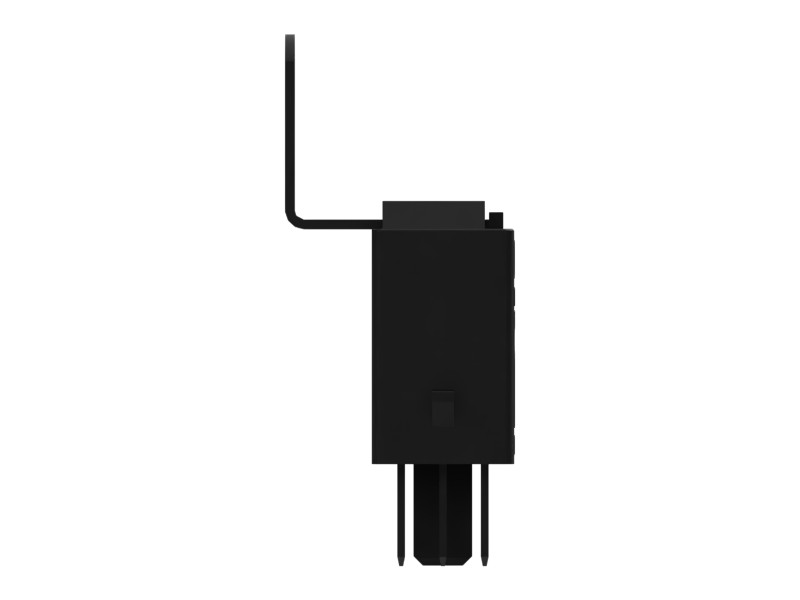

149-5050 24 Volt Smart Boom Relay
Description: Cat® 24VDC 5-Pin Mini Relay Letter
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
:
When the Cat relay is energized, it activates the electromagnet. The electromagnet closes the open contacts to activate the circuit. Meets your quality expectations in rugged work environments.
Features
- Rated Voltage: 24 V DC•
Rated Load: 20 A (continuous), 35 A (1 minutes)
- 5 with
blade terminal connections• Fast change speed
- Low thermal conductivity
- Highly durable
Use of:
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Length | 57.3 mm (2.25 in) |
|---|---|
| Width | 25.3 mm (0.99 in) |
| Height | 24.65 mm (0.97 in) |
Compatible Equipment
- Generator Sets: C7.1
- Motor Graders: 316F
- Wheel Excavators: M320, M315, M315GC, M322D, M313D, M317D2, M315D, M315D2, M320D2
- Mini Excavators: 305.5, 307C, 307D, 306
- Excavators: 313, 313 GC, 316 GC, 374, 330D L, 340, 352, 336D2 L, 315 GC, 336D2 GC, 395, 315, 313 GX, 312 GC, 320 GC, 320, 320D3, 326, 336 GC, 336, 349, 333 GC, 326 GC, 330 GC, 333, 323, 330GC, 323GC, 345 GC, 325, 335, 330C L, 325C, 325D L, 336F LN, 325D, 312C L, 312D, 336E, 320D FM, 324D L, 320C, 336E L, 315C, 320D L, 323D2 L, 330D2, 320B, 312D L, 330D, 324D, 336F, 350, 323 GC, 320D3 GC, 323D L, 350MHPU, 312 GX, 316 GX, 336D L, 311D LRR, 320D2 L, 328D LCR, 315D L, 325B L, 329D L, 320D RR, 312C, 330C, 345D L, 329E L, 314D CR, 336E LN, 313F L, 330D2 L, 325C L, 320E, 314C, 330B, 336F L, 323D, 326GC, 320C L, 336E LH, 336F L XE, 314D LCR, 325B, 311B, 320D GC, 345B, 365C, 385C L, 365C L, 349D L, 385C, 365B, 345C L, 345C, 385B, 390F, 352F, 374F L, 385C FS, 390D, 350 L, 320D2 GC, 311C, 315F LCR, 336D2 XE, 329E, 312F, M325D L MH, 365B L, 3101, 345D, 349E L VG, 340D2 L, 349E, 349E L, 336D2, 330, 320D, 320D2, 326D2 L, 326D2, 336D, 329D, 329D2 L, 329D2, 308D, 349D2, 349D2 L, 390D L, 390F L, 374F, 374D L, 349D
- Wheel Loaders: 966 GC
