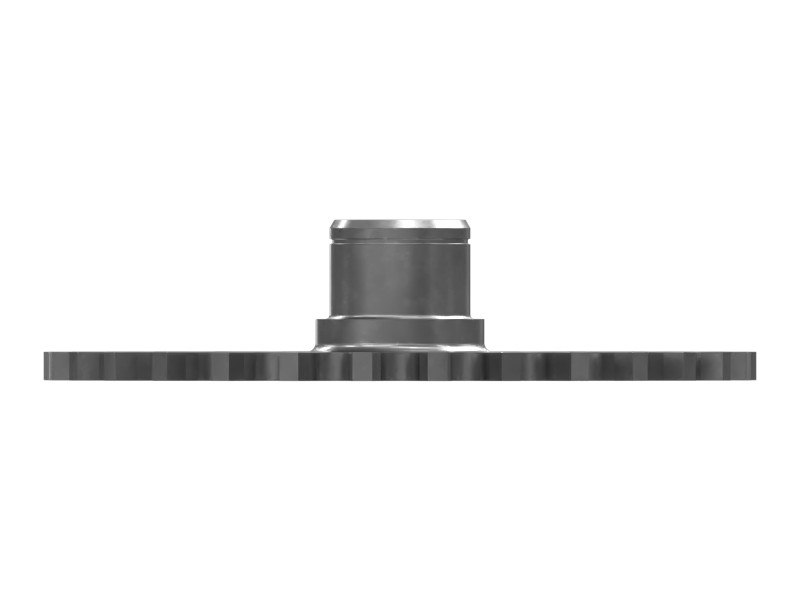

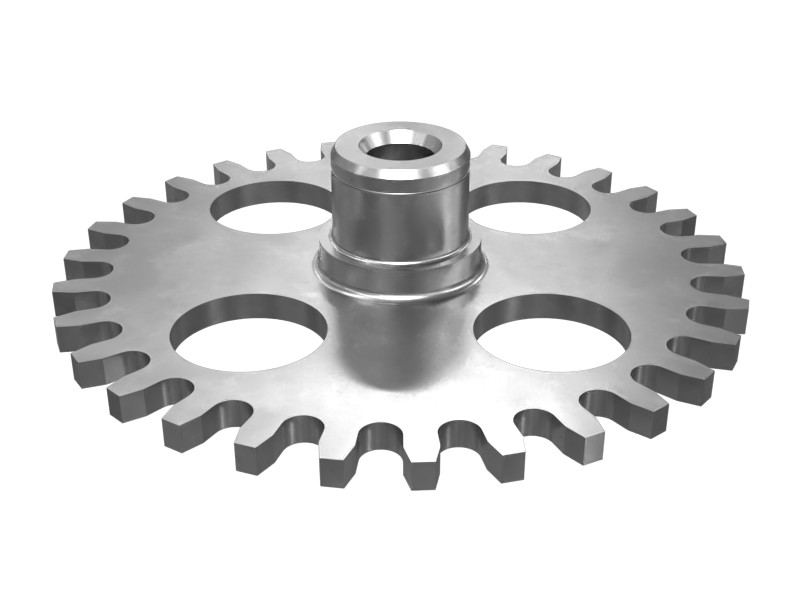

148-1507 12.09 mm Sensor Rotor
Cat® Spur Gear Sensor Rotor for All Powertrain Components to Withstand Wear as a Whole
Description
Sensor rotor used with the speed sensor on the transmission of Cat machines.
Features
- Material: Steel
- Spur Gear Teeth: 30
- Number of Internal Spline Teeth: 31
- Cat gears are manufactured from carefully selected high-quality materials in strict accordance with specifications matched to the loads used in Cat machines. They are made using special heat treatment processes (in some cases proprietary), including case carburizing, nitriding, and induction hardening. Cat gears have the highest power density in the industry (the power a gear can transmit relative to its size) and are designed with reuse in mind. As a result, they are more durable and can lower the overall operating cost of the machine.
Applications
Cat gears are built for specific applications to ensure that all power train parts work together as a system and wear together. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Low Alloy Steel |
|---|---|
| Material Description | Steel |
| Outside Diameter | 152.29 mm (5.995 in) |
| Height | 34.22 mm (1.347 in) |
Compatible Equipment
- Track Loaders: 826H
- Dozers: D10R
- Excavators: 3516E, 657G, 637G, 621G, 621H, 621K
- Wheel Loaders: 980H
- Off-Highway Trucks: 777, 793D, 789, 777E, 789D, 777D, 773F
