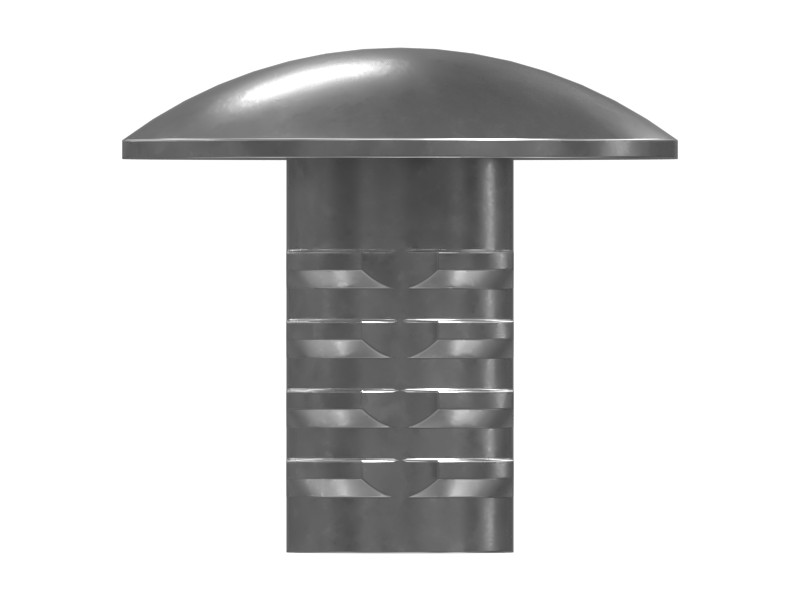

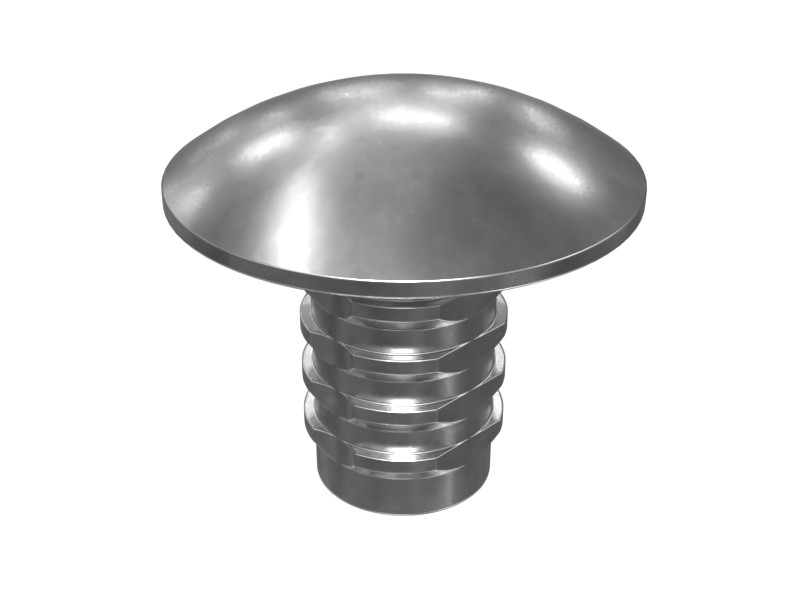

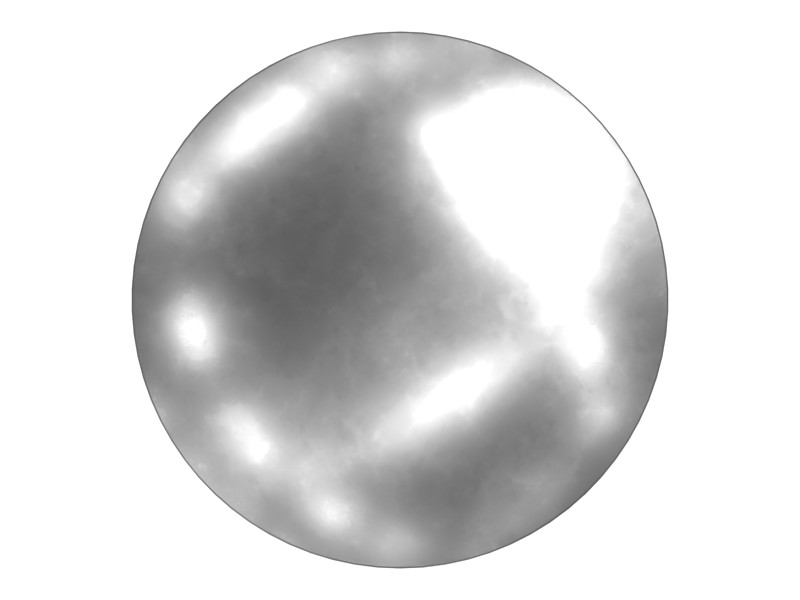

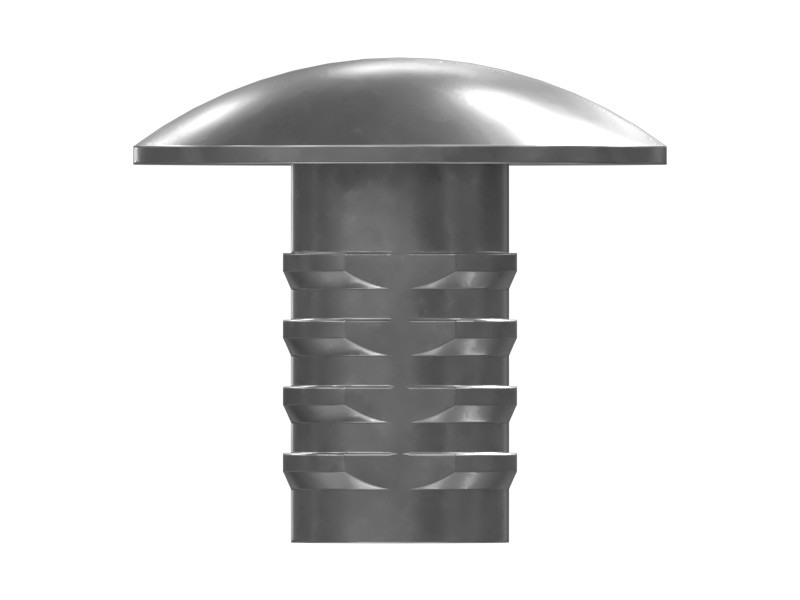

Description
Cat plugs are smooth or threaded discs or cylinders used to seal hoses and ports on engine blocks, oil pans, and housings. Plugs are commonly used as shipping plugs or drain plugs.
Features
- Fluid conveyance system component
- Meets or exceeds industry-standard part performance, providing leak-free performance
- Press-fit and expansion configurations are available in multiple sizes.
Applications
- A properly fitted plug contains or blocks fluid flow and withstands pressure. It is commonly used to permanently seal holes required for manufacturing or assembling the internal components of cylinder and valve bodies and other fluid system components.
- Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Polyethylene Plastic |
|---|---|
| Outside Diameter | 5.5 mm (0.217 in) |
| Inside Diameter | 3.6 mm (0.142 in) |
| Head Diameter | 12.0 mm (0.472 in) |
| Head Length | 2.4 mm (0.094 in) |
| Rod Diameter | 4.9 mm (0.193 in) |
| Rod Length | 8.5 mm (0.335 in) |
| Overall Length | 10.9 mm (0.429 in) |
Compatible Equipment
- Motor Graders: 316F
- Generator Sets: C7.1, 3512B
- Wheel Excavators: M315, M320, M317D2, M315D2, M320D2
- Dozers: D6N, D5N
- Mini Excavators: 307B, 307C, 307D
- Excavators: 330D L, 313, 374, 349F L, 320D2 GC, 336F L, 320C, 312D2, 336D L, 323D2 L, 330D, 320D FM, 312D2 GC, 330D2 L, 315D L, 325D, 311C, 320D RR, 336E L, 320D2 L, 313D2 GC, 328D LCR, 312D, 312F, 320D GC, 336D2 L, 329D L, 329E, 313D2, 312D2 L, 324D L, 318D2 L, 336F L XE, 330C, 318D2, 352, 320D L, 311B, 312D L, 312E, 336F LN, 315C, 311D LRR, 323D L, 320C L, 320E, 326D L, 336D2 GC, 325D L, 329E L, 330D2, 313D, 325C L, 330C L, 325C, 326, 395, 349, 320, 336, 323, 336 GC, 350, 340, 325, 320B, 336E, 313F LGC, 318D L, 336E LH, 313F L, 336F, 352F, 349D L, 349E L, 345D, 374F L, 349E, 345C, 390F, 349E L VG, 6015B, 345D L, 340D2 L, 340D L, 6015, 385C L, 385C, 365C, 315, 312E L, 323D2, 330B, 325B L, 313D2-GC, 324D, 335F LCR, 320D3, 325B, 336D2 XE, 312C L, 336E LN, 312C, 323D, 336E H, 320D, 336D, 320D2, 336D2, 329D2, 330, 326D2 L, 329D, 374F, 349D2, 349D2 L, 390F L, 349D, 326D2, 329D2 L
- Wheel Loaders: M314
- Skid Steer Loaders: 313D2 LGP
