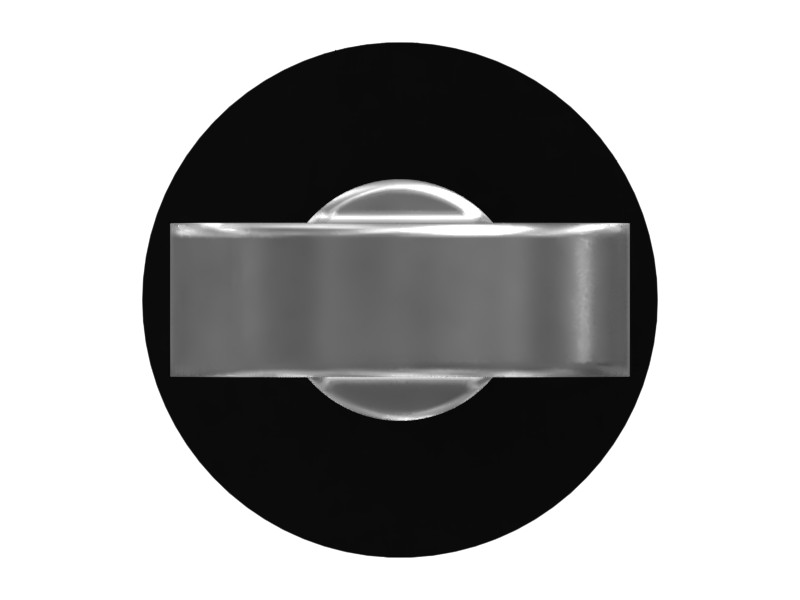

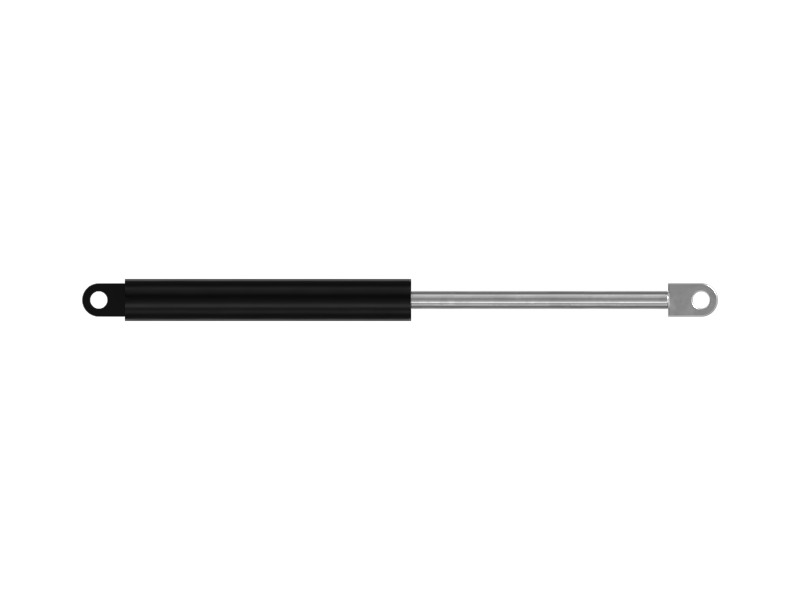

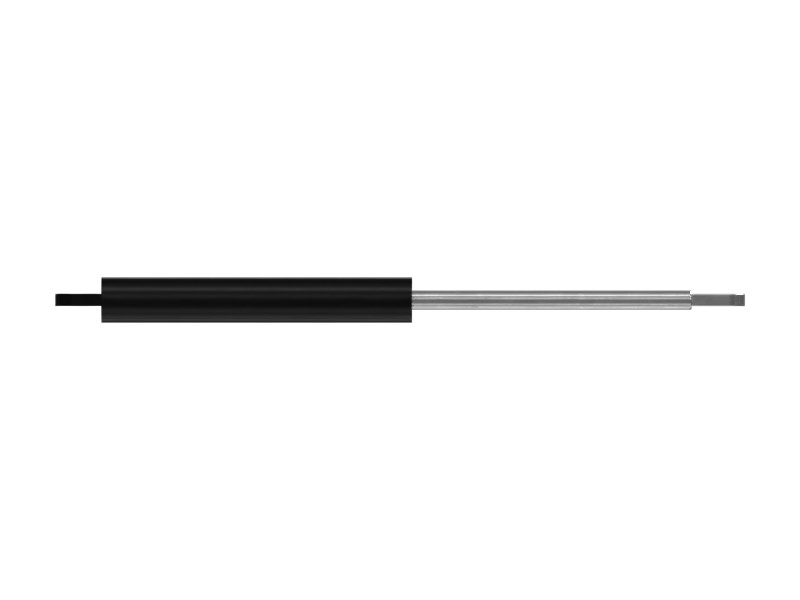

164-1328 275 mm Extended Length Compression Gas Spring
Cat® Compression Gas Spring, 400 N Force Rating, for Window Glass
Description
The gas spring assembly contains compressed gas in a cylinder and uses a piston to apply force.
Features
Cat® gas spring assemblies reduce release force or fully extend the piston and rod combination.
Applications
Cat gas spring assemblies are commonly used in lift-assist applications such as opening windows, doors, covers and hatches.
Specifications
| Material | Not Specified |
|---|---|
| Overall Length | 275 mm (10.83 in) |
| Length | 275 (Extended); 175 (Compressed) mm (10.828 (Extended); 6.890 (Compressed) in) |
| Overall Diameter | 19 mm (0.75 in) |
| Rod Diameter | 8 mm (0.32 in) |
| Sleeve | 8.1 |
| Operating Temperature | -30°C +80°C |
| Approximate Weight | 0.13 kg (0.28 lb) |
Compatible Equipment
- Excavators: 416E
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
