Description

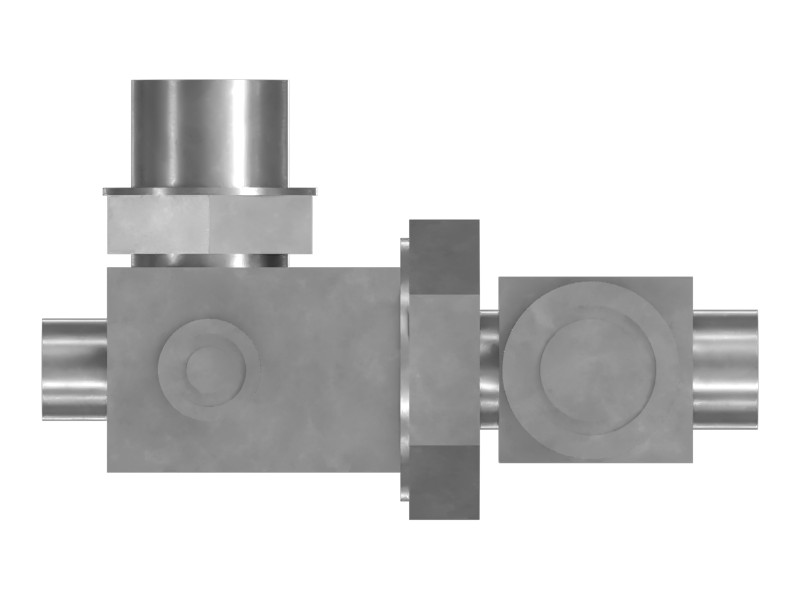

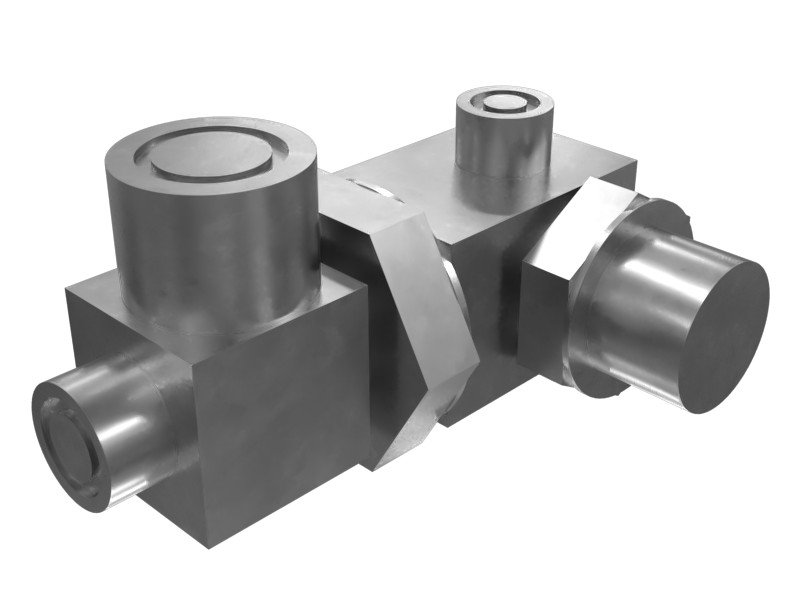

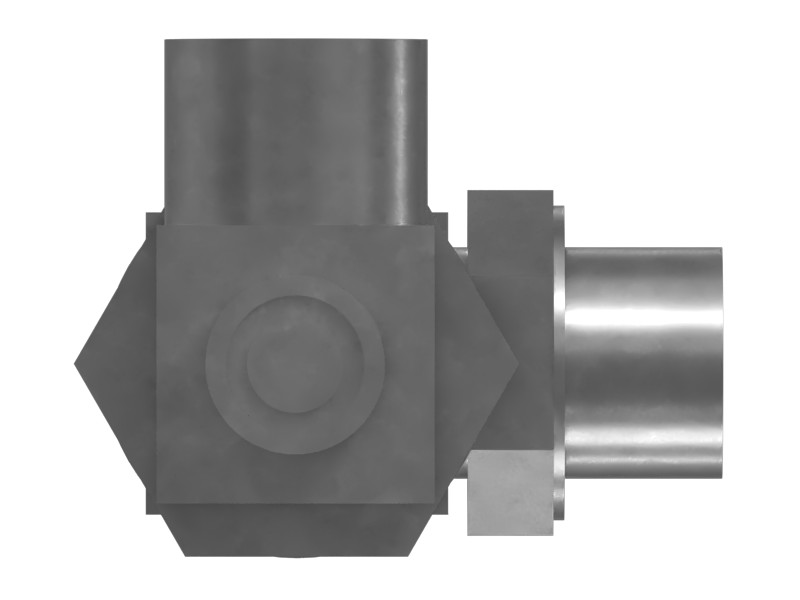

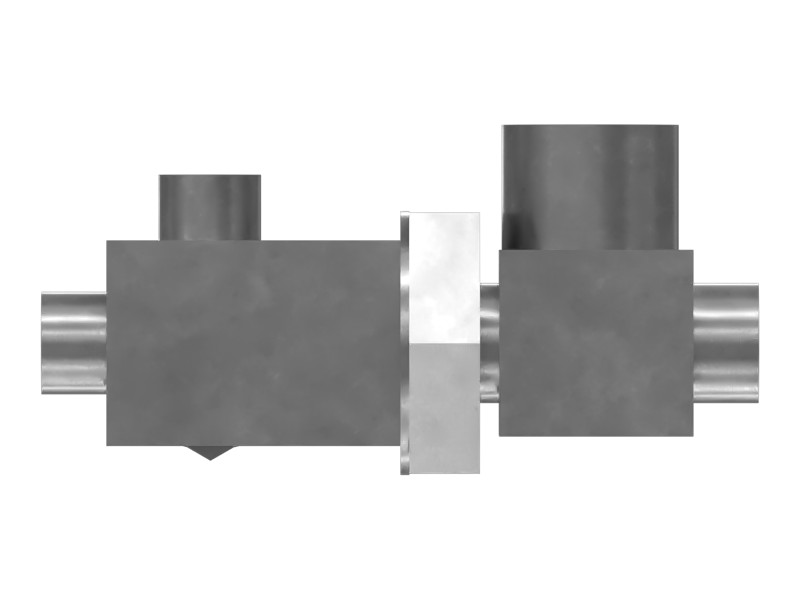

Cat check valves maintain one-way fluid flow and prevent backflow.
Features
- Port 1 (Inlet): Size 12 ORFS (1-3/16-16)
- Port 2 (Inlet): Size 8 ORFS (13/16-16)
- Port 3 (Outlet): Size 12 STOR (1-1/16-12)
- Ports 4 and 5 (Outlet): Size 6 ORFS (11/16-16)
- Opening Pressure: 5 psi (34 kPa)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Length | 122.3 mm (4.81 in) |
|---|
Compatible Equipment
- Off-Highway Trucks: 793D, 773E, 773, 793, 773D
