Description

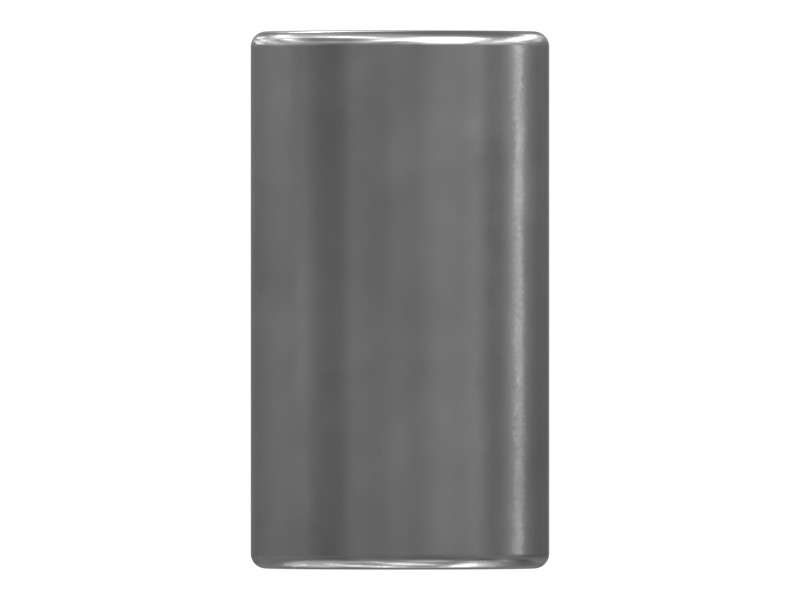

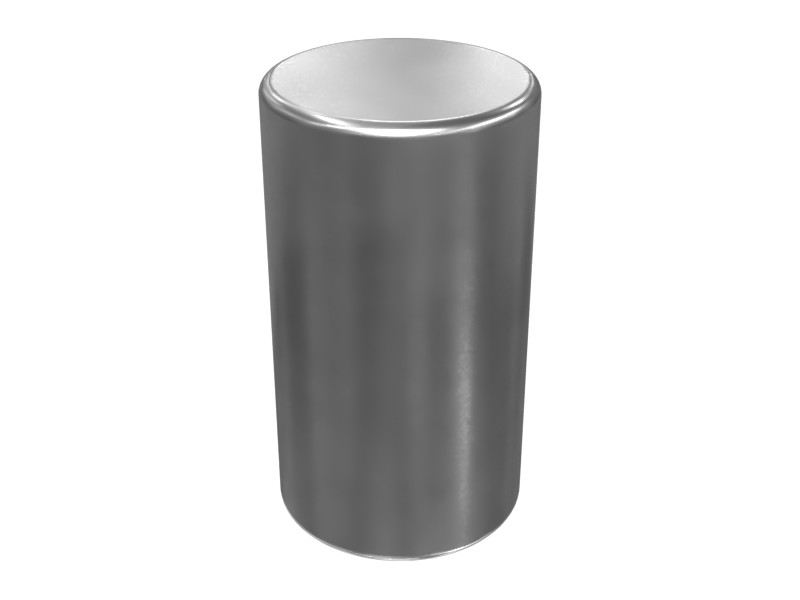

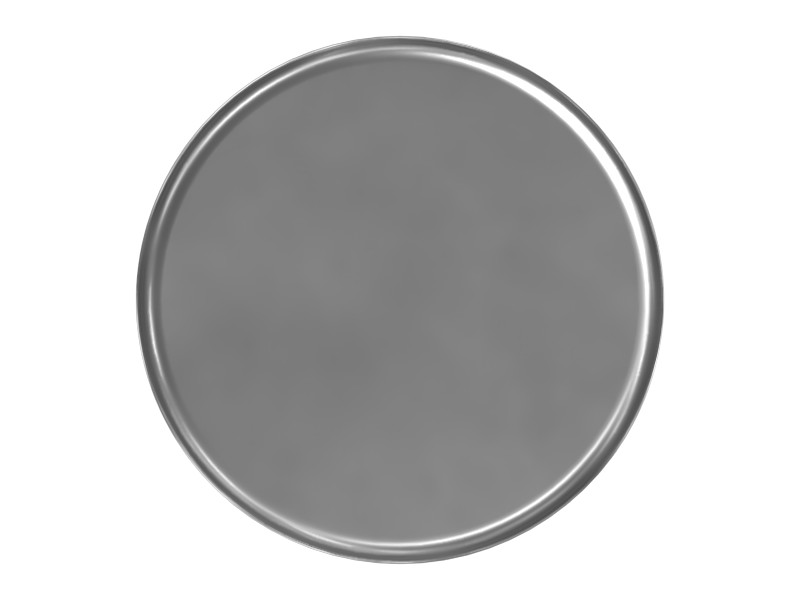

A dowel pin is a cylindrical fastener used to align objects precisely, and dowel pins are used to locate guide rails for adjacent machine parts. The main function of a dowel pin is to ensure accurate alignment between two mating parts, which helps prevent any unwanted movement or misalignment during operation.
Attributes
- Chamfered on both ends with a 0.5 mm crown radius to prevent damage to other components.
- Manufactured to exact specifications for rugged durability, reliable performance and high efficiency.
Applications
Dowel pins are used to align parts of a machine to ensure extremely high precision and accuracy.
Specifications
| Pin Outside Diameter | 10 mm (0.394 in) |
|---|---|
| Pin Type | Solid |
| Pin Length | 18 mm (0.709 in) |
| Material | — |
Compatible Equipment
- Generator Sets: 3512B, C7.1
- Excavators: 320D GC, 324D L, 324D, 329E L, 336E LH, 320C, 325D L, 330D2, 320D L, 325C L, 325C, 325D, 328D LCR, 335F LCR, 336D2 XE, 320D2 L, 323D L, 323D, 320D FM, 329D L, 320E, 320D RR, 329E, 323D2 L, 336F L, 326D L, 330D2 L, 336F, 336F L XE, 320D2 GC, 336F LN, 323D2, 336E H, 320C L, 637K, M325D L MH, 320D2, 320D, 329D, 326D2, 329D2, 329D2 L, 326D2 L
- Wheel Loaders: 972M, 966M
Additional information
| Machine Model | 320C, 320C L, 320D, 320D FM, 320D GC, 320D L, 320D RR, 320D2, 320D2 GC, 320D2 L, 320E, 323D, 323D L, 323D2, 323D2 L, 324D, 324D L, 325C, 325C L, 325D, 325D L, 326D L, 326D2, 326D2 L, 328D LCR, 329D, 329D L, 329D2, 329D2 L, 329E, 329E L, 330D2, 330D2 L, 335F LCR, 336D2 XE, 336E H, 336E LH, 336F, 336F L, 336F L XE, 336F LN, 3512B, 637K, 966M, 972M, C7.1, M325D L MH |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
