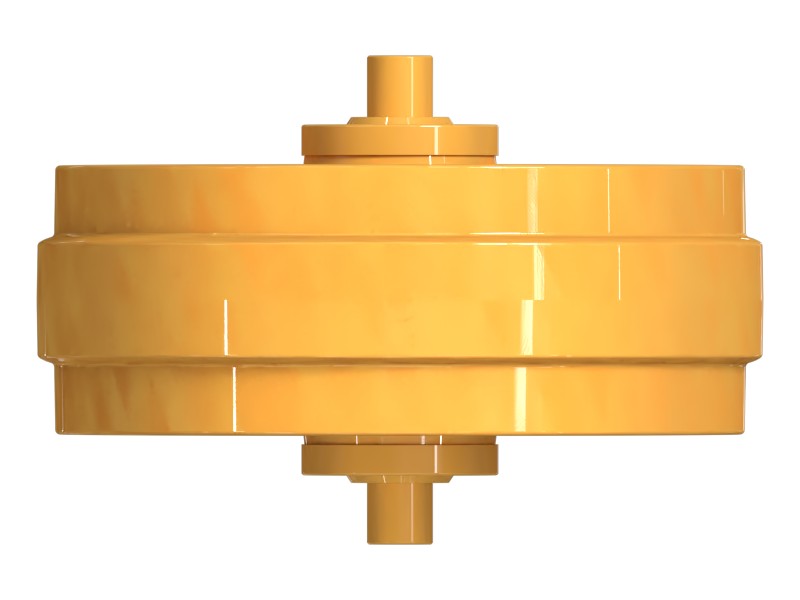

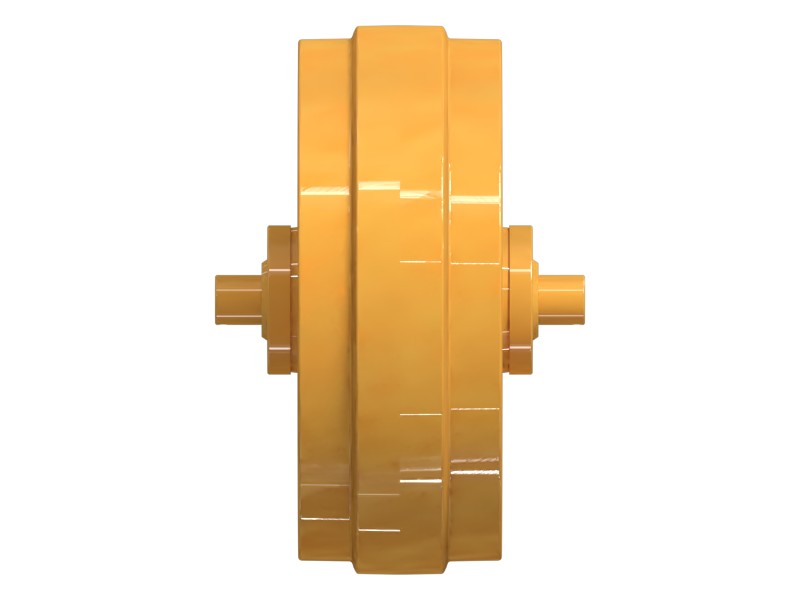

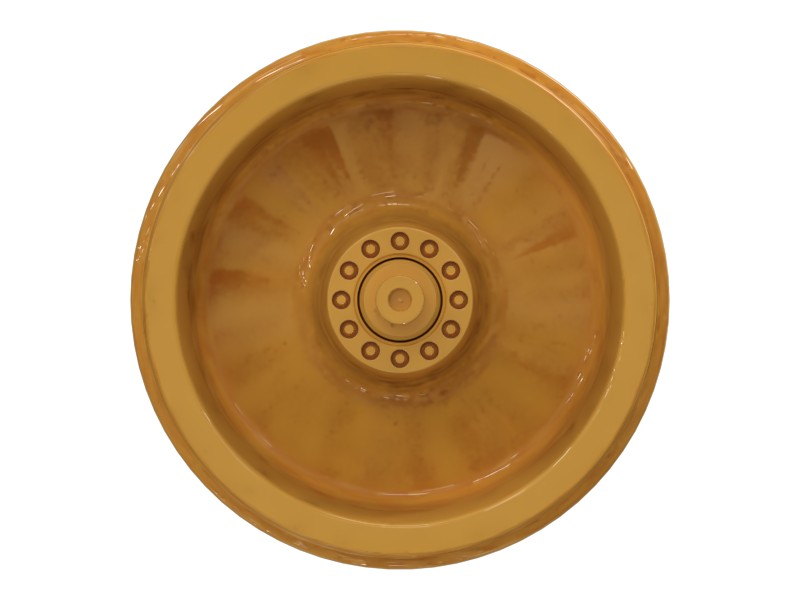

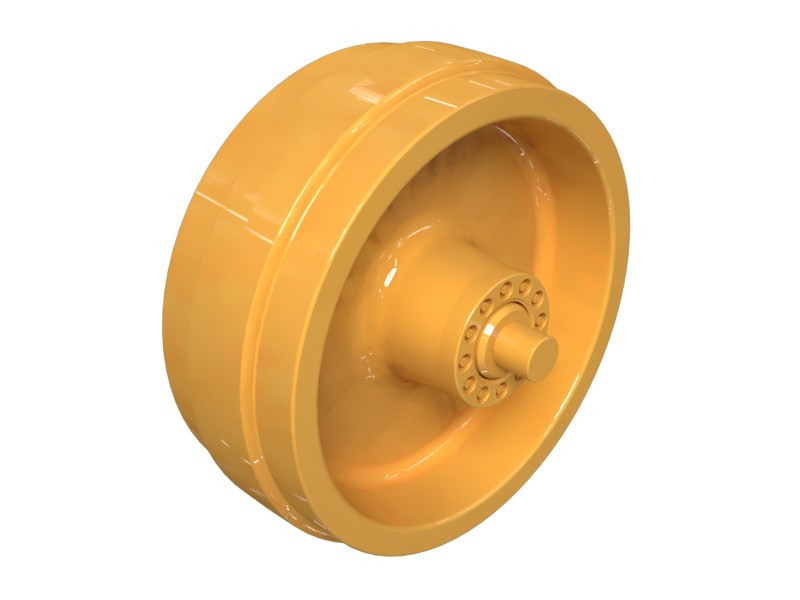

125-3537 Idler Group
Cat® Idler Assembly, Standard Application, 292 mm Rim Width, Interchangeable, 766 mm Tread Diameter, Conventional Tread
Description
Idlers guide the track into and out of the track rollers. They intermittently support the weight of the machine and provide a way to control track slack and tension.
Specifications
| Application | Standard Application |
|---|---|
| Undercarriage System | HD |
| Machine Side | Interchangeable |
| Tread Type | Conventional Tread |
| Shaft Length | 551 mm (21.693 in) |
| Tread Diameter | 766 mm (30.16 in) |
| Center Flange Diameter | 806 mm (31.732 in) |
| Shaft Outside Diameter | 136.28 mm (5.365 in) |
| Idler Rim Width | 292 mm (11.496 in) |
| Center Flange Width | 132.5 mm (5.217 in) |
| Shaft Protrusion Length | 69.42 mm (2.733 in) |
Compatible Equipment
- Dozers: D10, D10R, D10N, D10T2, D10T
