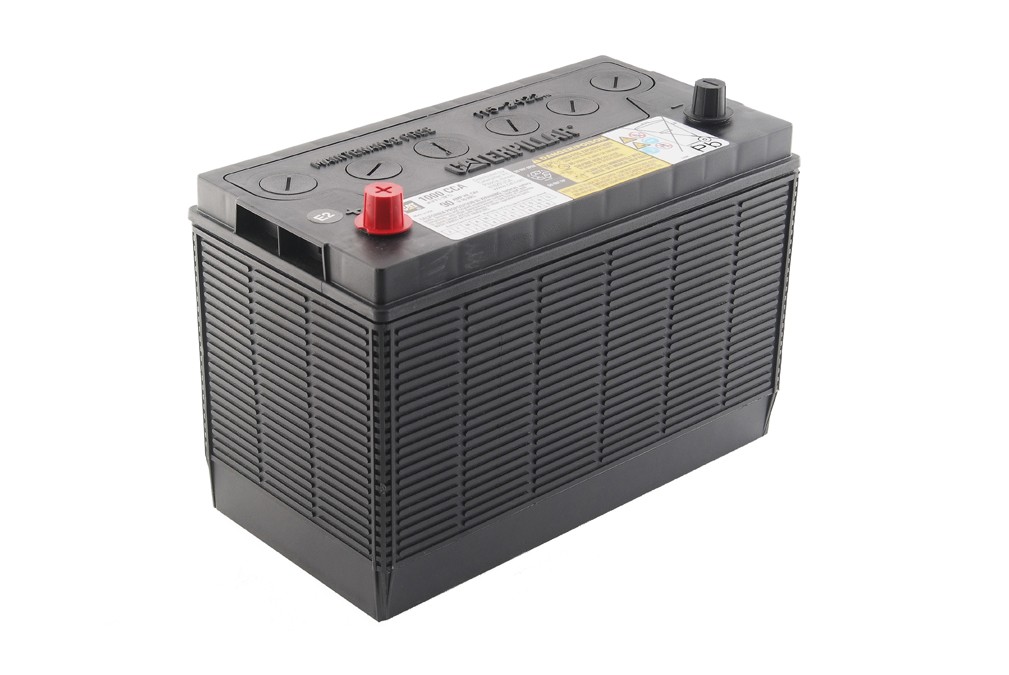

115-2422 12V Heavy-Duty Maintenance-Free Battery
Learn about Cat® part 115-2422 12 Volt heavy-duty maintenance-free wet battery with 1000 cold cranking amps and 31 BCI.
Description
This Cat maintenance-free heavy-duty battery is designed to handle the harshest environments and lasts three times longer than an ordinary battery. It features a vibration-resistant design and can be charged quickly. It provides the starting power needed for a wide range of applications, especially in cold climates. Cat batteries are held to a higher standard than competing brands and undergo 100 different performance tests to help ensure best-in-class power.
Features
- 1000 Cold Cranking Amps
- 170 Minute Reserve Capacity
- 90 Amp-Hour Capacity
- Group 31
- Forged SAE terminals
- Removable cover
- Reinforced housing
- Flame arrestor safety vents
Applications
- Heavy-duty applications
- Electric power
- Machine
- On-highway trucks and buses
Specifications
| Weight – Wet | 27 kg (60 lb) |
|---|---|
| Grid Type | Calcium-Lead Alloy Grid Design |
| Equipment Type | Industrial |
| Application | Oil Resistance |
| Material | Polypropylene Plastic |
| Voltage | 12 Volts |
| Cold Cranking Amps | 1000 CCA |
| Group Specifications | 30H |
| Battery Type | Wet |
| Maintenance Type | Maintenance-Free |
| Terminal | SAE Post |
| Amp-Hour Capacity | 90 20 Hours |
| Reserve Capacity | 170 Minutes |
| Length | 328.4 mm (12.9 in) |
| Width | 171.2 mm (6.7 in) |
| Height | 240.3 (Terminal Top) mm (9.4 (Terminal Top) in) |
Compatible Equipment
- Generator Sets: C3.3DE50E0, C4.4, C7.1, DG30, C9, 3406B, 3406C, C7.1DE200E, C4.4DE88E0, C2.2DE18E3, C3.3DE33E0, 3512B
- Track Loaders: 834H, 990K, 816F, 826K, 826H
- Cold Planers: TH255C, PL83, PL87, PL72
- Compactors: 824K, 816, 834K, 825K, CB-66B, CB-534D, 814, 815, CB-564D, CB16, CB-44B, CB-64B, CB-434D, CS7, CB15, CB13, C-9, CB10
- Engines: C15, C13, C27, C32, C7, C11, C6.6, C18, C12
- Excavators: 329D2, 326D2 L, 326D2, 330, 307.5, 329D2 L, 3456, 329D, 336D2, 320D, 336D, 3126, 330D L, 349F L, 350, 340, 326, 320, 352, 320 GC, 349, 336 GC, 320D L, 328D LCR, 329D L, 336F, 330D2, 336F LN, 336F L, 312E L, 323D L, 336D L, 330D2 L, 336F L XE, 330D, 323D2 L, 324D, 336E L, 336, 336D2 L, 330 GC, 313F LGC, 637K, 621H, 621K, 349E L, 349E, 352F, 326 GC, 345 GC, XQP200, 325, 355, 323, 335, 336E H, 336E, 336E LH, 336D2 XE, 324D L, 320D FM, 336E LN, 313F L, 330GC, 312E, 323D2, 323D, 323 GC, 432, 3508B, 329E L, 323GC, 350MHPU, 329E, 312F
- Asphalt Pavers: AP655F, AP355F, AP300F, AP-600D, AP655F L
- Skid Steer Loaders: 272D3 XE, 272D3, 262D3, 262D, 246D3, 299D3 XE, 246D, 289D3, 3126B, 236
- Motor Graders: 316F
- Dozers: D8, D8T, D7R II, D8R, D6T, D6R II, D6R XL, D3K2 LGP, D6R III, D7E, D5K LGP, D5K2 XL, D1
- Compact Track Loaders: 299D3, 279D3
- Mini Excavators: 308.5, 308, 310
- Wheel Loaders: 928HZ, 928G, 924K, 966H, 972H, 924HZ, 924GZ, 988K, 938K, 950G, 988H, R1300G, R1700G, 910, 972G, 834, 836, 938M, 926M, 986H
- Off-Highway Trucks: 740 GC, 745, 740, 770G, 772G, 725, 735, 745C, 730, 785D, 793F, 785
