Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Hex head bolts/screws provide extremely strong tapping performance.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Locking Feature | None |
|---|---|
| Thread Direction | RH |
| Class or Grade | Cat/ISO 898-1 Class 11.9 |
| Thread Size | M20 mm (0 in) |

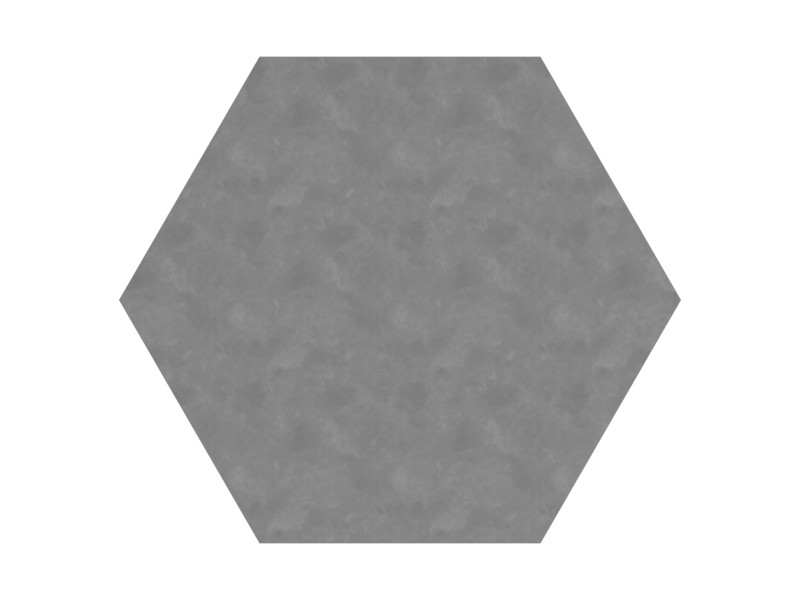

| Hex Size | 30 mm (1.18 in) |
| Thread Size (Diameter × Pitch) | M20X2.5 mm |
| Bolt Length | 60 mm (2.36 in) |

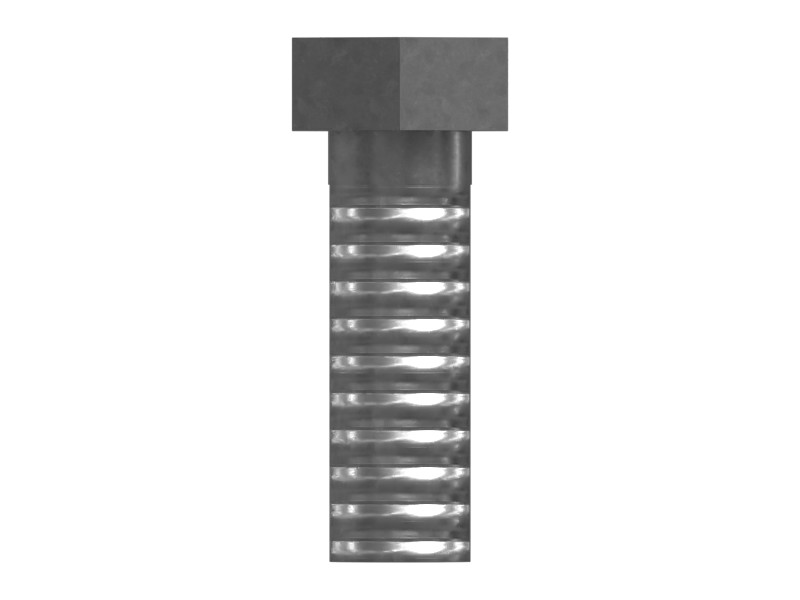

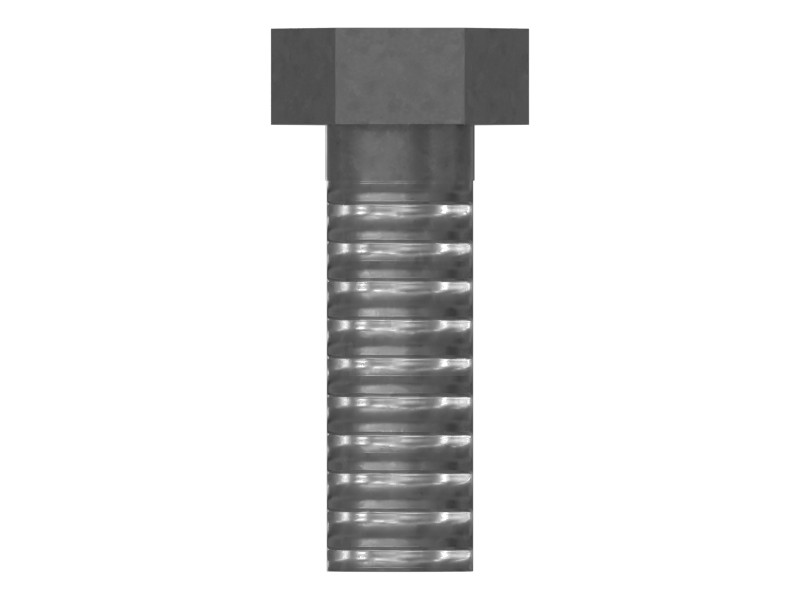

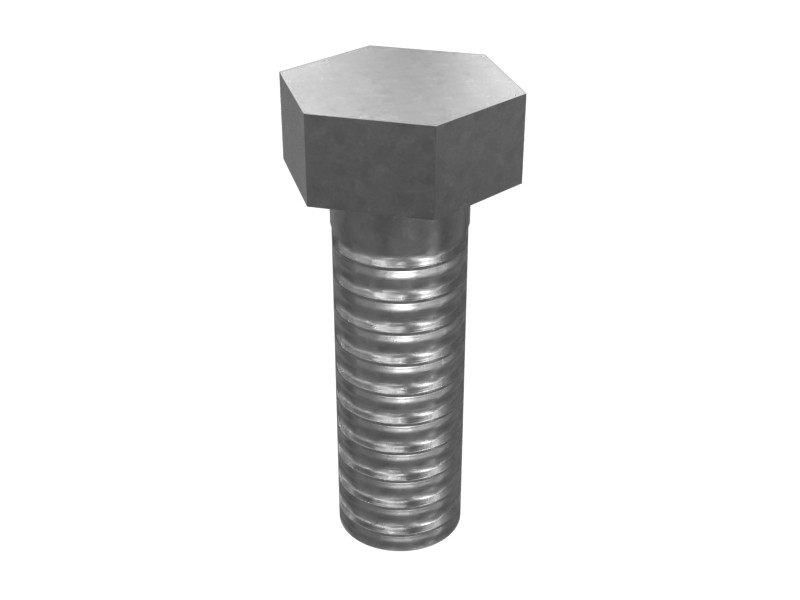

| Bolt Type | Hex Head Bolt |
| Coating | Zinc Flake |
| Handle Length | 8 mm (0.55 in) |
| Material | Alloy Zinc |
Compatible Equipment
- Generator Sets: G3516, C9, C4.4, 3516C, 3512B, G3516C, 3512E, C7.1
- Track Loaders: 963, 993, 990K, 994K, 982, 953K, 963K, 972, 963D, 992, 995, 834H, 953
- Cold Planers: PL87, PM622, PL83, PM620, TH255C, PL72, PL61
- Compactors: 834K, CS78B, CB2.7 GC, CB2.5 GC, CB2.9, CB-36B, CW-16, CB-64B, CB-66B, CB16, CS68B, CC2.7 GC, CS74B, CS79B, CS7, 814, 816, 815, CB2.5, CB2.7, CC-34B, CB-34B, CB10, CB15, CB13
- Engines: C32, C13, C27, C18, C175-16
- Excavators: 320D, 305, 349D, 349D2 L, 349D2, 330, 349F L, 6020B, 6015B, 3516B, 302.7CR, 637K, 3516E, 330 GC, 6040, 349E L, 349E, 120 GC, 621K, 3512C, 395, 432, 428F, 434F2, 3508B, 320D FM, 6015, 329D L, 352, 6060, 326, 345C, 345D L, 305 CR, 3101, 349, 352F, 345D, 349D L, 303.5CR, 303CR, 6030, 336D L, 330GC, 365B
- Asphalt Pavers: AD30, AP655F
- Skid Steer Loaders: 289D3, 299D3 XE, 24, 259D3, 249D3, 262D3, 239D3, 236D3, 242D3, 272D3, 272D3 XE
- Motor Graders: 18, 16, 140 GC, 120, 14M, 14, 16M3, 16M
- Wheel Excavators: MD6200, MD6250, M317D2, MD6310, M315D2, M315
- Dozers: D7, D11T, D8R, D8T, D11, D7E, D10T2, D9T, D6N, D10, D10T, D8, D6T, D9R, D4, D6K2, D9, D6R XL, D6R II, D6R
- Compact Track Loaders: 299D3, 279D3
- Wheel Loaders: 988K, 988H, 950G, 950H, 962G, 950L, 962L, RM500B, R1700K, 980L, M314, 980, 836, 928G, 966, 990H, 834, 950 GC, 950, RM400, 988G, R1700 XE, R2900 XE
- Off-Highway Trucks: 740B, 796 AC, 797F, 793D, 740, 794 AC, 777D, 777E, 793F, 785, 740 GC, 745, 789D, 777, 798 AC, 793, 775G, 789, 7495, 735, 773, 745C
