Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.

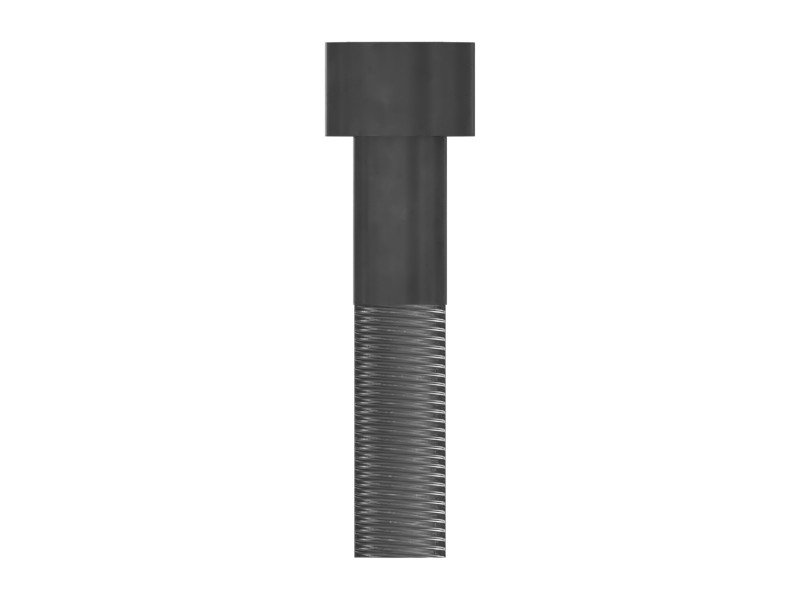

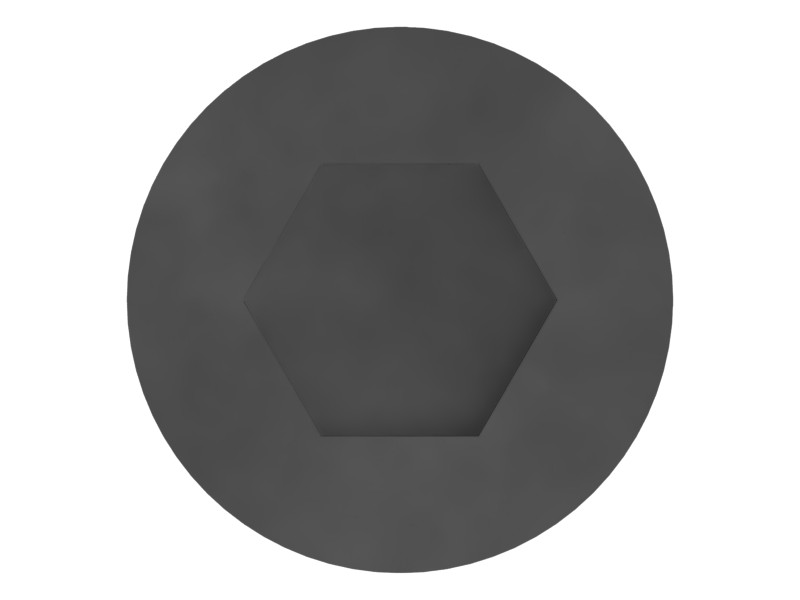

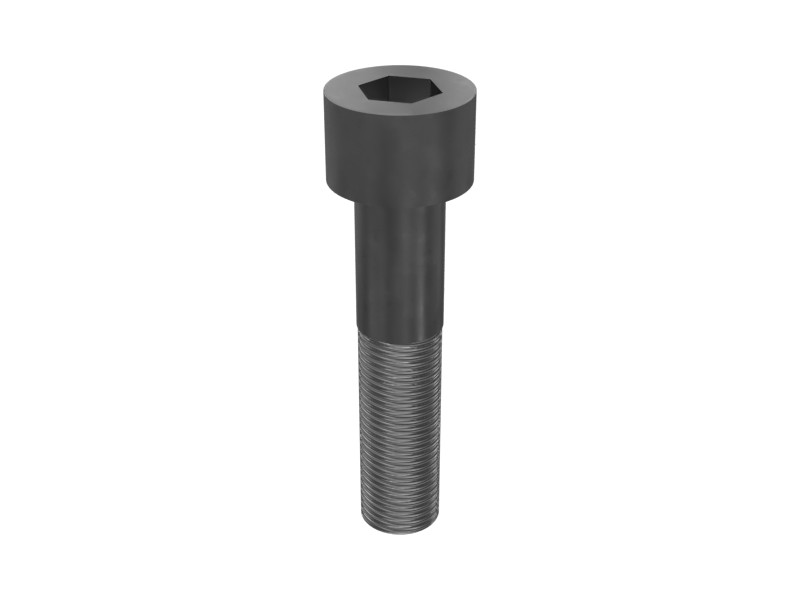

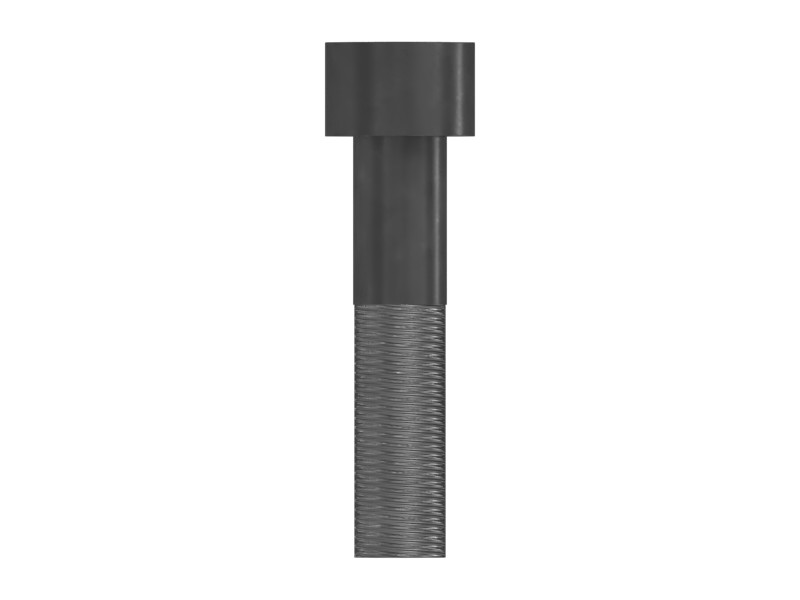

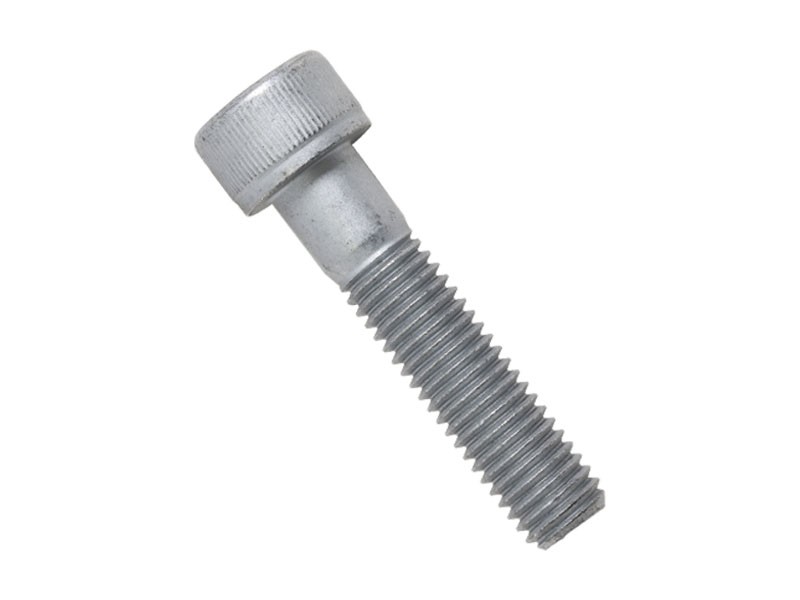

Socket head bolts are used in designs where there is not enough clearance to install hex head bolts and use assembly tools.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Thread Direction | RH |
|---|---|
| Bolt Type | Socket Head |
| Thread Size | M10 mm (0 in) |
| Class or Grade | ISO 898-1 Class 12.9 |
| Material | Steel |
| Coating | Zinc Flake |
| Locking Feature | None |
| Thread Size (Diameter × Pitch) | M10X1.5 mm |
| Bolt Length | 45 mm (1.772 in) |
| Handle Length | 13 mm (0.512 in) |
Compatible Equipment
- Generator Sets: 3406B, 3406C, 3512B
- Track Loaders: 824G, 826H, 826G, 834H
- Cold Planers: SE50 VT, SE60 VT XW, PM622, PM620
- Compactors: CB1.7, CB1.8, CB-14, 816, 815, 814, CB10
- Engines: C175-16
- Excavators: 320D2, 330, 320D, 329D2 L, 326D2, 336D2, 336D, 329D, 326D2 L, 329D2, 307.5, 305, 303.5E2 CR, 313 GC, 330D L, 313, 305E2 CR, 352, 336E L, 355, 345 GC, M325D L MH, SE60 V XW, 323, 335, 330D, 329D L, 320D2 L, 323D L, 320D L, 312C, 324D L, 336F LN, 325D L, 325C, 336F L, 320C, 330D2, 336D L, 320 GC, 324D, 320D FM, 336F, 326D L, 323D2 L, 320D3, 325D, 336D2 L, 330C L, 336E, 320, 320D RR, 320D2 GC, 330D2 L, 336E LN, 325, 315, 315 GC, 328D LCR, 621K, 302.7CR, 349, 330C, 330 GC, 325C L, 320D GC, 305 CR, 323D2, 301.8, 340D L, 340D2 L, 350, 350MHPU, 323GC, 303.5CR, 303CR, 326, 333, 320 GX, 312C L, 320C L, 336D2 GC, 330GC, 301.6, 323D
- Asphalt Pavers: AP655F, AD30, AP655F L
- Motor Graders: 16M3, 18, 16, 14, 349 GC
- Wheel Excavators: M315, M322D, M320D2, M317D2, M315D2, M315D, M313D, M315GC, M320
- Mini Excavators: 308, 301.7CR, 308.5, 306, 301.5, 302CR, 303.5E, 305.5E, 310, 307, 307B, 306.5
- Wheel Loaders: 980H, 986H, 988H, 988G, 924K, M314, 950H, 972G, 950G, 906K, 980G, 962G, 972H, 966H, 926M
- Off-Highway Trucks: 796 AC, 797F, 794 AC, 793F, 798 AC
