Description

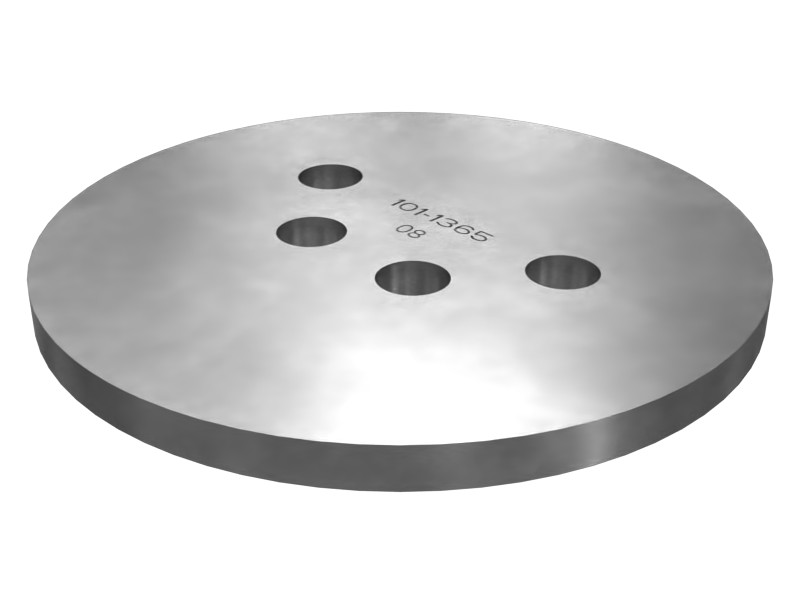

The front balancer thrust plate is an integral component of the engine group that helps support and control the movement of the front balancer within the engine. The primary function of the thrust plate is to provide support and control the movement of the front balancer. It is held in place with bolts or fasteners that pass through mounting holes in the plate and attach to the engine cylinder block. It helps keep the balancer properly aligned and stable, preventing excessive vibration or misalignment that could affect engine performance.
Features
- Made of rugged, durable and heat-resistant materials.
- Designed to withstand engine operating conditions and forces.
Applications
The thrust washer is located between the front balancer and the engine block and is used to distribute the force exerted by the front balancer evenly across the engine block.
Specifications
| Hole Size | 10.5 mm (0.41 in) |
|---|---|
| Outside Diameter | 106 mm (4.17 in) |
| Thickness | 6.35 mm (0.25 in) |
| Weight | 0.42 kg (0.93 lb) |
Compatible Equipment
- Generator Sets: 3516C, 3512E, 3512B, G3516, G3516C, C4.4
- Track Loaders: 994K, 995, 990K
- Wheel Excavators: MD6250, MD6310
- Engines: C27, C32
- Dozers: D11N, D11R, D6T
- Excavators: 3516B, 3512C, 6040, 6020B, 3508B, 3516E, 6030, 6060
- Off-Highway Trucks: 785D, 789D, 777D, 789, 785, 777, 793D, 793
Additional information
| Machine Model | 3508B, 3512B, 3512C, 3512E, 3516B, 3516C, 3516E, 6020B, 6030, 6040, 6060, 777, 777D, 785, 785D, 789, 789D, 793, 793D, 990K, 994K, 995, C27, C32, C4.4, D11N, D11R, D6T, G3516, G3516C, MD6250, MD6310 |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Track Loaders, Dozers, Off-Highway Trucks, Engines, Generator Sets |
| Part Source | Genuine OEM |
