Description
Cat bolts form a matched system with mating hardened washers and nuts to produce consistent, high clamping force
Specifications
| Class or Grade | SAE J429 Grade 8 (150 ksi) |
|---|---|
| Thread Size (Diameter × Pitch) | 7/16×14 mm |
| Thread Size | 0.4375 mm (0.017 in) |
| Locking Feature | None |
| Thread Direction | RH |
| Bolt Length | 31.75 mm (1 1/4 in) |

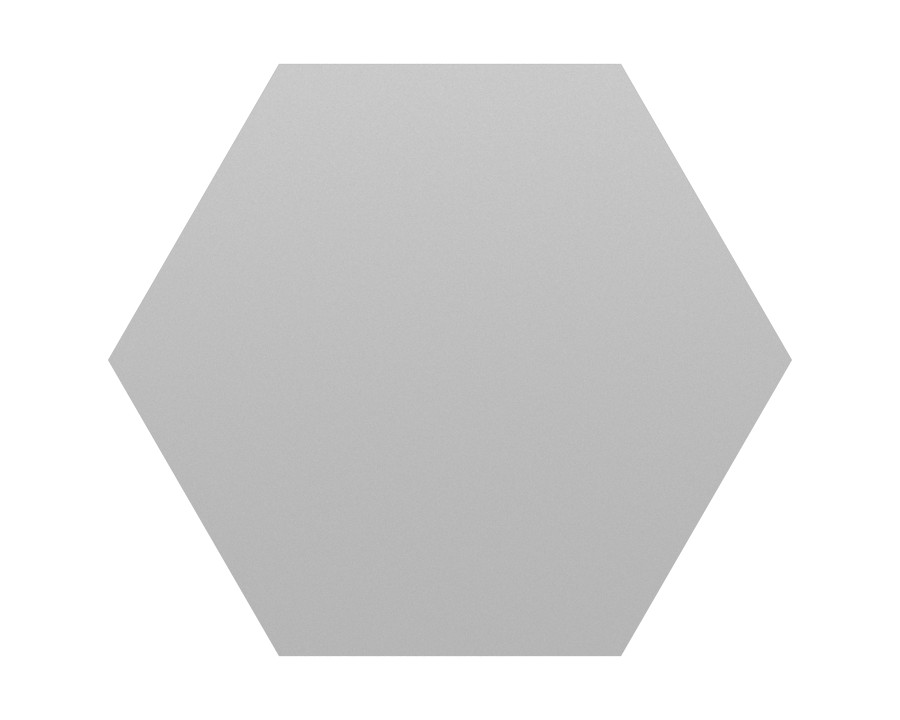

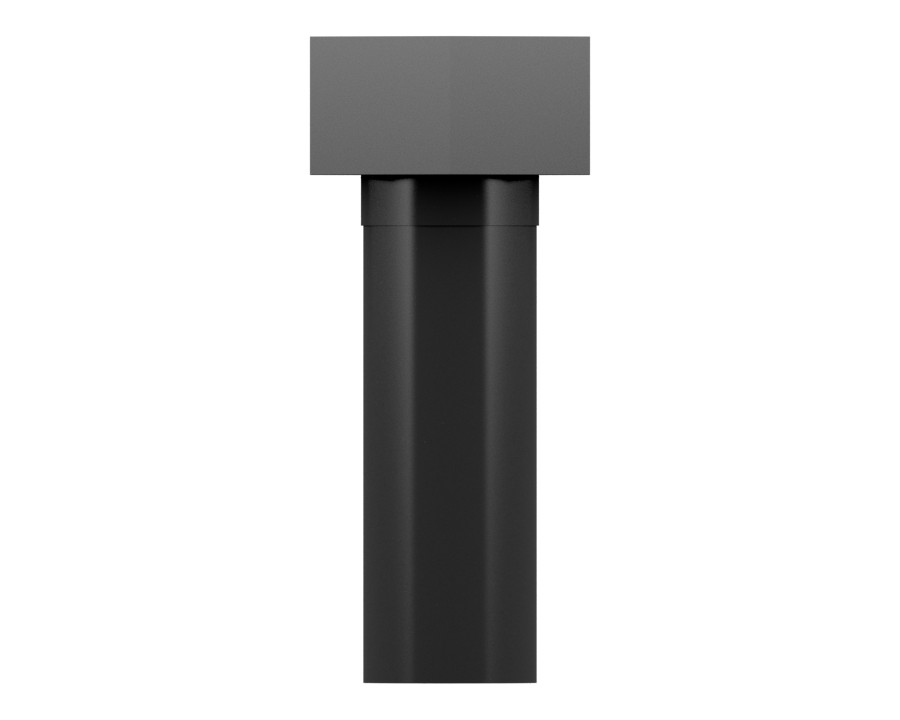

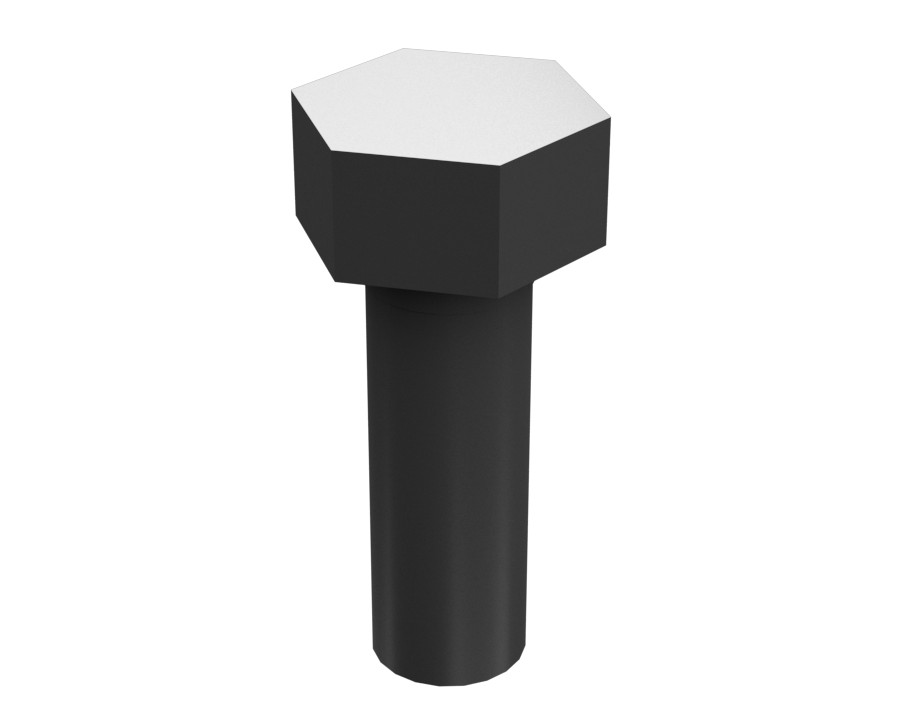

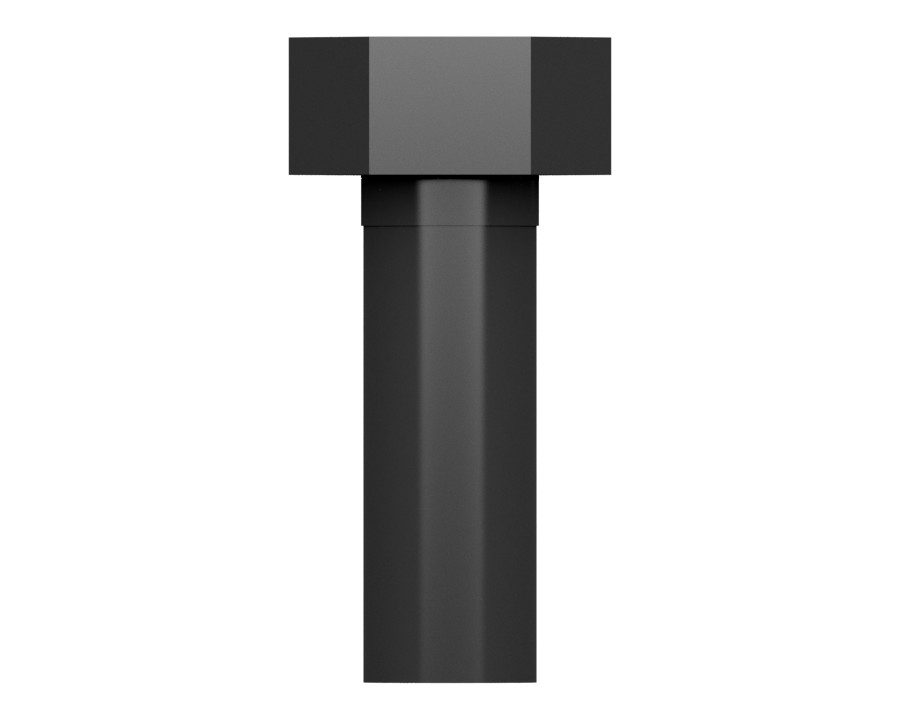

| Bolt Type | Hex Head Bolt |
| Coating | Zinc Phosphate and Oil |
| Handle Length | 3.175 mm (0.13 in) |
| Material | Steel |
Compatible Equipment
- Generator Sets: 3512B, 3512E, 3516C, 3406C, C9, G3516, C4.4, 3406B
- Track Loaders: 953, 992, 824C, 824G
- Compactors: 815, 814, C9.3B, C-15, C-9
- Engines: C27, C15, C32, C11, C7, C13, C18, C12
- Excavators: 3456, 3126, 3516E, 3508B, 3516B, 3512C, 637E, 637G, 6040
- Asphalt Pavers: AD45
- Motor Graders: 16, 120
- Dozers: D11T, D11R, D10, D10N, D10T, D11N, D10R, D7H, D7R, D8L, D7G, D9L, D9N, D8N
- Wheel Loaders: 950, 834, 910, 980, 980G, 992C
- Off-Highway Trucks: 773, 773F, 789, 777, 777D, 785
Additional information
| Machine Model | 120, 16, 3126, 3406B, 3406C, 3456, 3508B, 3512B, 3512C, 3512E, 3516B, 3516C, 3516E, 6040, 637E, 637G, 773, 773F, 777, 777D, 785, 789, 814, 815, 824C, 824G, 834, 910, 950, 953, 980, 980G, 992, 992C, AD45, C-15, C-9, C11, C12, C13, C15, C18, C27, C32, C4.4, C7, C9, C9.3B, D10, D10N, D10R, D10T, D11N, D11R, D11T, D7G, D7H, D7R, D8L, D8N, D9L, D9N, G3516 |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Asphalt Pavers, Engines, Generator Sets |
| Part Source | Genuine OEM |
