Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating washers and nuts to produce consistent, high clamping force. You can rely on Cat fasteners to help you build, maintain or rebuild – for most machine and shop applications around the world.
Specifications

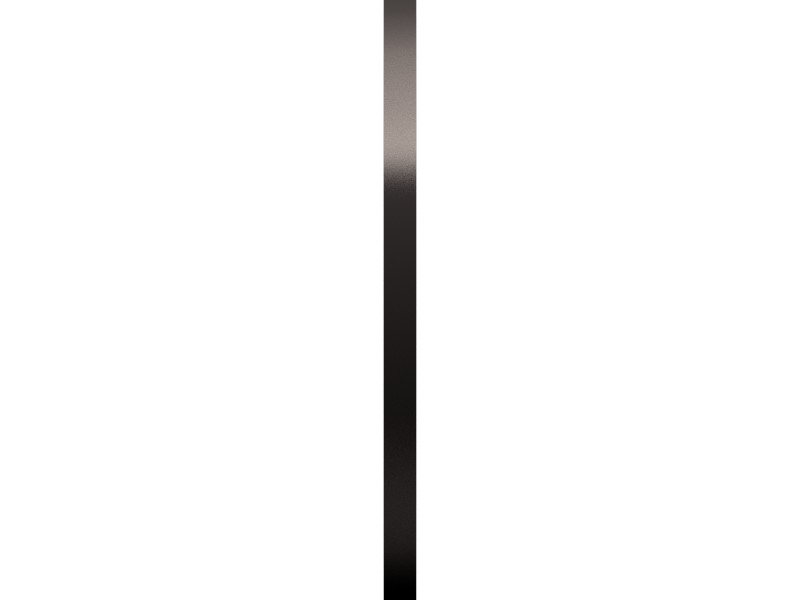

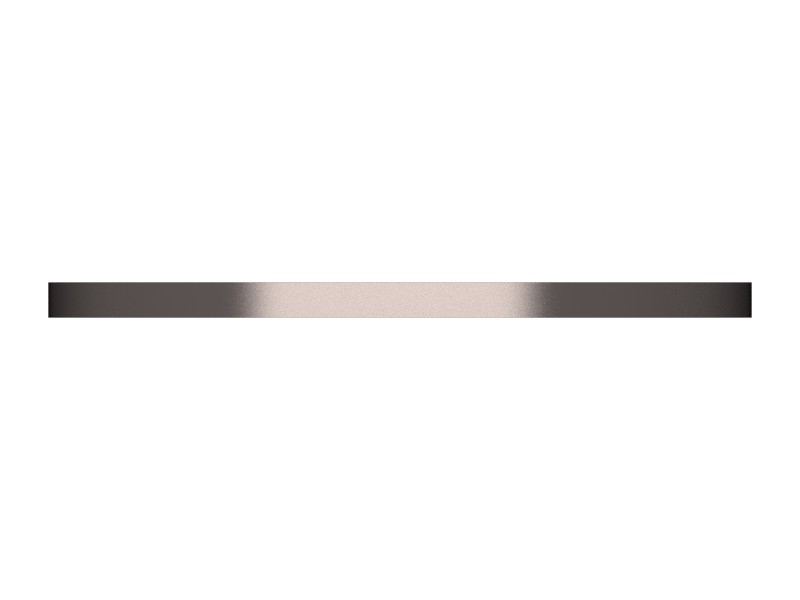

| Gasket Type | Flat Washer |
|---|---|
| Outside Diameter | 24 mm (0.945 in) |
| Inside Diameter | 16.6 mm (0 in) |
| Thickness | 1.2 mm (0.047 in) |
| Coating | None |
| Fits Bolt Size | M16 mm (5/8 in) |
Compatible Equipment
- Track Loaders: 824G, 816F, 826G, 826H
- Wheel Excavators: IT14G
- Engines: C18
- Dozers: D9N, D8L, D9R, D7G, D10N, D10R, D6G2 LGP, D6G, D7G2, D6G2 XL
- Excavators: 416E, 325D, 432, 434F2, 428F, 305
- Wheel Loaders: 950H, 928G, 980G, 972G, 950G, 966F, 966H, 972H, 962G, 980H, 926M, 910, 938M, 988H, 928HZ, 938K, 950 GC, 924K, 990H
- Off-Highway Trucks: 7495
Additional information
| Machine Model | 305, 325D, 416E, 428F, 432, 434F2, 7495, 816F, 824G, 826G, 826H, 910, 924K, 926M, 928G, 928HZ, 938K, 938M, 950 GC, 950G, 950H, 962G, 966F, 966H, 972G, 972H, 980G, 980H, 988H, 990H, C18, D10N, D10R, D6G, D6G2 LGP, D6G2 XL, D7G, D7G2, D8L, D9N, D9R, IT14G |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Dozers, Off-Highway Trucks, Engines |
| Part Source | Genuine OEM |
