Hydraulic Cylinder Assemblies

Cat® 306.8 mm Long Hydraulic Cylinder for Actuators

Cat® Cylinder Stroke 90 mm (3.5 in) X 445 mm (17.5 in)

Specifications Material Anti-Sieze Compound Mixed: Metal Hole Diameter 127 mm (5 in) Rod Diameter 63.45 mm (2.5 in) Operating Pressure 19305 kPa (2800 psi) Weight 85.92 kg (189 lb) Compatible Equipment Wheel Loaders: R1700G

Specifications Weight 329 kg (725 lb) Operating Pressure 28000 kPa (4061 psi) Internal Thread 2-3/4", 1/4", 7/16 Compatible Equipment Wheel Loaders: R1700G

Compatible Equipment Excavators: 315 GC, 315

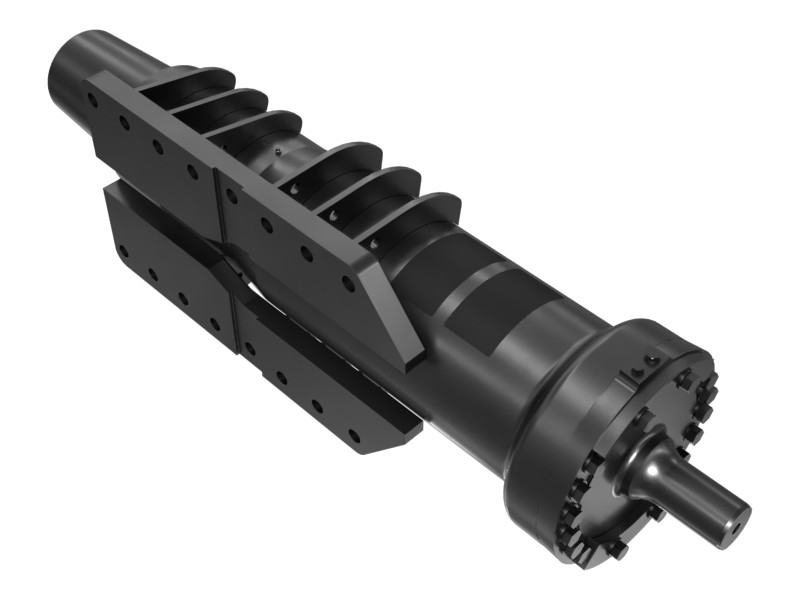

Specifications Material Grease (Lanolin, Silicone) Fluid Weight 665 kg (1466 lb) Hole Diameter 273 mm (10.75 in) Rod Diameter 229 mm (9 in) Capacity 29 L (7.66 gal) Operating Pressure 15600 kPa (2263 psi) Compatible Equipment Off-Highway Trucks: 777D, 777

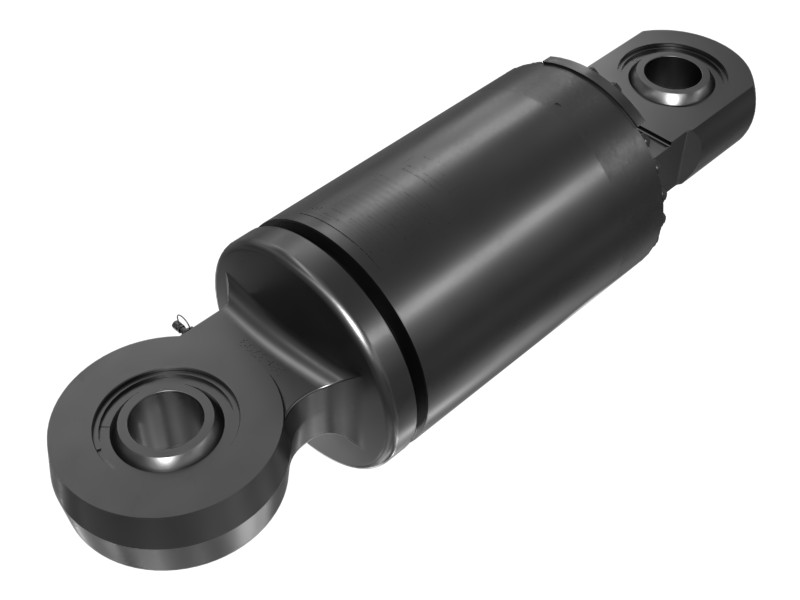

Specifications Weight 270 kg (595 lb) Hole Diameter 267 mm (10.5 in) Rod Diameter 229 mm (9 in) Capacity 16 L (4.23 gal) Operating Pressure 18400 kPa (2669 psi) Compatible Equipment Off-Highway Trucks: 777, 777E, 777D
