Linkage Pins

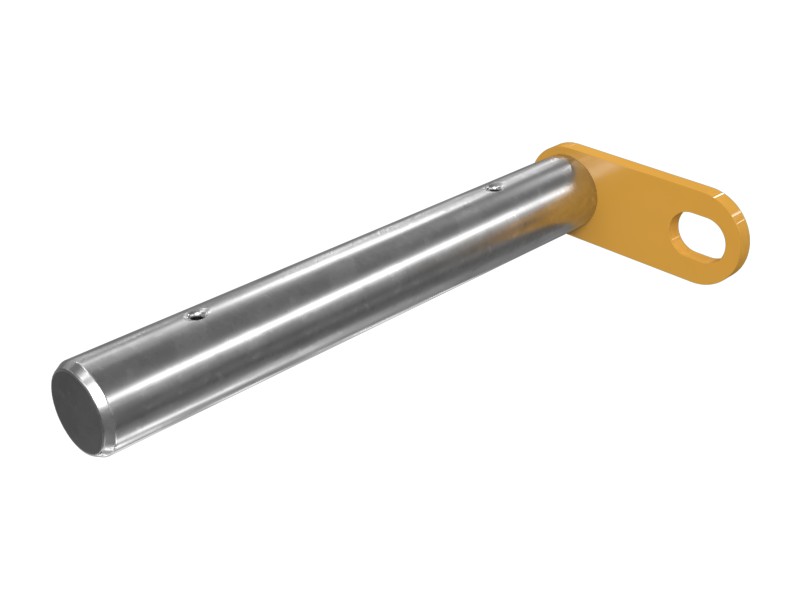

Cat® Flag Pin Group

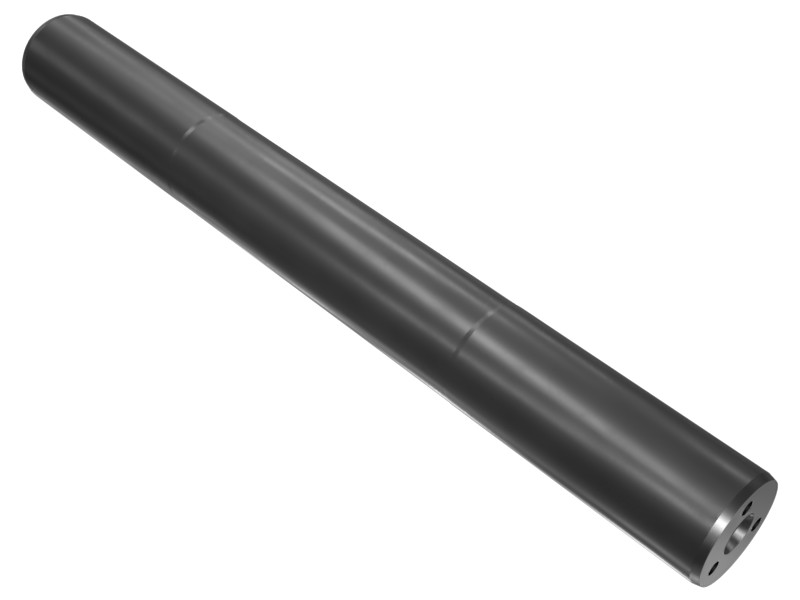

Cat® Link Pin 1.5" Diameter X 6.26" Long

Cat® Link Pin 5.51" Diameter X 17.91" Long

Cat® 99.85 mm OD link pin for circle implements

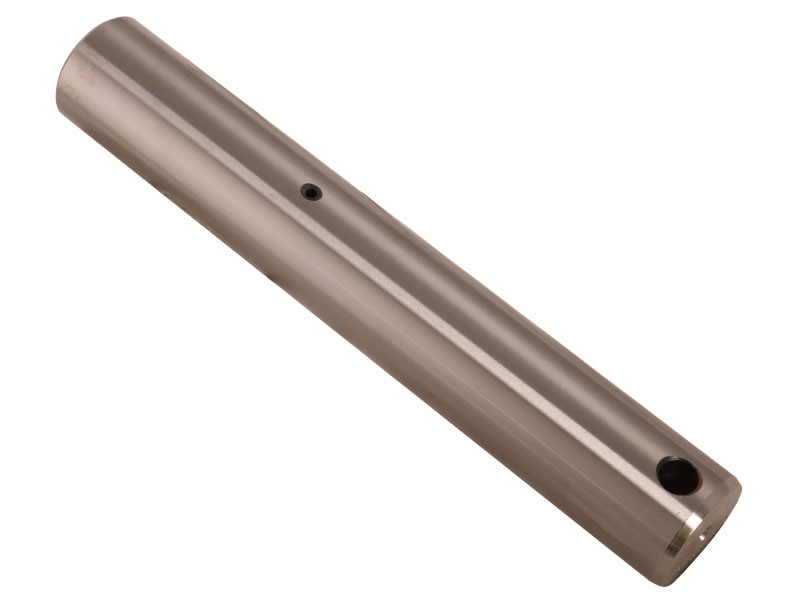

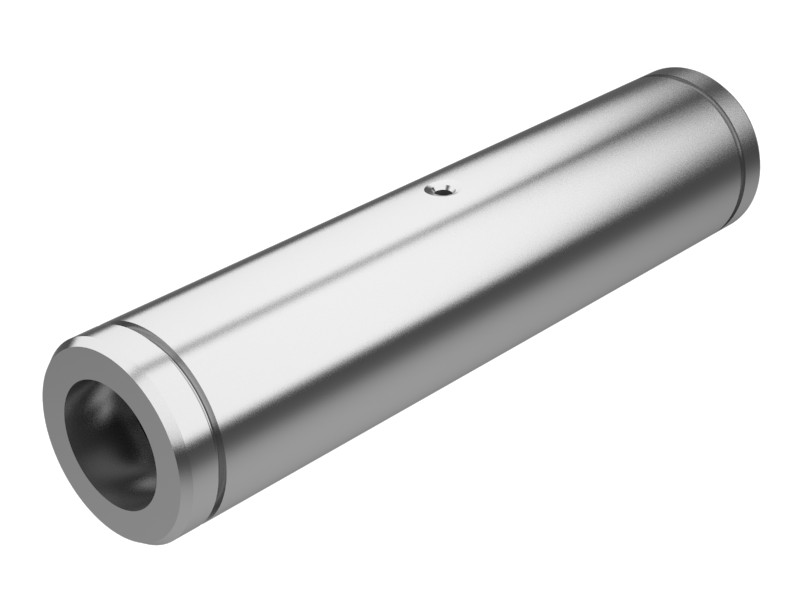

Specifications Outside Diameter 45 mm (1.772 in) Effective Length 270 mm (10.63 in) Internal Grease Passage Hole Yes Hole Diameter 13 mm (0.512 in) Puller Thread No Overall Length 285 mm (11.22 in) Diameter 45 mm (1.772 in) Pin Type Straight Pin Material STEEL Plating No Plating Pin Diameter 45 mm (1.77 in) Length 285…

Cat® Link Pin 4.72" Diameter X 11.02" Long

Specifications Internal Grease Passage Hole No Outside Diameter 60 mm (2.362 in) Puller Thread No Effective Length 182 mm (7.165 in) Pin Type Flag pin Material STEEL Plating No Plating Pin Diameter 60 mm (2.36 in) Length 182 mm (7.17 in) Removal Aid/Feature No Puller Hole Compatible Equipment Wheel Excavators: M315D2, M315D, M313D, M317D2

Specifications Puller Thread Yes Internal Grease Passage Hole Yes Outside Diameter 50 mm (1.969 in) Effective Length 370 mm (14.567 in) Pin Type Flag Pin Material — Plating No Plating Pin Diameter 50 mm (1.97 in) Length 370 mm (14.57 in) Removal Aid/Feature No Puller Hole Remarks Greased through pin Compatible Equipment Wheel Excavators: M315D,…
