Linkage Pins

Cat® Link Pin 3.15" Diameter X21.46" Long

Specifications Internal Grease Passage Hole No Outside Diameter 63.4 mm (2.496 in) Puller Thread Yes Effective Length 186 mm (7.323 in) Pin Type Flag pin Material STEEL Plating Unplated Pin Diameter 63 mm (2.48 in) Length 186 mm (7.32 in) Removal Aid/Feature Puller Hole Compatible Equipment Off-Highway Trucks: 773D

Specifications Internal Grease Passage Hole No Puller Thread Yes Outside Diameter 149.9 mm (5.902 in) Effective Length 290 mm (11.417 in) Material Steel Pin Type Flag Pin Plating No Plating Pin Diameter 150 mm (5.91 in) Length 290 mm (11.42 in) Removal Aid/Feature No Puller Hole Internal Groove None Compatible Equipment Wheel Loaders: 992K

Specifications Internal Grease Passage Hole Yes Outside Diameter 60 mm (2.362 in) Effective Length 318 mm (12.52 in) Puller Thread Yes Pin Type Flag Pin Material STEEL Plating No Plating Pin Diameter 60 mm (2.36 in) Length 318 mm (12.52 in) Removal Aid/Feature Puller Hole Compatible Equipment Wheel Excavators: M320, M322D

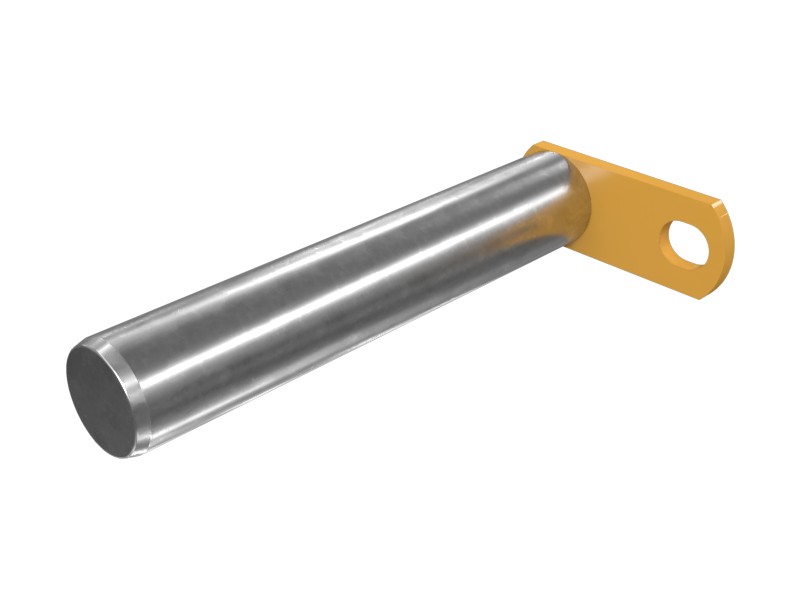

Cat® Link Pin 3.54" Diameter X 19.8" Long

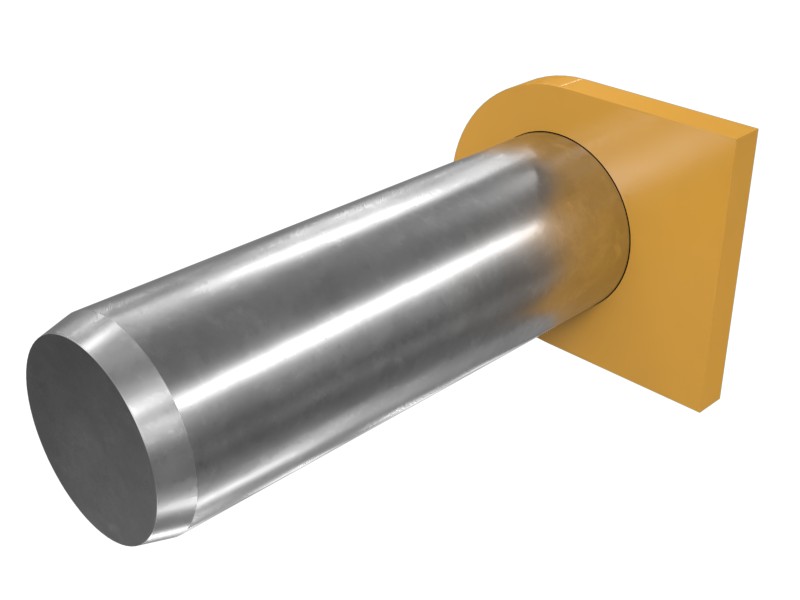

Cat® Pin Group

Cat machine linkage pins support rotation between the frame, linkages and work tools. They are used anywhere rotation must occur between two structures. Genuine Cat pins and sleeve bearings are specially designed to work together as a system to deliver the performance you expect. Caterpillar design engineers match each part with the right combination of…

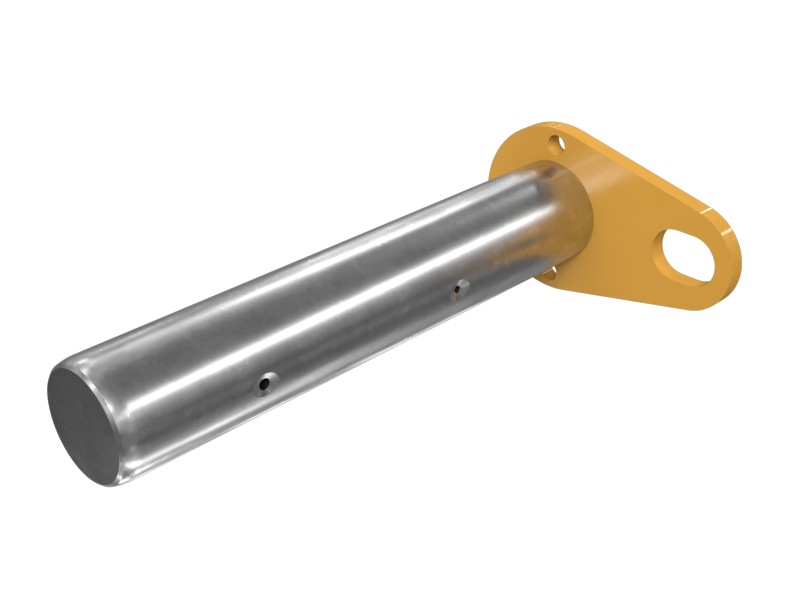

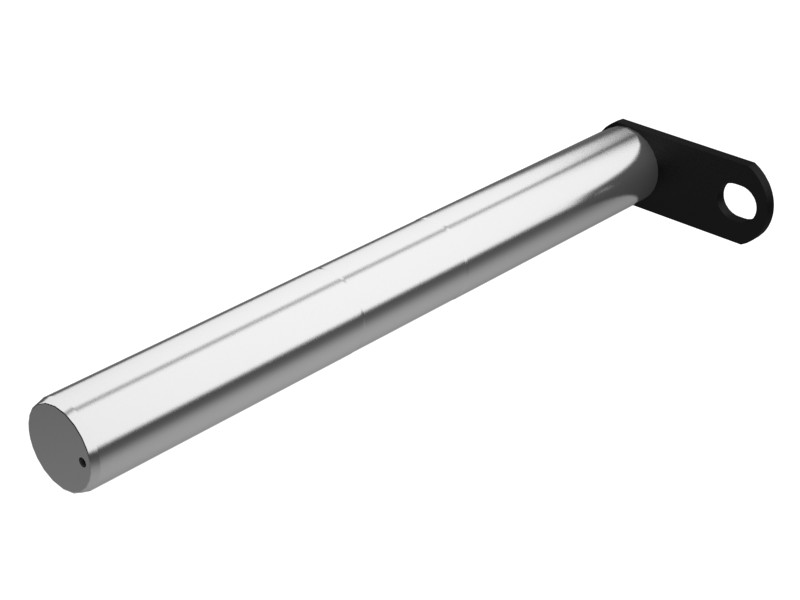

Cat® Pin Group (Flag Pin)
