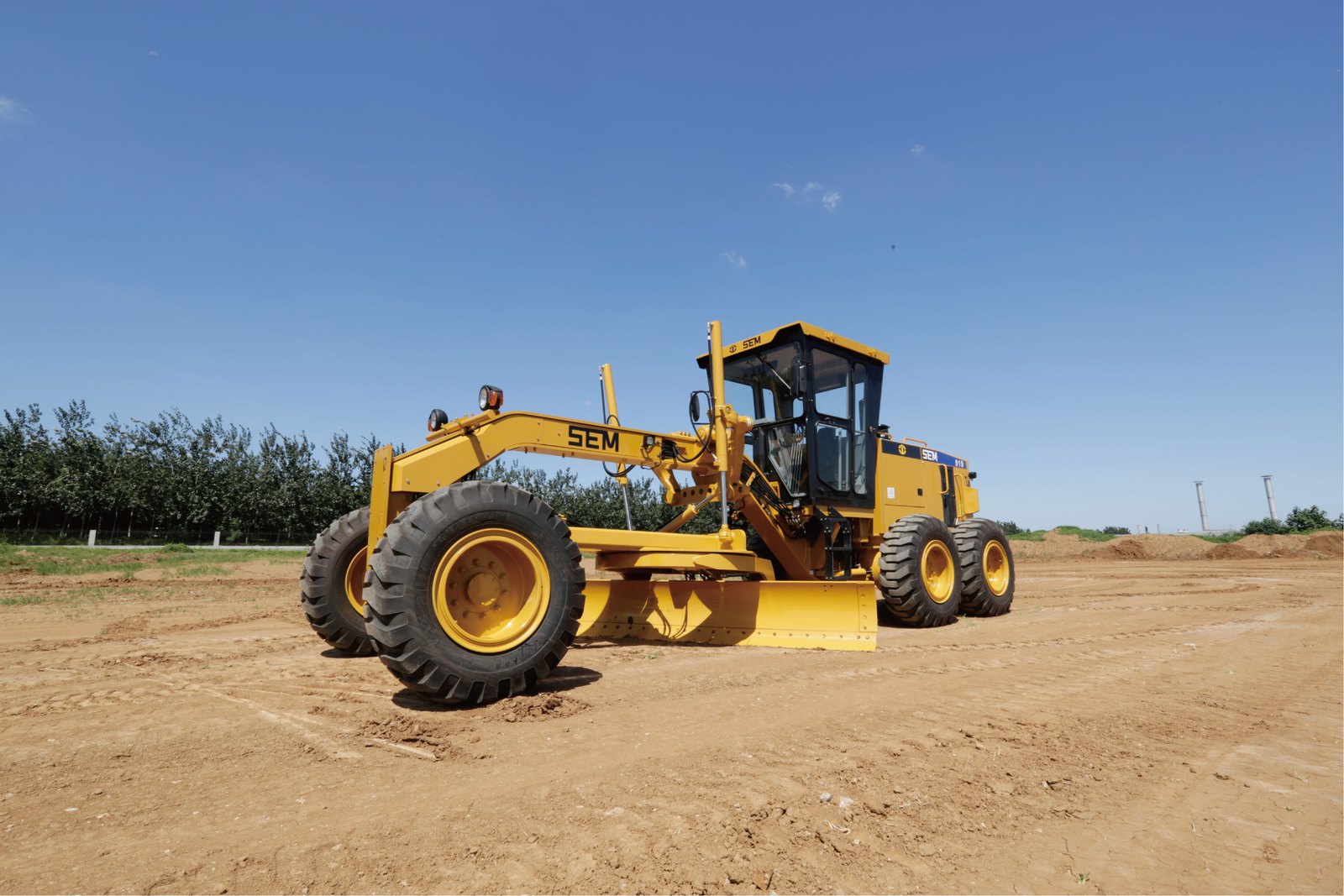

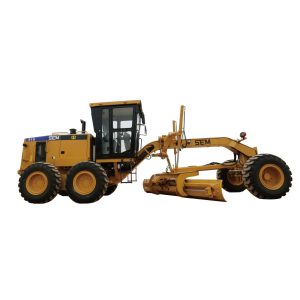

SEM 922 AWD Motor Grader
- Operating weight: 16,560 kg
- Blade length: 4,279 mm (14 ft)
- Engine: SDEC SC9D220G2, 162 kW
- Max. travel speed: 40 km/h
Brand-new machine. Price and lead time on request.
Description
The SEM 922 AWD Motor Grader is built for road construction and maintenance, site grading, ditching and snow removal. Load-sensing hydraulics, a Caterpillar-based tandem axle and a spacious front-mounted cab deliver precise grading with low operator effort. All-wheel drive adds traction in poor underfoot conditions.
Key Features
- SDEC SC9D220G2 engine, 162 kW rated power; Hangchi 6WG180 transmission, up to 40 km/h forward
- All-wheel drive with variable pumps and two-speed wheel motors for snow, sand, gravel and mud; steering compensation for a powered turn
- Load-sensing hydraulics with Cat® PPPC valves and variable-displacement piston pump for precise, consistent blade control
- SEM ST22 tandem axle based on Caterpillar motor grader design, with longer oil-change intervals
- A-frame tubular drawbar with replaceable bolted draft ball and easy-to-adjust wear shims
- 7-position link bar with electro-hydraulic control for high-bank and ditch-slope work; standard blade float
- Front-mounted cab with 1.9 m height and excellent view of the blade; 3-level alarm dashboard
- Short-throw, low-effort control levers reduce operator fatigue
Specifications
| Main Specifications | |
|---|---|
| Operating weight (base machine) | 16,560 kg |
| Overall dimensions (L × W × H) | 8,854 × 2,630 × 3,360 mm |
| Wheelbase | 6,140 mm |
| Min. turning radius | 7.8 m |
| Frame articulation angle | 20° |
| Blade | |
| Blade length | 4,279 mm (14 ft) |
| Blade height | 607 mm |
| Max. lift above ground | 475 mm |
| Max. depth of cut | 715 mm |
| Max. drawbar pull | Front ≥26 kN, rear axle ≥86 kN |
| Powertrain | |
| Engine | SDEC SC9D220G2 |
| Rated power | 162 kW |
| Transmission | Hangchi 6WG180 |
| Travel speed (forward / reverse) | 40 / 25 km/h |
| Rear axle / tandem | SEM ST22 |
| Chassis | |
| Service brake | Outboard disc with caliper, air-over-oil |
| Max. oscillation angle | ±16° |
| Steering angle (left / right) | 47.5° |
| Front wheel lean | 18° |
| Hydraulic system | Load sensing, PPPC |
| Service Refill Capacities | |
| Fuel tank | 240 L |
| Engine oil | 22 L |
| Coolant | 65 L |
| Transmission | 28 L |
| Rear axle (final drive & tandem) | 157 L |
| Hydraulic oil tank | 65 L |
Work Tools & Options
Rear ripper/scarifier, front blade, snow wing and mount, ROPS cab, HVAC, radial and bias tire groups, 12/13/14 ft blades, slip-clutch circle drive, cold and arctic start packages, rear fenders, tool box and roading lights.
Also available: SEM 919 and SEM 921.
Specifications are based on the manufacturer's brochure and may vary with configuration, emission standard and destination market. Contact us to confirm the exact configuration, lead time and price.
Additional information
| Brand | SEM |
|---|---|
| Condition | New |
| Machine Type | Motor Grader (AWD) |
