SEM 655D Wheel Loader
- Rated load: 5,000 kg
- Operating weight: 16,800 kg
- Bucket capacity: 2.7–4.5 m³
- Engine: Weichai WD10G, 162 kW
Brand-new machine. Price and lead time on request.
Description
The SEM 655D is a 5-ton class wheel loader for large-volume earthmoving, hopper feeding and coal loading. It loads more, moves faster and burns less fuel, and a wide range of work tools makes it a versatile machine for the yard or the site.
Key Features

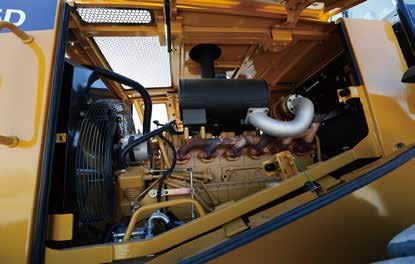

- Weichai WD10G engine with low-speed design and electronic fan for better efficiency
- Enhanced fuel pre-filter and heavy-duty air cleaner protect the engine in severe conditions
- SEM TR200 countershaft power-shift transmission, 4 forward / 4 reverse, with clutch cutoff switch
- Strong rimpull in 1st gear and higher 2nd-gear speed for efficient load-and-carry work
- SEM-designed and -built axles for heavy-duty applications
- Twin-pump flow-merging hydraulics shorten cycle times; joystick pilot control
- Standard cooling package rated for 50 °C ambient, on shock-pad mounts
- Premium cab with patented MAC mounts, adjustable suspension seat, sliding side windows and A/C
- Structures validated by finite element and on-machine stress analysis; Performance Series buckets
- Easy service: test ports, wide-opening hood doors, torque converter separate from transmission
Specifications
| Main Specifications | |
|---|---|
| Rated load | 5,000 kg |
| Operating weight (standard bucket) | 16,800 kg |
| Bucket capacity | 2.7–4.5 m³ |
| Wheelbase | 3,200 mm |
| Overall dimensions (L × W × H) | 8,085 × 2,963 × 3,463 mm |
| Operating Specifications | |
| Breakout force | 168 kN |
| Dump clearance | 3,058 mm |
| Articulation angle | 38° ±1 |
| Engine | |
| Model | Weichai WD10G |
| Rated power | 162 kW |
| Rated speed | 2,000 rpm |
| Displacement | 9.726 L |
| Transmission | |
| Type | Countershaft, power shift |
| Model | SEM TR200 |
| Gears | F4 / R4 |
| Torque converter | Single-stage, three-element |
| Travel speed, gears I / II / III / IV | 7.8 / 15 / 22 / 39 km/h (forward and reverse) |
| Axles | |
| Main drive | Spiral bevel gear, single stage |
| Final drive | Planetary, single stage |
| Rear axle oscillation | ±11° |
| Implement Hydraulics | |
| System type | Twin-pump flow merging |
| Boom raise time | 5.13 s |
| Hydraulic cycle time | 9.5 s |
| System pressure | 17 MPa |
| Brakes | |
| Service brake | Dry caliper disc, air-over-oil |
| Parking brake | Drum shoe, spring applied, hydraulic released |
| Steering | |
| System type | Flow amplifying |
| Steering pump | Gear pump |
| System pressure | 16 MPa |
| Steering angle | 38° ±1 |
| Tires | |
| Size | 23.5-25 |
| Type | Bias, 16 ply, L3/E3 |
Work Tools & Options
GP bucket, rock bucket (also with quick coupler), side-dump bucket, log grippers, pipe gripper, hay fork, pallet fork, marble fork, material handling arm and quick coupler arrangement.
Specifications are based on the manufacturer's brochure and may vary with configuration, emission standard and destination market. Contact us to confirm the exact configuration, lead time and price.
Additional information
| Brand | SEM |
|---|---|
| Condition | New |
| Machine Type | Wheel Loader |
