Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
These bolts are used where a separate washer is not suitable.
Features
- Cat fasteners are manufactured to precise technical specifications for durability, reliable performance, and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME, and SAE requirements.
- Cat bolts, nuts, and washers are specially designed to work together as a system to maximize clamping force.
- Coatings meet the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Thread Direction | RH |
|---|---|
| Locking Feature | Nylon Patch |
| Thread Size | 0.250 mm (0.01 in) |
| Material | Coating Fluid |
| Thread Size (Diameter × Pitch) | 1/4×20 mm |
| Class or Grade | Cat/ASTM F2882 (170 ksi) |
| Bolt Length | 31.75 mm (1.25 in) |

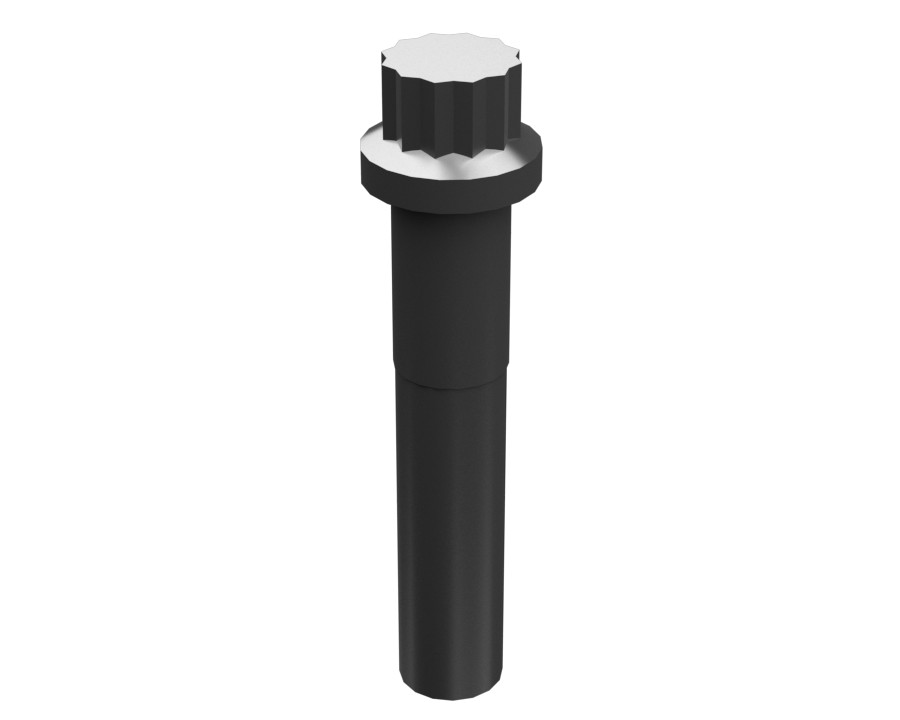

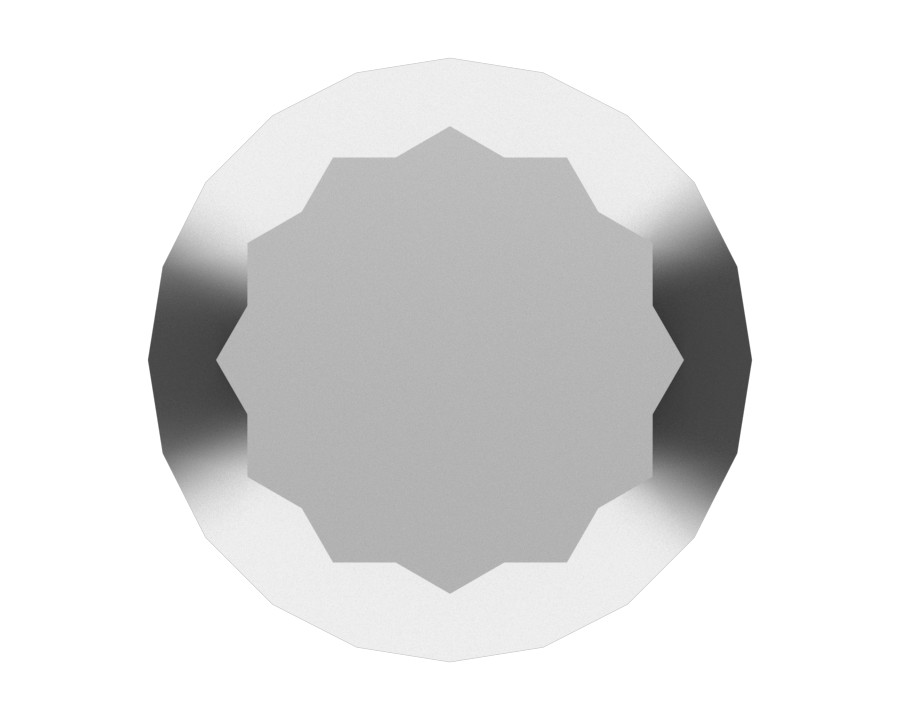

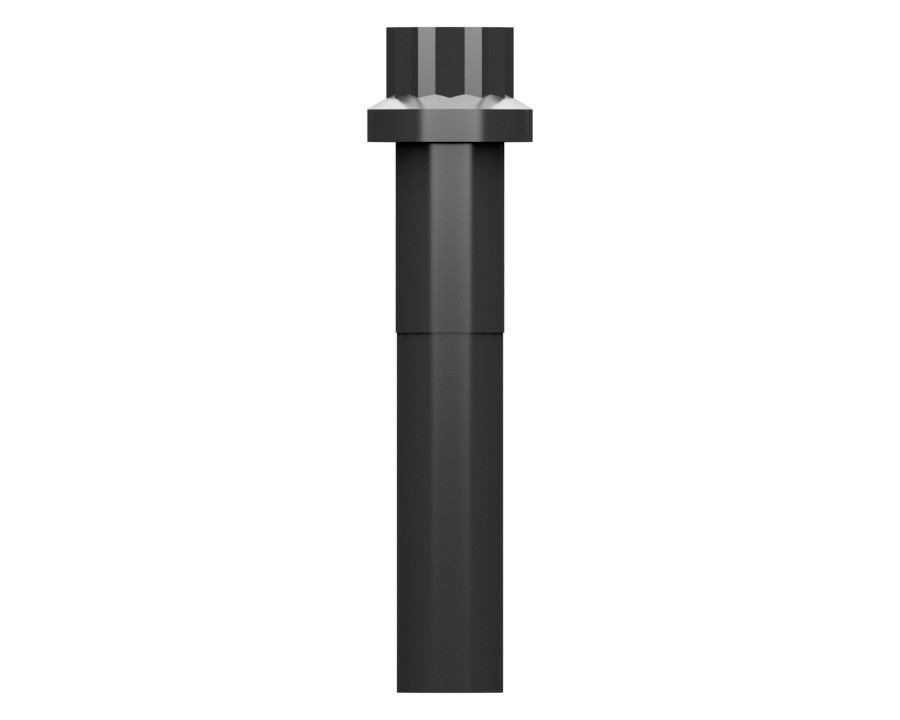

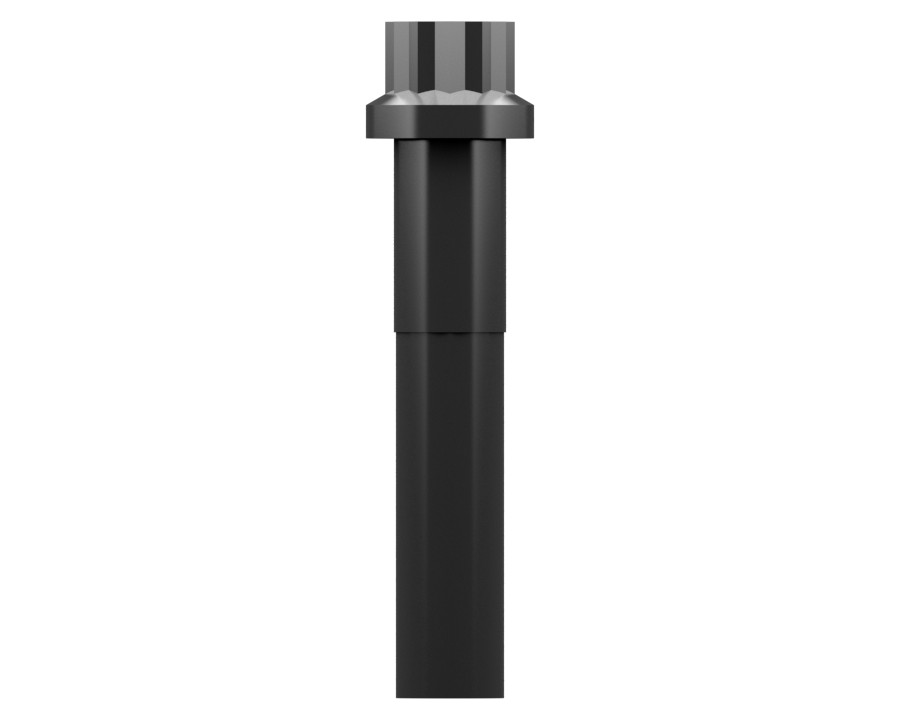

| Bolt Type | 12 Point Head |
| Coating | Oil with Corrosion Inhibitor |
| Handle Length | 11.1125 mm (0.472 in) |
Compatible Equipment
- Generator Sets: 3406B, 3406C, C7.1
- Motor Graders: 140G, 12H, 140H
- Track Loaders: 953, 963, 824C, 826G, 824G, 816F
- Dozers: D5H, D6R, D8N, D4E, D7H, D6G, D7R, D8R, D7G, D6G2 XL, D6G2 LGP, D7G2
- Excavators: 637G, 637E, 350 L, 330 L, 330B
- Wheel Loaders: R1300G, 972G, 980G, 966F, 910
Additional information
| Machine Model | 12H, 140G, 140H, 330 L, 330B, 3406B, 3406C, 350 L, 637E, 637G, 816F, 824C, 824G, 826G, 910, 953, 963, 966F, 972G, 980G, C7.1, D4E, D5H, D6G, D6G2 LGP, D6G2 XL, D6R, D7G, D7G2, D7H, D7R, D8N, D8R, R1300G |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Generator Sets |
| Part Source | Genuine OEM |
