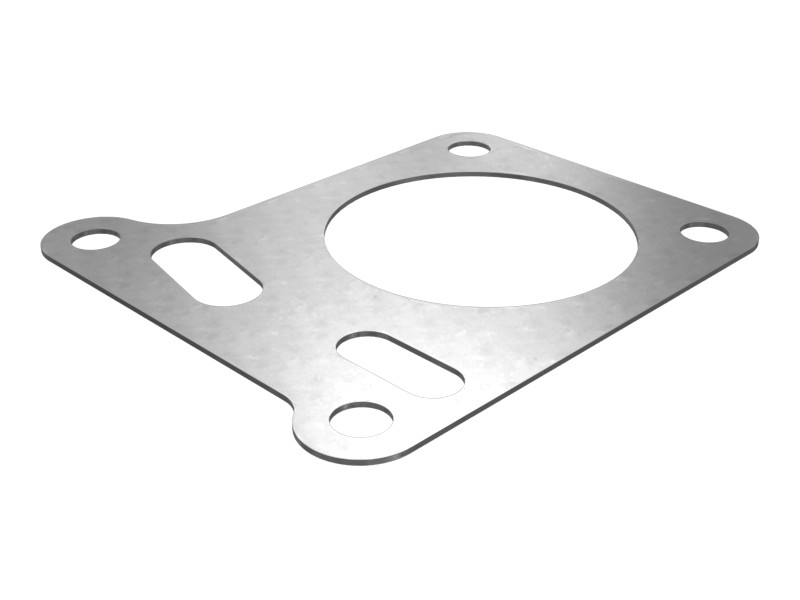

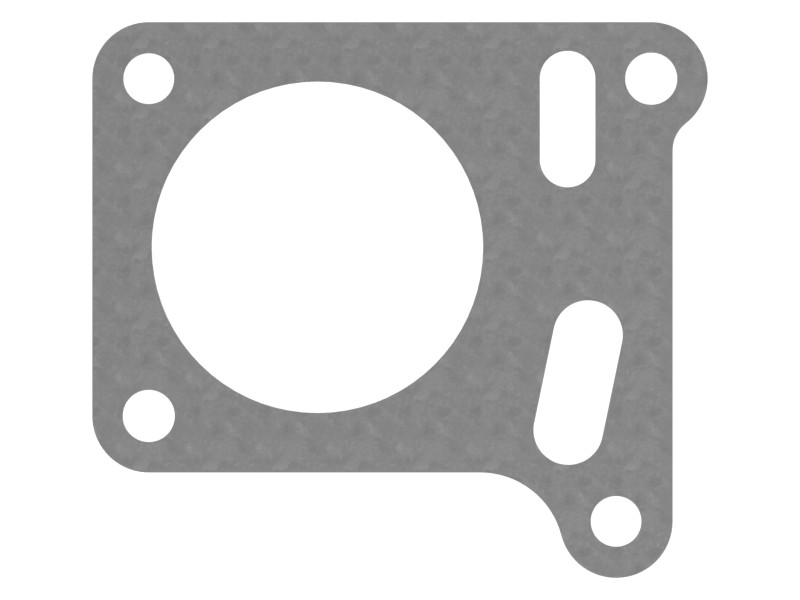

9Y-6042 Servo Oil Pump Gasket
Cat® Servo Oil Pump Gasket
Fitment data not listed — send us your machine model or serial number to confirm.
Description
Spacer (part number 9Y-6042) is used with the servo oil pump.
Gaskets use compression between the mating parts to achieve a tight, leak-free seal. Cat gaskets are designed with the right combination of material and form to deliver the desired performance for your application.
Features
- Low-compressibility thin gasket material
- Overall Length: 80 mm (3.15 in)
- Overall Width: 71 mm (2.78 in)
- Inside Diameter: 47.25 mm (1.86 in)

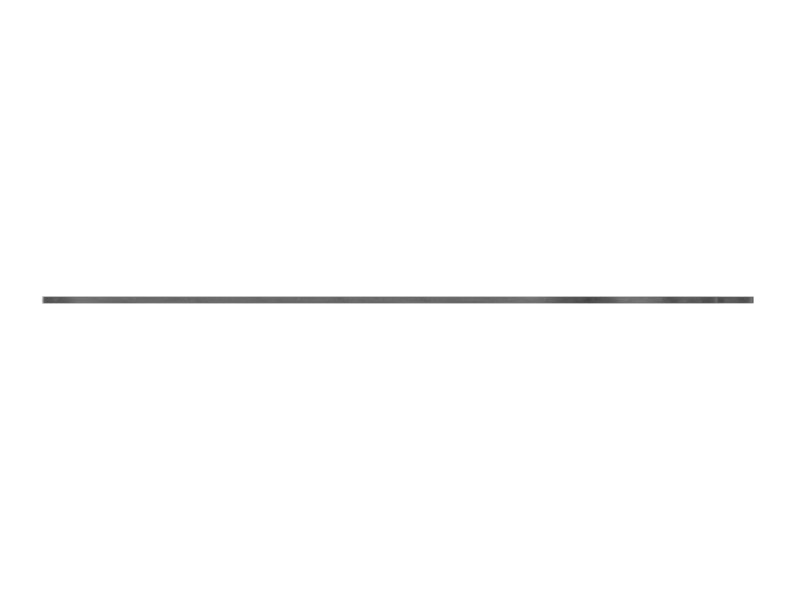

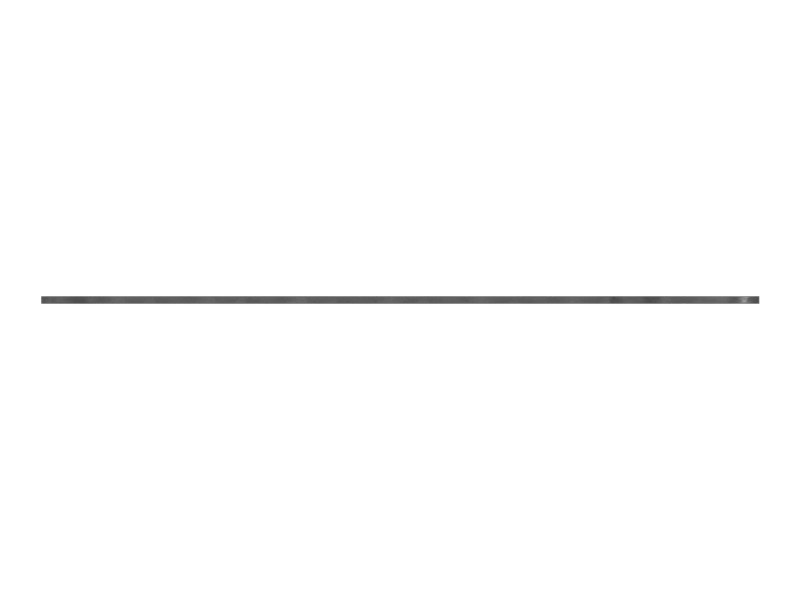

- Thickness: 8 mm (0.31 in)
- Hole Size: 7.5 mm (0.30 in) (4X)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Hole Size | 7.5 (4X) mm (0.30 (4X) in) |
|---|---|
| Inside Diameter | 47 mm (1.85 in) |
| Material | Rubber Gasket Gasket |
| Overall Length | 80 mm (3.15 in) |
| Overall Width | 71 mm (2.78 in) |
| Style | Flat Plate |
| Thickness | 0.8 mm (0.31 in) |
Additional information
| Part Source | Genuine OEM |
|---|
