Description

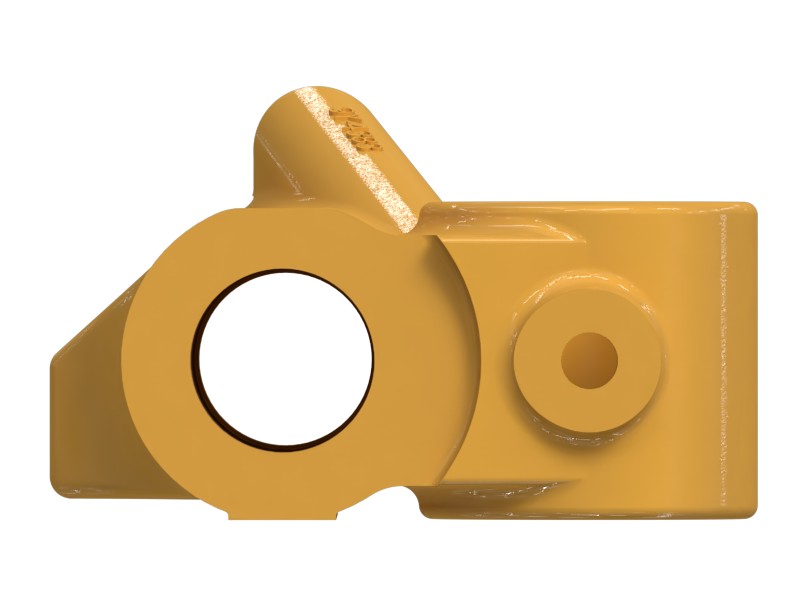

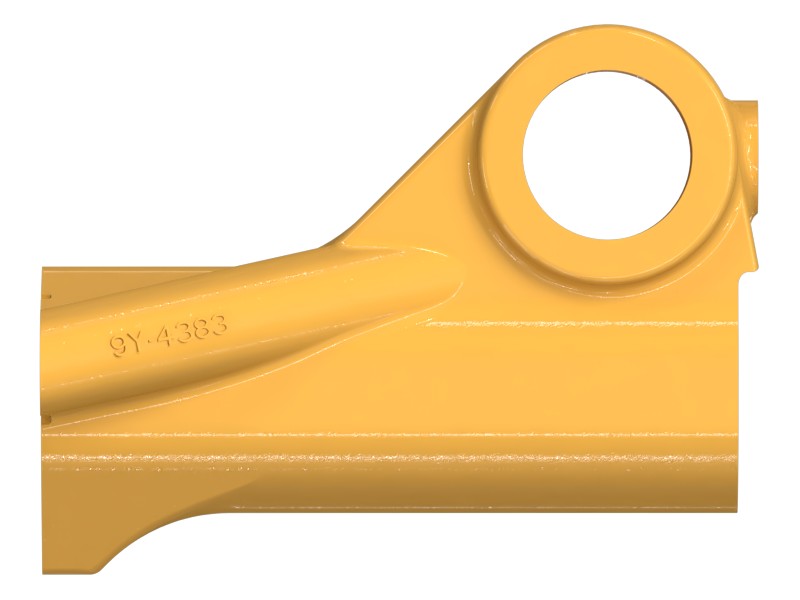

The rocker arm bracket consists of a shaft, spring, locating pin, washer, retaining ring, and other parts, and helps assemble the shaft and mount it to the component. A bracket is a component that provides additional support for a mechanical structure or system and increases stability. It is designed to hold the various components securely in place and bolt to the component, helping ensure safe and efficient operation. A variety of shapes, positions, and alignments are available depending on the application.
Features
- Distributes loads and reduces stress concentration, improving overall structural strength.
- Withstands any vibration or movement that may occur during operation.
- Heat resistant, resists deformation at high temperatures.
Applications
The rocker arm bracket is used to assemble the rocker arm mechanism.
Specifications
| Hole Size | 6.35, 7.92 mm (0.25, 0.31 in) |
|---|---|
| Length | 104.6 mm (4.12 in) |
| Width | 49.2 mm (1.94 in) |
Compatible Equipment
- Generator Sets: 3406C, 3406B
- Track Loaders: 824C, 826G, 824G
- Dozers: D8R, D8N
- Wheel Loaders: 980G
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
