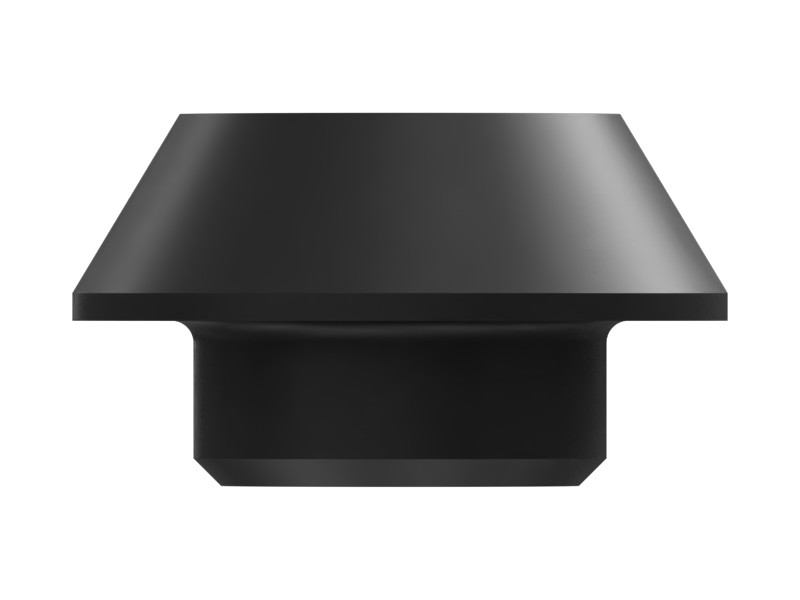

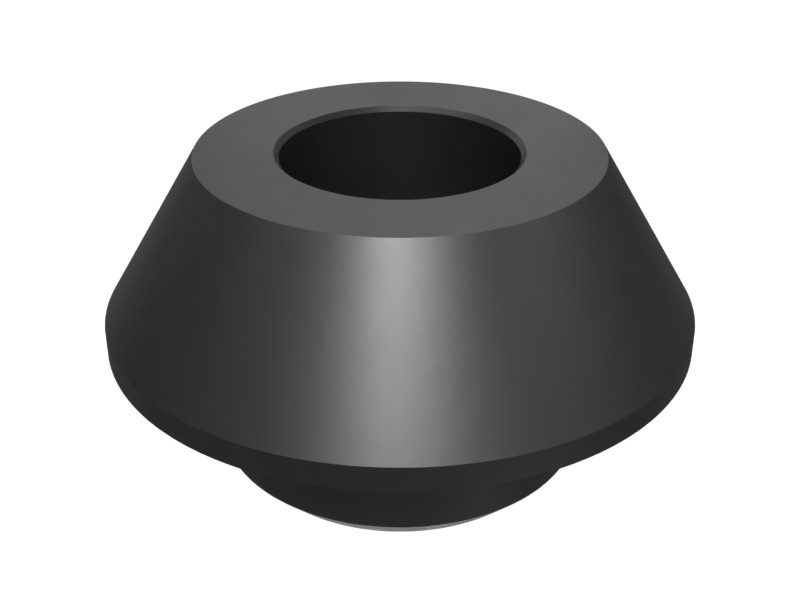

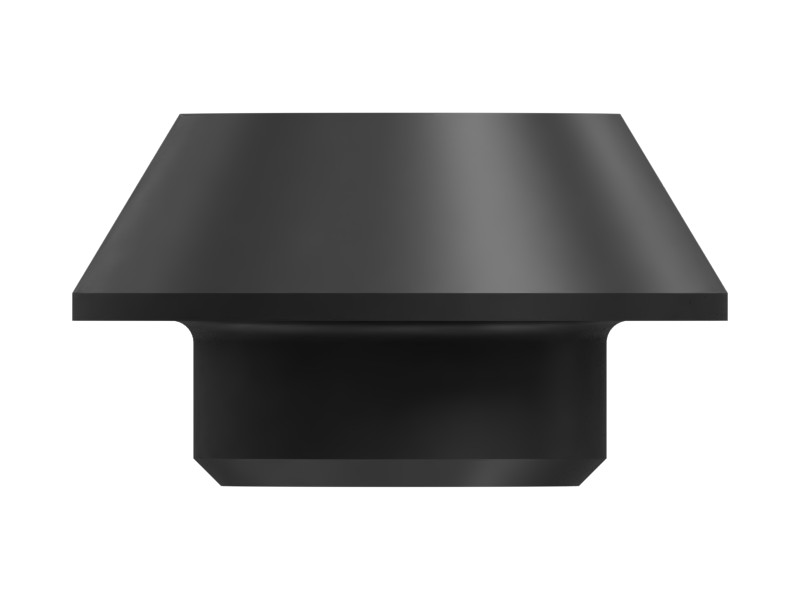

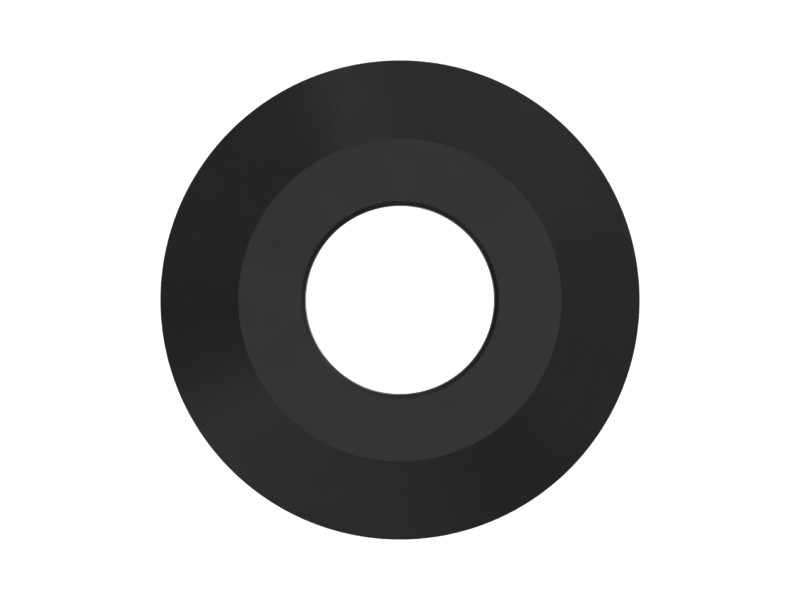

9X-9896 23.8 mm OD Isolation Mount
Cat® two-piece isolation mount for electronic control modules
Description
The isolation mount is used to mount and locate systems, accommodate displacement, and isolate components from the surrounding structure (vibration, shock, noise).
Two-piece mounts are extremely versatile and include symmetric (two mounts) and asymmetric (mount plus pad) designs. They install in drilled holes in a support plate and are bolted through the center sleeve, either joined or loose.
Features
Cat® mounting systems are designed to reduce the stress and strain on installed components, improve component durability and extend service life, and improve operator comfort. The entire system (mount design, material selection, placement, fasteners, etc.) is optimized and validated to meet specific application requirements.
Two-piece mounts can be fine-tuned through the rubber compound and design geometry to suit a specific application. The mounts are typically pre-compressed for long service life.
Applications
Two-piece mounts are used in a variety of Cat system installations, including engines, transmissions, aftertreatment systems, electronics, cab and HVAC systems, hydraulic components, and structures.
Specifications
| Material | Silicone / MQ / VMQ / PMQ Rubber |
|---|---|
| Mounting Type | Two-Piece – Symmetric |
| Standard Bolt Size | M6 mm |
| Inside Diameter | 9.4 mm (0.37 in) |
| Bonded Sleeve | None |
| Pilot OD | 15 mm (0.59 in) |
| Head Thickness | 7.5 mm (0.3 in) |
| Base Height | 13.5 mm (0.53 in) |
| Head Outside Diameter | 23.8 mm (0.94 in) |
Compatible Equipment
- Generator Sets: G3516, G3516C, 3512B, 3516C, 3512E, C7.1
- Track Loaders: 834H, 826H
- Cold Planers: PL87, PL83
- Engines: C32, C27, C15, C175-16, C18
- Excavators: 320D2, 320D, 336D, 336D2, 326D2 L, 329D, 326D2, 390F L, 390D L, 374D L, 349D2, 329D2 L, 349D, 349D2 L, 329D2, 330D L, 316 GC, 349F L, 323D L, 320D2 L, 329D L, 313D2, 314D LCR, 320C, 312D2 L, 326D L, 330D, 329E L, 313F LGC, 336F L XE, 329E, 336F LN, 320E, 324D L, 320D L, 324D, 336F L, 336F, 328D LCR, 312D2 GC, 318D2 L, 325D, 320D FM, 311D LRR, 313D2 GC, 320D RR, 323D2 L, 312C L, 336D L, 312D2, 325D L, 312D L, 320D2 GC, 336D2 L, 315D L, 312D, 315F LCR, 336E L, 330C L, 336E LN, 336D2 GC, 6040, 315C, 336E, 312C, 330D2 L, 336E LH, 312E, 312E L, 314D CR, 320D GC, 120 GC, M325D L MH, 6020B, 6015, 345C L, 385C, 365C, 385C FS, 374F L, 6015B, 390F, 345C, 3512C, 345D L, 345D, 313D2-GC, 323D2, 336D2 XE, 385C L, 349D L, 349E L, 340D2 L, 365C L, 390D, 352F, 349E L VG, 340D L, 349E, 335F LCR, 330D2, 318D L, 323D, 6030, 313D, 313F L, 325C
- Skid Steer Loaders: 313D2 LGP
- Motor Graders: 140 GC, 12K, 160K, 140K
- Wheel Excavators: M320, M322D, M320D2, M315D2, M315D, M317D2, M313D
- Dozers: D8T, D11, D9T, D11T, D10T2, D10R, D10T, D11R, D11N, D10, D9, D7R II, D6N, D6R II, D9N, D9R, D5N, D10N
- Wheel Loaders: 950G, 990H, 962G, 972G, 950H, 928G, 924GZ, 980H, 980G, 988H
- Off-Highway Trucks: 740, 740 GC, 798 AC, 794 AC, 797F, 796 AC, 745, 793F, 735, 725, 730, 745C, 725C2, 740B, 793
