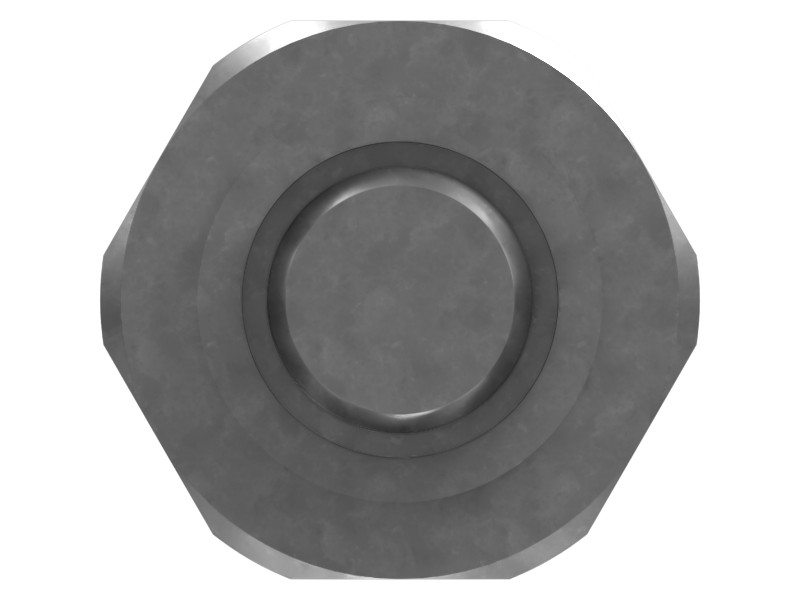

9X-9643 Battery Pressure Switch
Cat® Battery Pressure Switch with pressure sensing that triggers an actuator mechanism at a set pressure
Description
The Cat pressure switch group is designed to turn on or off based on changes in the system set pressure. Cat components help keep your equipment running at its best.
Features
- Pressure switch with pigtail connector
- Actuation Pressure: 10700 kPa (1552 psi)
- Contact Position: Normally Open and Normally Closed
- Connector Type: 3-Pin Receptacle
- Media: Oil, Fuel, and Air
- Thread Size: 9/16-18
- Hex Size: 30.15 mm (1.187 in)
- Rugged design for long service life
- High accuracy and stable performance
- Quick and easy installation
- Designed to work with other Cat parts to ensure the equipment reaches its full potential
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information. Cat parts can operate in heavy-duty applications in environments with severe vibration, shock, extreme operating temperature ranges, thermal cycling, thermal shock, moisture, corrosion and dust.
Specifications
| Connector Type | 3-Pin Receptacle |
|---|---|
| Hex Size | 30.15 mm (1.187 in) |
| Lead Length | 245 mm (9.64 in) |
| Temperature | -40° to 121° °C (-40° to 250° °F) |
| Thread Size | 9/16-18 in |
Compatible Equipment
- Track Loaders: 816F
- Excavators: 325B L, 345B
- Wheel Loaders: 966F
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
