Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.

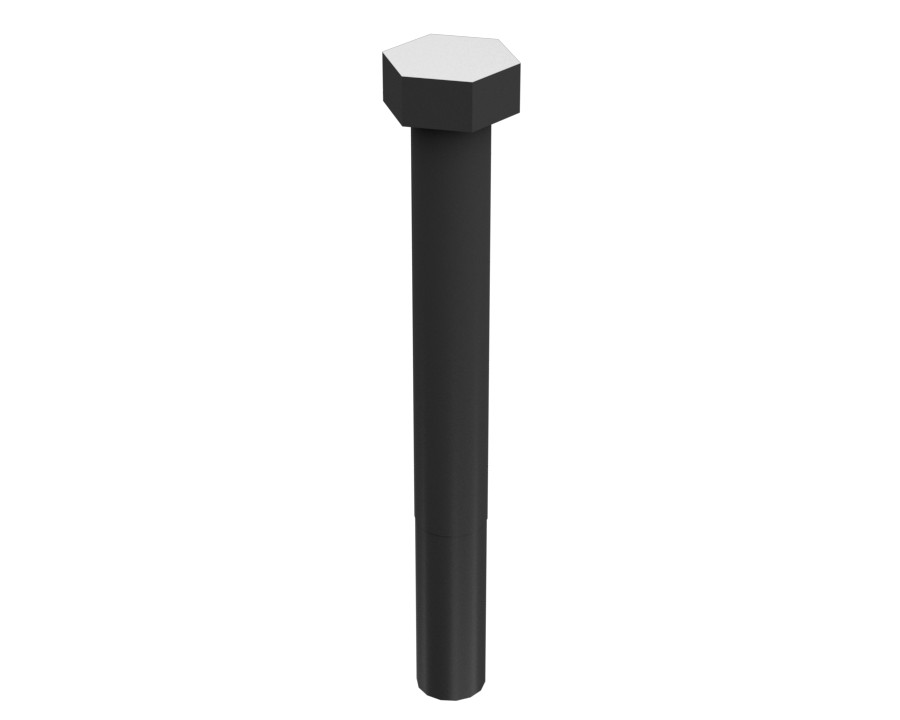

Hex head bolts/screws provide extremely strong tapping performance.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Thread Size | M16 mm (0 in) |
|---|---|
| Grade | 10.9 |
| Overall Length | 140 mm |
| Hole Thread Pitch | 2.00 |
| Class or Grade | ISO 898-1 Class 10.9 |
| Thread Direction | RH |
| Locking Feature | None |
| Thread Size (Diameter × Pitch) | M16X2 mm |
| Bolt Length | 140 mm (5.512 in) |
| Bolt Type | Hex Head Bolt |
| Head Height | 10 mm |
| Coating | Zinc Phosphate and Oil |
| Drive Chain | 24 mm |
| Handle Length | 96 mm (3.78 in) |
| Material | Steel |
| Material Description | ISO 898-1 Class 10.9. Head Marking – 10.9 (1040 MPa Ultimate Tensile Strength) |
| Thread | Coarse |
| Thread Size (in – TPI) | M16-2 in |
Compatible Equipment
- Motor Graders: 120H, 140G, 140K, 12K, 160K
- Wheel Excavators: M320
- Compactors: CS-583D, CS-533C
- Engines: C7
- Dozers: D6N, D5M, D5N, D6M
- Excavators: M325D L MH, 324D, 325D L, 325B, 325B L, 325D, 325C, 320B, 325C L, 326D L, 328D LCR, 329D L, 324D L, 3126, 329D
- Wheel Loaders: 950H, 950G, 962G, 966F, 928G
- Skid Steer Loaders: 3126B
Additional information
| Machine Model | 120H, 12K, 140G, 140K, 160K, 3126, 3126B, 320B, 324D, 324D L, 325B, 325B L, 325C, 325C L, 325D, 325D L, 326D L, 328D LCR, 329D, 329D L, 928G, 950G, 950H, 962G, 966F, C7, CS-533C, CS-583D, D5M, D5N, D6M, D6N, M320, M325D L MH |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Skid Steer Loaders, Dozers, Motor Graders, Compactors, Engines |
| Part Source | Genuine OEM |
