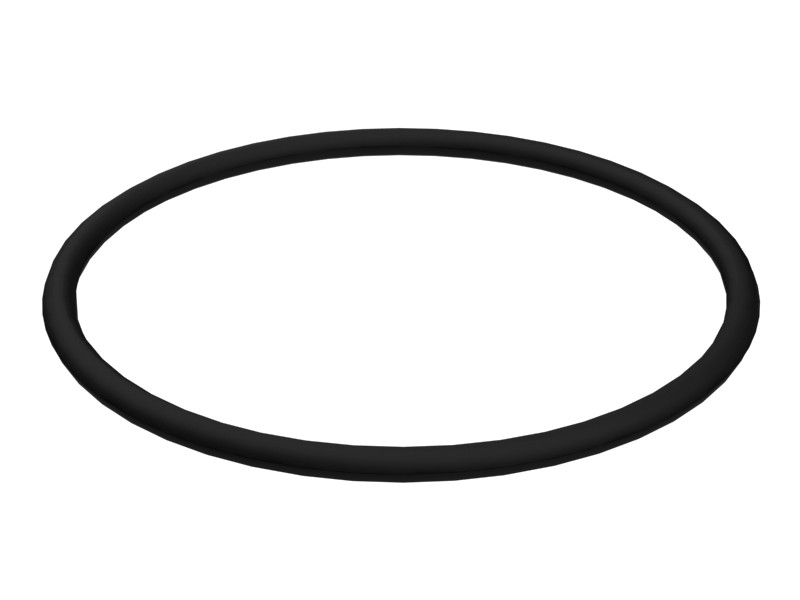

Description
O-rings are used for static sealing and some dynamic applications.
Features
Cat® O-rings are made from materials compatible with the fluids, temperatures and pressures in Cat engines and machines. These materials resist wear and extrusion, giving the seals excellent compression set resistance. In addition, some Cat O-rings are coated with PTFE to minimize seal twisting and cutting during installation.
Our O-rings are dimensioned to strictly follow tight tolerances, ensuring they are properly seated in the seal groove with the right seal compression.
With more than 2500 different sizes and materials of O-rings, Cat O-rings are the best solution for the O-ring needs of your Cat and other mobile equipment.
Cat sealing systems prevent leaks and contamination of more expensive parts. Genuine Cat seals protect your investment.
Applications
O-rings are used in many static and dynamic joints in Cat machines and engines.
Specifications
| Material Hardness | 50A |
|---|---|
| Polymer | NBR (Nitrile butadiene) |
| Dash Size | 348 in |
| Cross-Section Diameter | 5.31 mm (0.209 in) |
| Inside Diameter | 109.83 mm (4.324 in) |
| Material | NBR (50) |
Compatible Equipment
- Generator Sets: C4.4, C9, C7.1
- Track Loaders: 816F, 826K, 826G, 824G, 834H
- Cold Planers: PM622, PM620
- Compactors: CB-534D, CS-563E, CB-564D, 824K, CS-533E
- Engines: C6.6, C13, C15, C18
- Excavators: 320D, 336D2, 320D2, 336D, 374F, 307E, 374D L, 390D L, 349D, 330D L, 325D, 325D L, 324D, 330C, 325C, 324D L, 325B L, 315D L, 320D FM, 336D L, 320C, 323D L, 336D2 XE, 320B, 318D2 L, 328D LCR, 311D LRR, 313F L, 336D2 L, 312D, 320D L, 330C L, 312D L, 325B, 320D2 GC, 330D, 323D, 330 L, 325C L, 320D GC, 320D RR, 313D2 GC, 320D2 L, 336D2 GC, 314D LCR, 314D CR, 621G, 621K, M325D L MH, 6040, 329D L, 621H, 6060, 637G, 330B, 323D2 L, 313D2, 365B L, 320C L, 637K, 345C L, 365B, 385C, 365C L, 340D2 L, 385B, 365C, 349D L, 345C, 345D L, 374F L, 385C L, 385C FS, 340D L, 345D, 390D, 345B, 350 L
- Asphalt Pavers: AD45, AD30, AP655F, AP655F L
- Motor Graders: 12H, 140H, 16M, 120H, 14M, 14, 16H
- Wheel Excavators: M320D2, M322D, M320, M313D, M315D, M315
- Dozers: D9R, D8N, D6R, D7R, D7H, D5H, D5G, D8R, D6R III, D7R II, D6R II, D7G2, D6G, D7E, D6T, D6N, D6M, D6G2 XL, D5N, D5M, D4G, D3G, D9T, D9N, D7G, D10N, D11R, D10R, D11N, D6G2 LGP, D10T
- Mini Excavators: 307E2, 307, 308E2
- Wheel Loaders: R1700G, R2900G, R1300G, R1700 II, R1600H, 980H, 950G, 980G, 988G, 988F, 992D, 988H, 990H, 962G, 972G, 966F, 836, 972H, 966H
- Off-Highway Trucks: 773E, 777, 773, 740, 725, 777D, 735, 777E, 745C, 773F, 773D, 730, 771D
