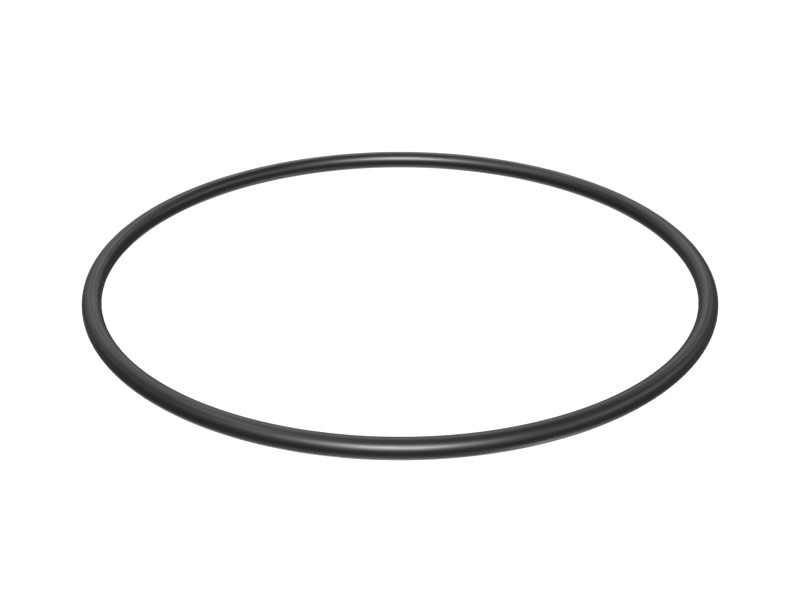

Description
O-rings are used for static sealing and some dynamic applications.
Features
Cat® O-rings are made from materials compatible with the fluids, temperatures and pressures in Cat engines and machines. These materials resist wear and extrusion, giving the seals excellent compression set resistance. In addition, some Cat O-rings are coated with PTFE to minimize seal twisting and cutting during installation.
Our O-rings are dimensioned to strictly follow tight tolerances, ensuring they are properly seated in the seal groove with the right seal compression.
With more than 2500 different sizes and materials of O-rings, Cat O-rings are the best solution for the O-ring needs of your Cat and other mobile equipment.
Cat sealing systems prevent leaks and contamination of more expensive parts. Genuine Cat seals protect your investment.
Applications
O-rings are used in many static and dynamic joints in Cat machines and engines.
Specifications
| Polymer | FKM (Fluorocarbon) |
|---|---|
| Compatible | Diester Lubricants; Halogenated Hydrocarbons (Above 100 Degrees C); Excellent Compression Set Resistant Material; Petroleum Fluids; Phosphate Ester Fluids; Silicone Oils; Certain Acids |
| Dash Size | 0 in |
| Material Hardness | 75A |

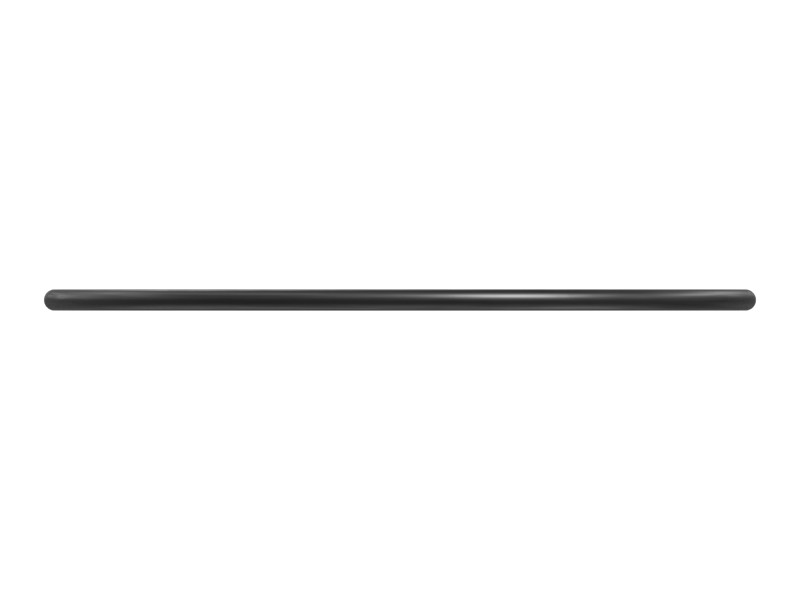

| Cross-Section Diameter | 3.53 mm (0.139 in) |

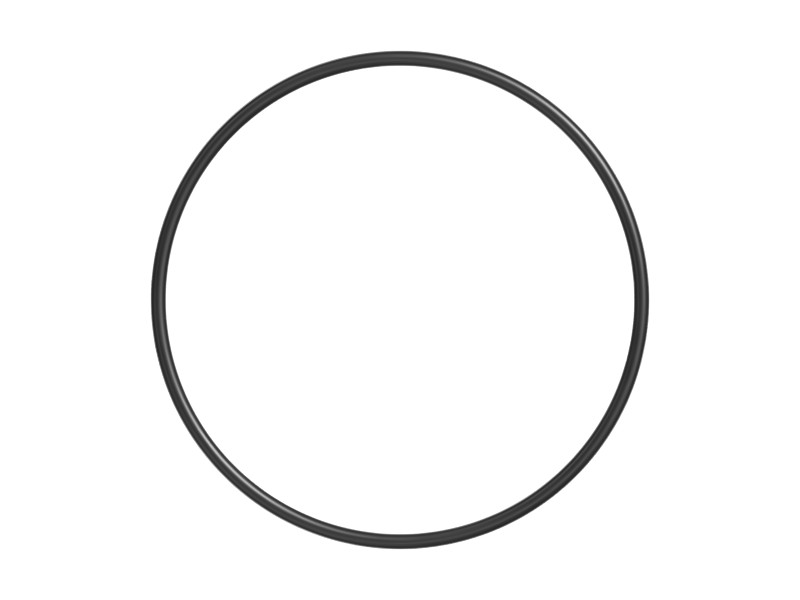

| Inside Diameter | 113.89 mm (4.484 in) |
| Material | FKM – Fluoroelastomer |
Compatible Equipment
- Generator Sets: C9, G3516C, G3516
- Track Loaders: 826K, 982, 995, 990K, 992, 994K, 993
- Cold Planers: PL87, PL83, PL72
- Compactors: 824K, 834K, 815, 825K, 814, C-9
- Engines: C15, C13, C11, C18, C175-16, C12
- Excavators: 390F L, 374F, 374, 6015, 6015B, 395, 637K, 374F L, 390F, 6020B, 621K, 621H, 3101, 3508B
- Skid Steer Loaders: 24
- Motor Graders: 16, 18, 16M3, 14
- Wheel Excavators: MD6310, MD6250, MD6200
- Dozers: D11T, D10T2, D8T, D9T, D7R, D6T, D6T LGP, D9R, D8R, D7E, D7R II, D6R III, D7, D9, D11, D11R, D10T, D8, D10
- Wheel Loaders: 988K, 980L, 980, 834, R2900 XE, 836
- Off-Highway Trucks: 793, 798 AC, 777, 770G, 793F, 797F, 793D, 785D, 777E, 785, 796 AC, 772G, 789D, 789, 773, 775G
Additional information
| Machine Model | 14, 16, 16M3, 18, 24, 3101, 3508B, 374, 374F, 374F L, 390F, 390F L, 395, 6015, 6015B, 6020B, 621H, 621K, 637K, 770G, 772G, 773, 775G, 777, 777E, 785, 785D, 789, 789D, 793, 793D, 793F, 796 AC, 797F, 798 AC, 814, 815, 824K, 825K, 826K, 834, 834K, 836, 980, 980L, 982, 988K, 990K, 992, 993, 994K, 995, C-9, C11, C12, C13, C15, C175-16, C18, C9, D10, D10T, D10T2, D11, D11R, D11T, D6R III, D6T, D6T LGP, D7, D7E, D7R, D7R II, D8, D8R, D8T, D9, D9R, D9T, G3516, G3516C, MD6200, MD6250, MD6310, PL72, PL83, PL87, R2900 XE |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Cold Planers, Engines, Generator Sets |
| Part Source | Genuine OEM |
