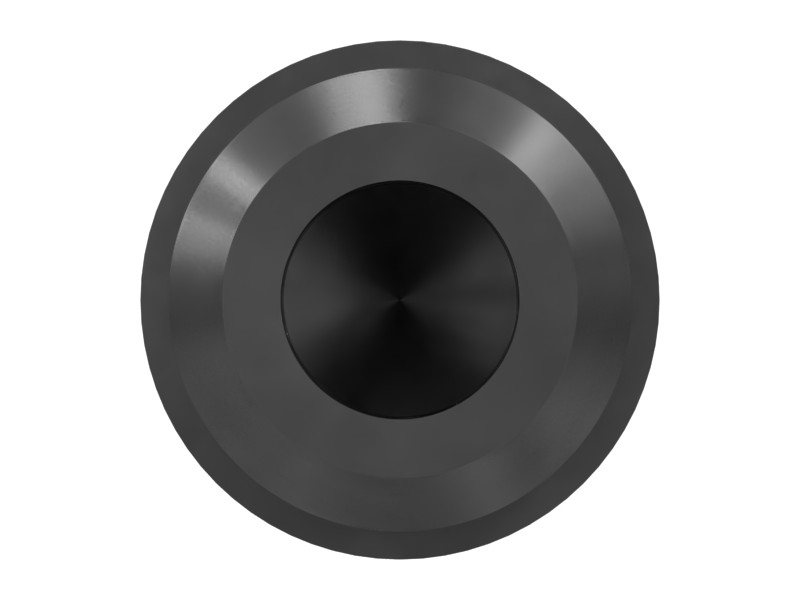

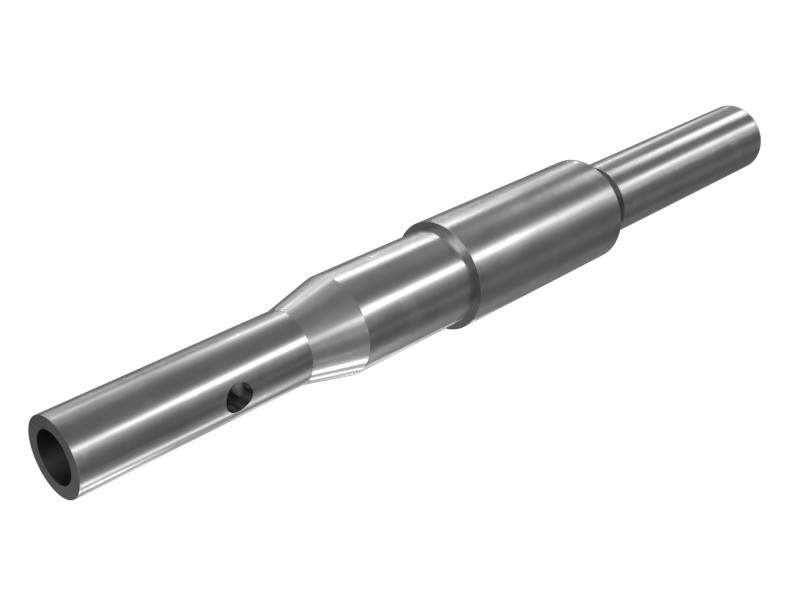

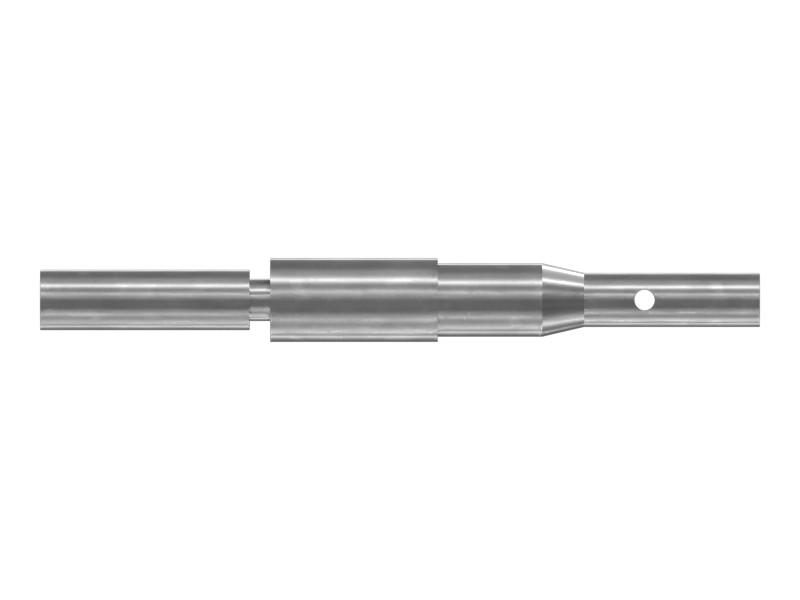

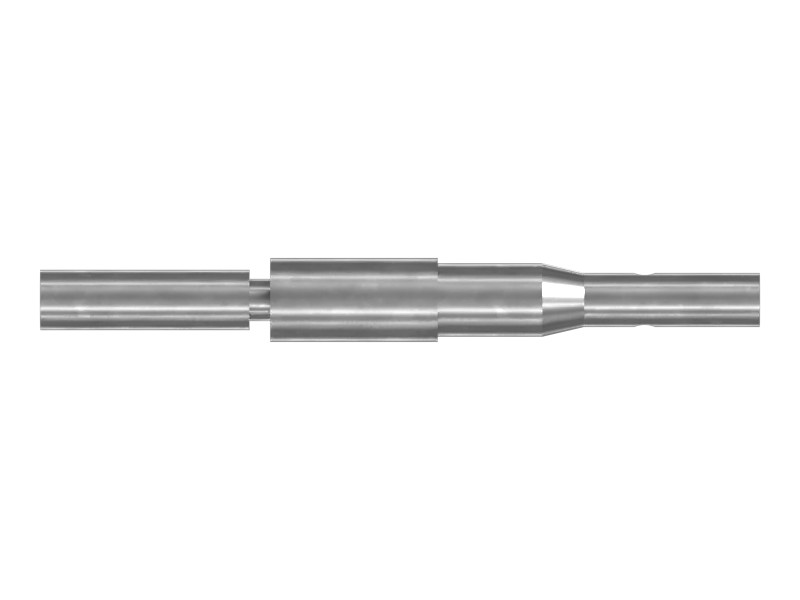

9X-6857 Connector Receptacle
Cat® 34.4 mm long power distribution harness connector receptacle facilitates power distribution
Description
Cat connector receptacles are used in electrical connectors. Cat terminal pins are inserted into the Cat terminal sockets on the mating connector to establish an electrical connection.
Features
- Wire Size: 18-16 AWG
- Rated Current: 15 Amps
- Nickel-plated brass ensures excellent conductivity
- Easy to connect and disconnect
Applications
Cat Connector Receptacles provide reliable connections between wires or between a wire and a device. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Diameter | 4.09 mm (0.161 in) |
|---|---|
| Length | 34.4 mm (1.35 in) |
| Gauge | 18-16 AWG |
Compatible Equipment
- Generator Sets: 3512B, 3516C, 3512E, G3516C, G3516
- Motor Graders: 14, 16M, 3606, 14M
- Track Loaders: 826H, 834H
- Engines: C15, C175-16, C18
- Dozers: D11N, D5H, D6R, D8R
- Excavators: 3512C, 637G, 3516E, 657G, 637K, 3516B, 3508B, 621K, 621G, 621H
- Wheel Loaders: 992K
- Off-Highway Trucks: 798 AC, 794 AC, 789D, 785D, 773E, 740, 725, 735, 777D, 773D, 730, 725C2, 771D, 796 AC, 793D, 785, 789
Additional information
| Machine Model | 14, 14M, 16M, 3508B, 3512B, 3512C, 3512E, 3516B, 3516C, 3516E, 3606, 621G, 621H, 621K, 637G, 637K, 657G, 725, 725C2, 730, 735, 740, 771D, 773D, 773E, 777D, 785, 785D, 789, 789D, 793D, 794 AC, 796 AC, 798 AC, 826H, 834H, 992K, C15, C175-16, C18, D11N, D5H, D6R, D8R, G3516, G3516C |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks, Engines, Generator Sets |
| Part Source | Genuine OEM |
