Description
Cat® tube connection fittings meet the highest standards of quality and reliability. These parts are manufactured to tight tolerances to ensure leak-free connections. Every Cat tube connection fitting meets or exceeds applicable industry standards for working pressure, assembly torque capability and corrosion protection, keeping machines durable and up and running.
Features
- Fluid-conveying tube connection component
- Meets or exceeds industry-standard part performance and provides a leak-free connection

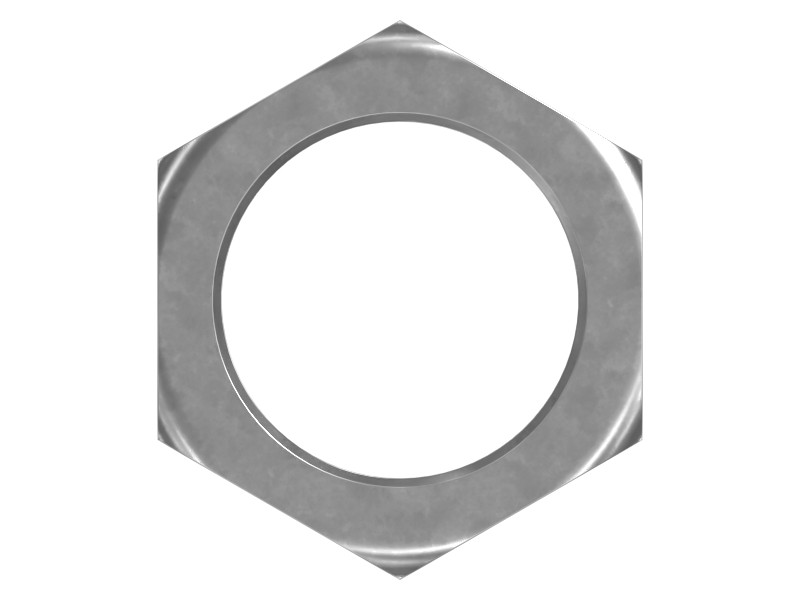

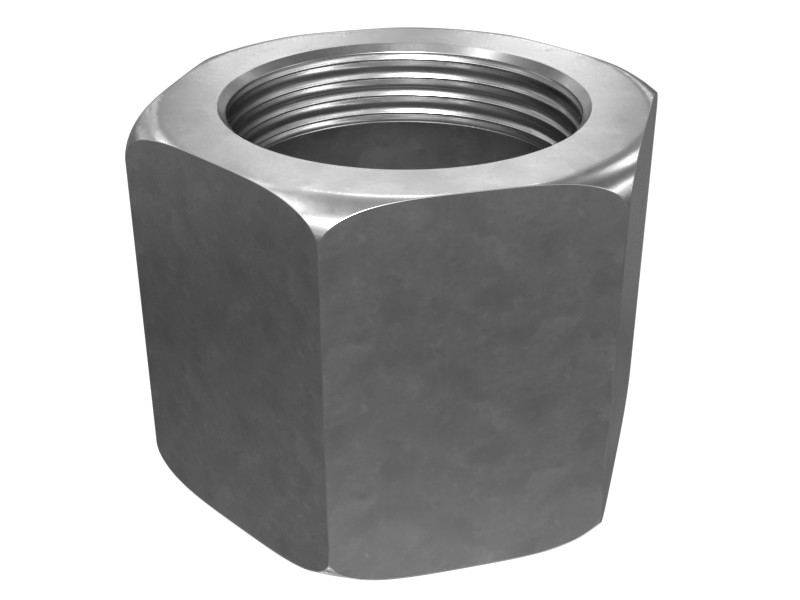

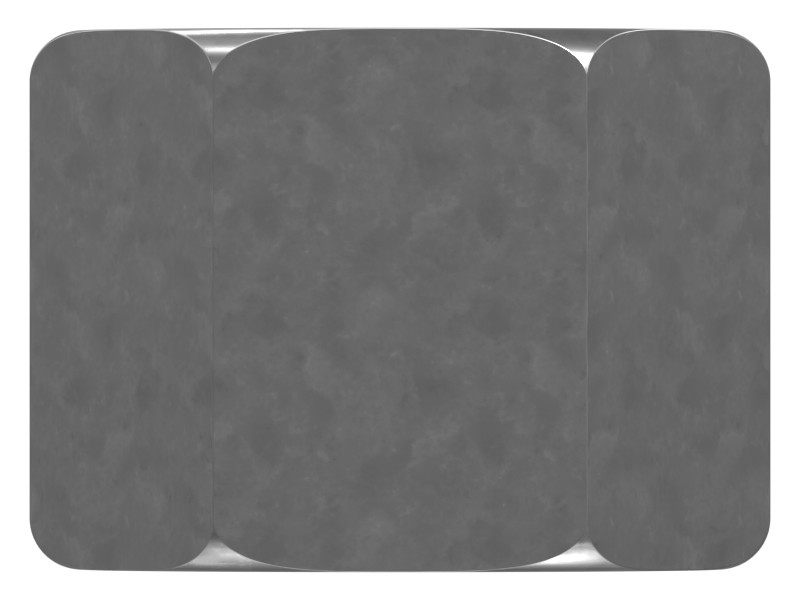

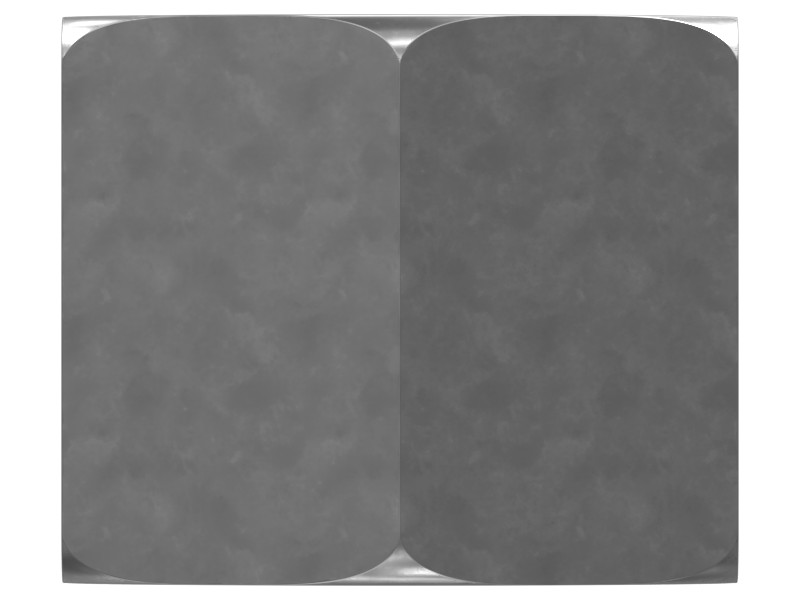

- The image provided is for reference only. The part construction may differ slightly from the image shown, but this part is interchangeable with the OEM part.
Applications
Tube connection fitting parts are compatible only with other parts designed for the same type and size of connection. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Alloy Zinc |
|---|---|
| Nut Model | Swivel Fitting |
| Transmission and Hydraulic Oil Compatible Seals | 7J-9108 (1-14) |
| Oil and Fuel Compatible Seals | 228-7091 (1-14) |
| Material Description | Plated Steel |
| Length | 24 mm (0.94 in) |
| Coolant and DEF Compatible Seals | 6V-5138 (1-14) |
| Thread | 1-14 |
| Hex Size | 29 mm (1.13 in) |
Compatible Equipment
- Track Loaders: 826K, 994K, 995
- Compactors: CS-56, CB-44B, CB10
- Engines: C32
- Excavators: 306E2, 308D, 305, 308E, 306E, 621K, 434F2, 416F2, 621H, 428F, 432, 323, 320 GC, 320, 325C, 323 GC, 637K, 323GC, 325C L, 325B L
- Asphalt Pavers: AP655F, AP655F L
- Skid Steer Loaders: 226B3, 216B3, 262C, 262D3, 299D3 XE, 226B, 272D3 XE, 272D3, 246D3, 289D3, 236B3
- Motor Graders: 16M, 14M, 16M3, 14, 16, 18
- Wheel Excavators: MD6250, MD6200, IT14G, M315D, M313D, M320D2, M322D, M315D2, M317D2, MD6310, M320, M315
- Dozers: D10R
- Compact Track Loaders: 279D3, 299D3
- Mini Excavators: 310, 308, 307E2, 307D, 305.5E, 305.5E2
- Wheel Loaders: 836, 834, 928G, 906K, 924GZ, R1300G, M314, 928HZ
- Off-Highway Trucks: 797F, 793D, 785D
Additional information
| Machine Model | 14, 14M, 16, 16M, 16M3, 18, 216B3, 226B, 226B3, 236B3, 246D3, 262C, 262D3, 272D3, 272D3 XE, 279D3, 289D3, 299D3, 299D3 XE, 305, 305.5E, 305.5E2, 306E, 306E2, 307D, 307E2, 308, 308D, 308E, 310, 320, 320 GC, 323, 323 GC, 323GC, 325B L, 325C, 325C L, 416F2, 428F, 432, 434F2, 621H, 621K, 637K, 785D, 793D, 797F, 826K, 834, 836, 906K, 924GZ, 928G, 928HZ, 994K, 995, AP655F, AP655F L, C32, CB-44B, CB10, CS-56, D10R, IT14G, M313D, M314, M315, M315D, M315D2, M317D2, M320, M320D2, M322D, MD6200, MD6250, MD6310, R1300G |
|---|---|
| Equipment Type | Excavators, Mini Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Compact Track Loaders, Skid Steer Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Asphalt Pavers, Engines |
| Part Source | Genuine OEM |
