Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Hex head bolts/screws provide extremely strong tapping performance.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Class or Grade | Cat/ISO 898-1 Class 11.9 |
|---|---|
| Thread Direction | RH |
| Thread Size | M20 mm (0 in) |
| Locking Feature | None |
| Thread Size (Diameter × Pitch) | M20X2.5 mm |
| Bolt Length | 200 mm (7.874 in) |

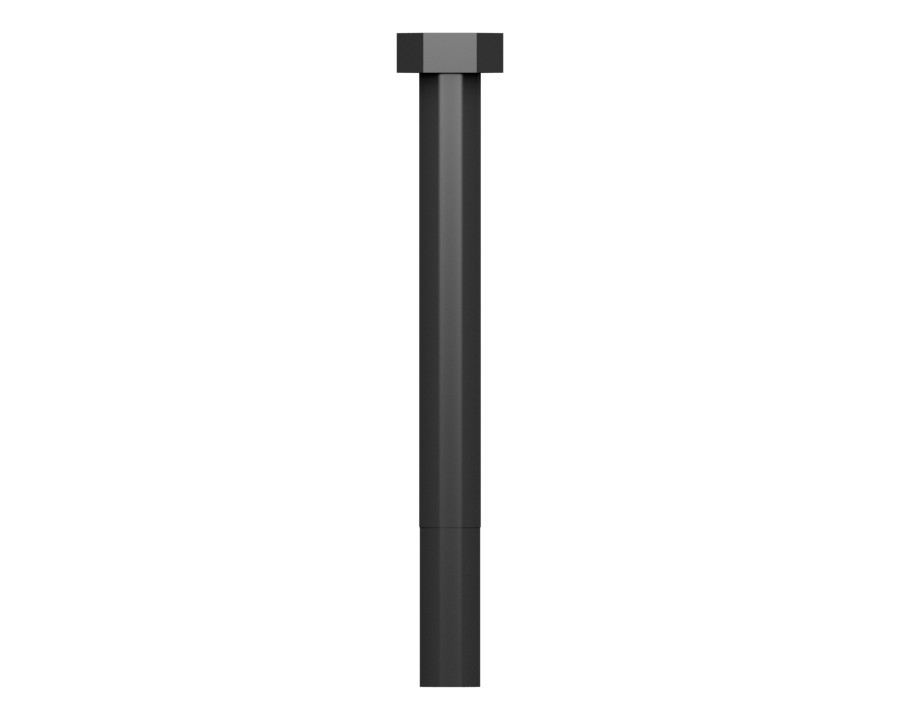

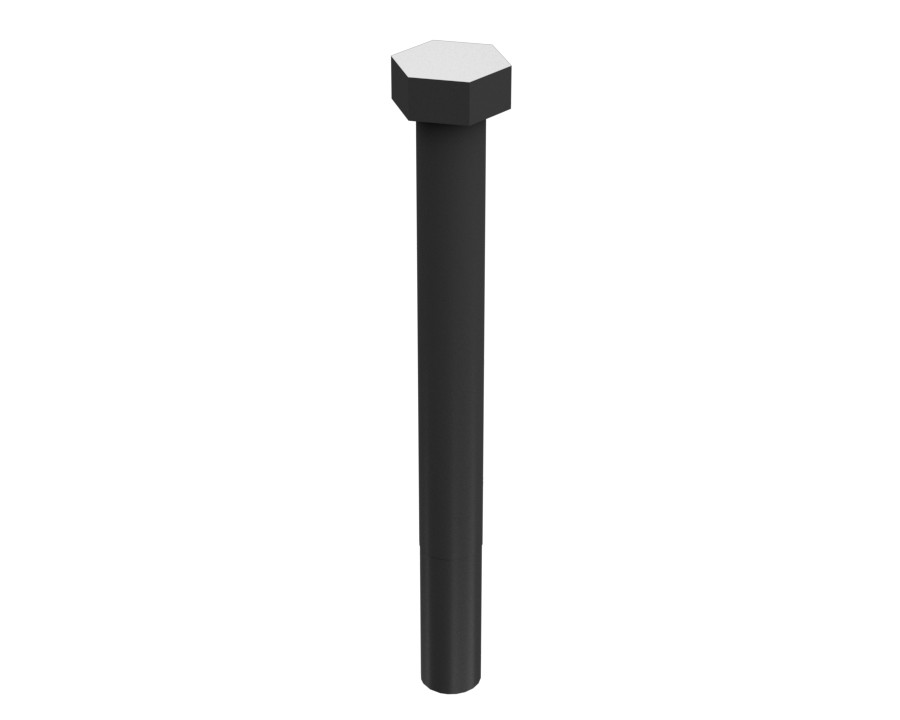

| Bolt Type | Hex Head Bolt |
| Coating | Zinc Phosphate and Oil |
| Handle Length | 148 mm (5.827 in) |
Compatible Equipment
- Motor Graders: 18, 16, 16M, 16M3
- Track Loaders: 816F
- Compactors: 816, 815, 814
- Engines: C175-16
- Wheel Loaders: 972G, 972H, 966F, 966H, 966K, R1600H
- Off-Highway Trucks: 793F, 797F, 798 AC, 796 AC, 735, 740, 740B, 745C, 745, 740 GC, 794 AC, 793
- Asphalt Pavers: AD45, AD63
Additional information
| Machine Model | 16, 16M, 16M3, 18, 735, 740, 740 GC, 740B, 745, 745C, 793, 793F, 794 AC, 796 AC, 797F, 798 AC, 814, 815, 816, 816F, 966F, 966H, 966K, 972G, 972H, AD45, AD63, C175-16, R1600H |
|---|---|
| Equipment Type | Wheel Loaders, Track Loaders, Motor Graders, Off-Highway Trucks, Compactors, Asphalt Pavers, Engines |
| Part Source | Genuine OEM |
