Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.

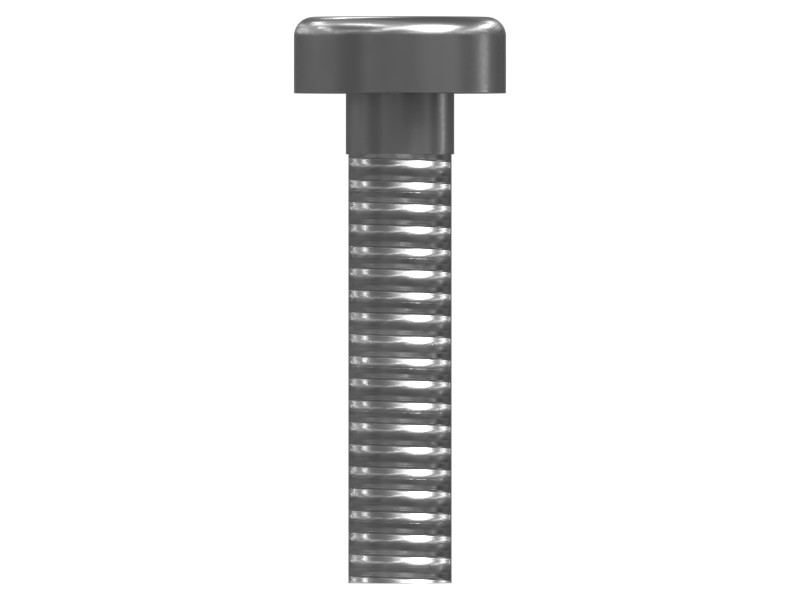

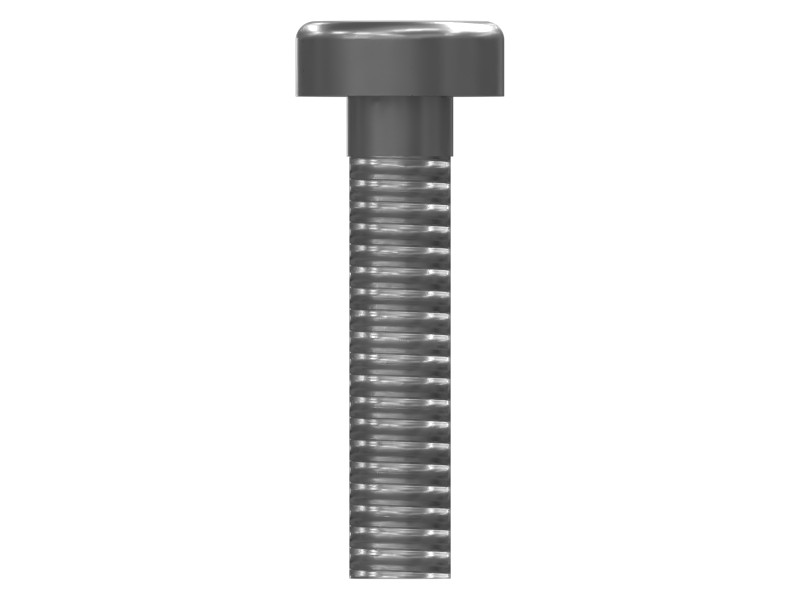

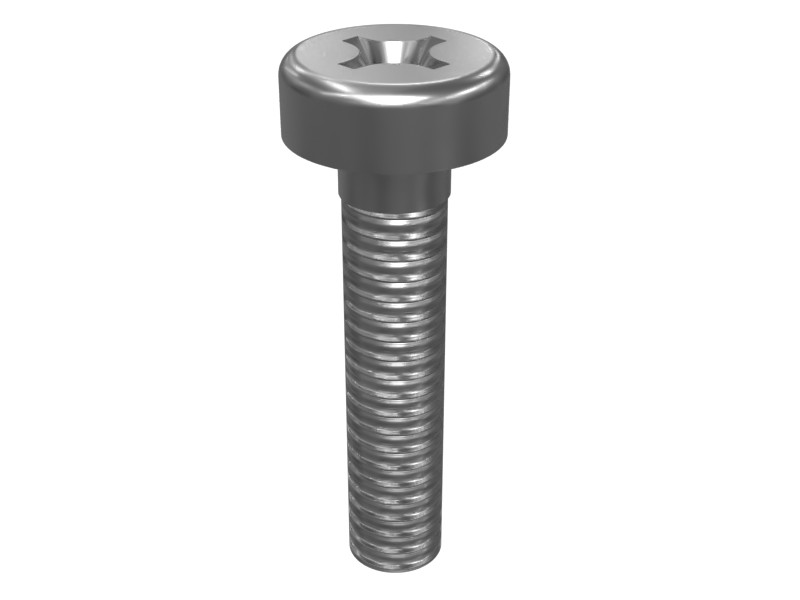

These are small internal thread-forming screws.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Thread Direction | RH |
|---|---|
| Locking Feature | None |
| Thread Size | No. 6 (.138) mm (0 in) |

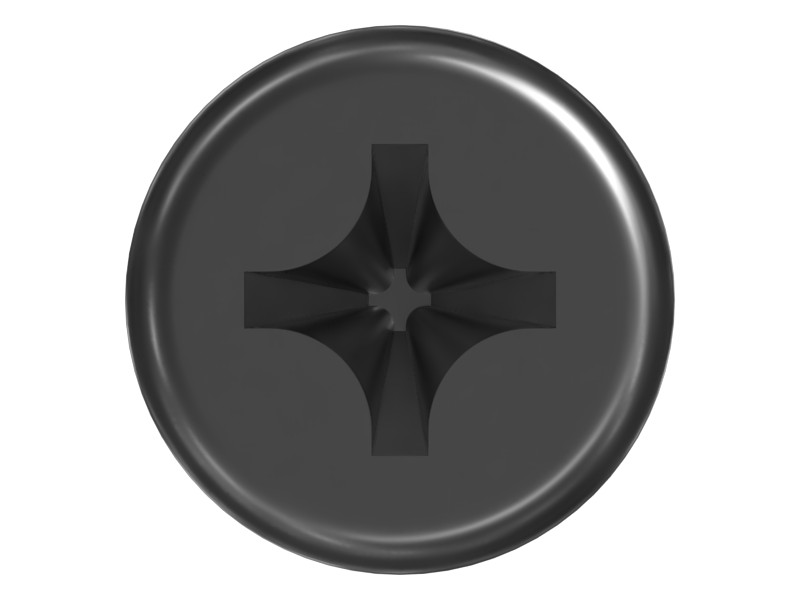

| Bolt Type | Rounded Head (Pan) |
| Bolt Length | 15.88 mm (0.625 in) |
| Thread Size (Diameter × Pitch) | No. 6 (.138)x32 mm |
| Class or Grade | ASME B18.6.3 (60 ksi) |
| Coating | Zinc |
| Handle Length | 1.6 mm (0.063 in) |
Compatible Equipment
- Motor Graders: 140G
- Generator Sets: 3516C, 3512B, G3516
- Track Loaders: 834H, 826H
- Cold Planers: SE50 VT, PL87, SE60 VT XW, PL83
- Engines: C32, C27, C175-16
- Dozers: D10T, D10R, D11R, D6R II, D6N, D7R II, D5G, D4G, D3G, D5N, D8T
- Excavators: SE60 V XW, 312C L, 320C, 312C, 330C L, 325C, 315C, 637G, 657G, 637E, 345C, 621G, 385C L, 3512C, 365C, 385C, 385C FS, 3516B
- Wheel Loaders: 972M, 980M, 966M, 982M
- Off-Highway Trucks: 773E, 798 AC, 777D, 785, 796 AC, 777, 793, 793D, 773D, 794 AC, 797F, 789, 793F, 771D
- Asphalt Pavers: AP655F, AP655F L
Additional information
| Machine Model | 140G, 312C, 312C L, 315C, 320C, 325C, 330C L, 345C, 3512B, 3512C, 3516B, 3516C, 365C, 385C, 385C FS, 385C L, 621G, 637E, 637G, 657G, 771D, 773D, 773E, 777, 777D, 785, 789, 793, 793D, 793F, 794 AC, 796 AC, 797F, 798 AC, 826H, 834H, 966M, 972M, 980M, 982M, AP655F, AP655F L, C175-16, C27, C32, D10R, D10T, D11R, D3G, D4G, D5G, D5N, D6N, D6R II, D7R II, D8T, G3516, PL83, PL87, SE50 VT, SE60 V XW, SE60 VT XW |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks, Asphalt Pavers, Cold Planers, Engines, Generator Sets |
| Part Source | Genuine OEM |
