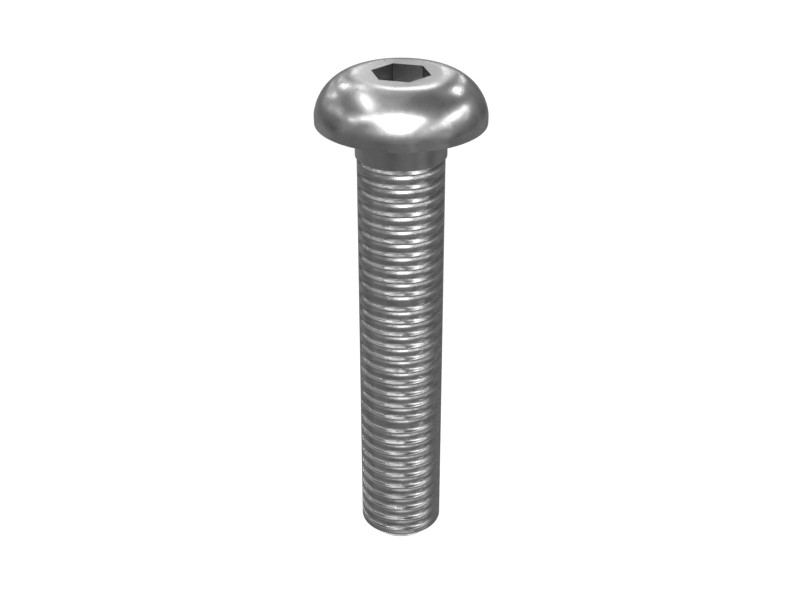

9X-6016 8-32-2A Thread Socket Head Screw
Cat® fender wiring harness socket head screw fastener for securing electrical connections
Description
Machine screws are available in a variety of head styles, drive types, sizes, and materials.
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Specifications
| Thread Direction | RH |
|---|---|
| Bolt Length | 22.23 mm (0.875 in) |
| Class or Grade | ASTM A574 (180 ksi) |
| Thread Size (Diameter × Pitch) | No. 8 (.164)x32 mm |
| Handle Length | 1.59 mm (Not Specified in) |
| Bolt Type | Rounded Head (Pan) |
| Thread Size | No. 8 (.164) mm (0 in) |
| Head Type | Button |
| Material | Alloy Zinc |
| Coating | Zinc |
| Locking Feature | None |
| Length | 7/8 in |
Compatible Equipment
- Motor Graders: 14, 18, 14M, 16, 16M3
- Generator Sets: 3512E, 3512B
- Track Loaders: 992, 995
- Cold Planers: SE50 VT
- Engines: C27, C32
- Dozers: D1, D8, D11R, D10R, D6R, D9R, D8N, D7H, D7R, D8R, D6R XL, D7
- Excavators: 3512C
- Off-Highway Trucks: 789D, 793D, 793F, 785D, 797F, 772G, 770G, 773F, 785, 789, 793
- Skid Steer Loaders: 236
Additional information
| Machine Model | 14, 14M, 16, 16M3, 18, 236, 3512B, 3512C, 3512E, 770G, 772G, 773F, 785, 785D, 789, 789D, 793, 793D, 793F, 797F, 992, 995, C27, C32, D1, D10R, D11R, D6R, D6R XL, D7, D7H, D7R, D8, D8N, D8R, D9R, SE50 VT |
|---|---|
| Equipment Type | Excavators, Track Loaders, Skid Steer Loaders, Dozers, Motor Graders, Off-Highway Trucks, Cold Planers, Engines, Generator Sets |
| Part Source | Genuine OEM |
