Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Hex head bolts/screws provide extremely strong tapping performance.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.

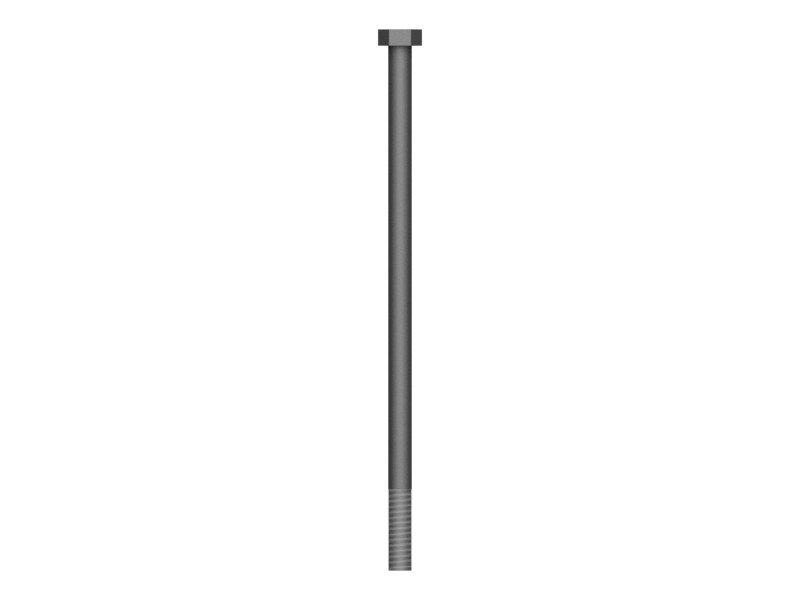

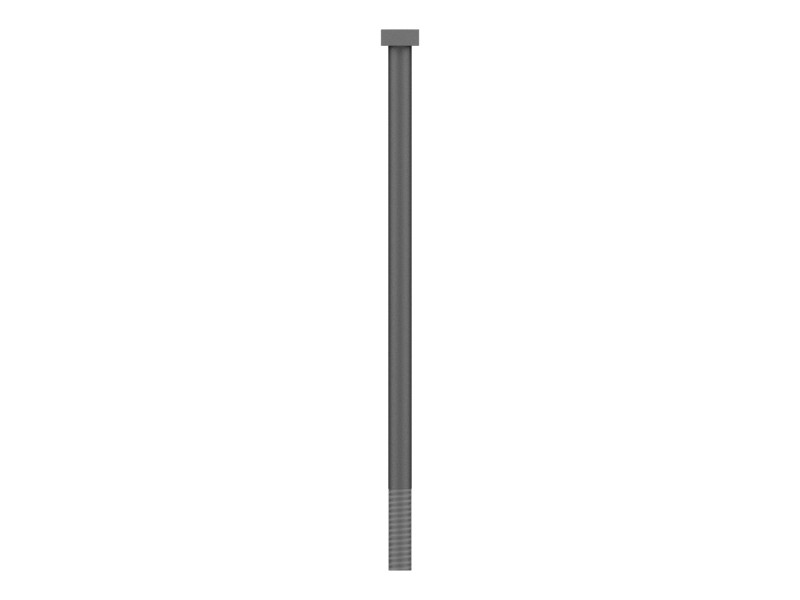

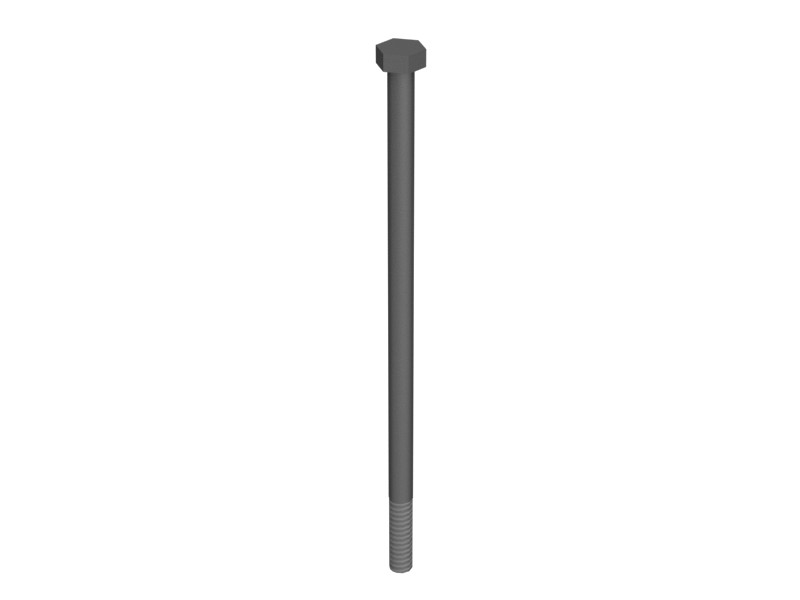

Specifications
| Thread Size | M8 mm (0 in) |
|---|---|
| Locking Feature | None |

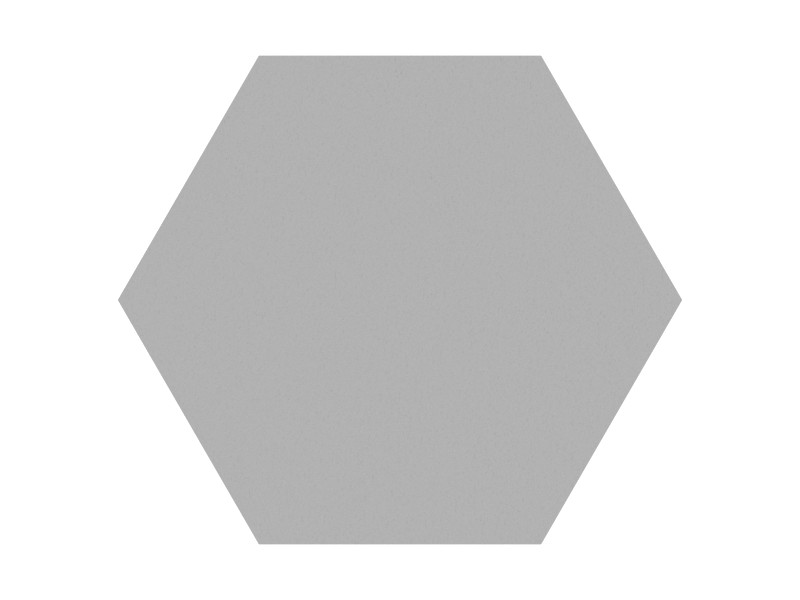

| Hex Size | 13 mm (0.51 in) |
| Class or Grade | ISO 898-1 Class 10.9 |
| Thread Direction | RH |
| Thread Size (Diameter × Pitch) | M8X1.25 mm |
| Bolt Length | 180 mm (7.09 in) |
| Bolt Type | Hex Head Bolt |
| Coating | Zinc Phosphate and Oil |
| Handle Length | 152 mm (5.98 in) |
Compatible Equipment
- Generator Sets: C9
- Track Loaders: 973K, 972
- Cold Planers: PL72
- Motor Graders: 349 GC, 14
- Compactors: CP11 GC, CP12 GC, C9.3B, CS12 GC, C-9
- Engines: C12
- Dozers: D6T LGP, D6T, D7E, D7
- Excavators: 340, 350, 6015B, 336E LH, 336E L, 336F L XE, 336, 336F L, 336F, 336F LN, 336E, 336E H, 320D FM, 336E LN, 637K, 345 GC, 3516B, 350MHPU, 320D
- Wheel Loaders: 966K, 972L, 928G, 966L, RM400, 966
- Off-Highway Trucks: 789D, 725, 725C2, 773F, 775G
Additional information
| Machine Model | 14, 320D, 320D FM, 336, 336E, 336E H, 336E L, 336E LH, 336E LN, 336F, 336F L, 336F L XE, 336F LN, 340, 345 GC, 349 GC, 350, 350MHPU, 3516B, 6015B, 637K, 725, 725C2, 773F, 775G, 789D, 928G, 966, 966K, 966L, 972, 972L, 973K, C-9, C12, C9, C9.3B, CP11 GC, CP12 GC, CS12 GC, D6T, D6T LGP, D7, D7E, PL72, RM400 |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Cold Planers, Engines, Generator Sets |
| Part Source | Genuine OEM |
