Description
Cat® fluid-carrying adapters meet extremely high standards of quality and reliability. These adapters are manufactured to tight tolerances to ensure leak-free connections. Every Cat fluid-carrying adapter meets or exceeds industry standards for working pressure, assembly torque capability and corrosion protection to ensure long-lasting, reliable machine operation.
Features
- Wetted parts
- Meets or exceeds industry-standard part performance, providing leak-free connections

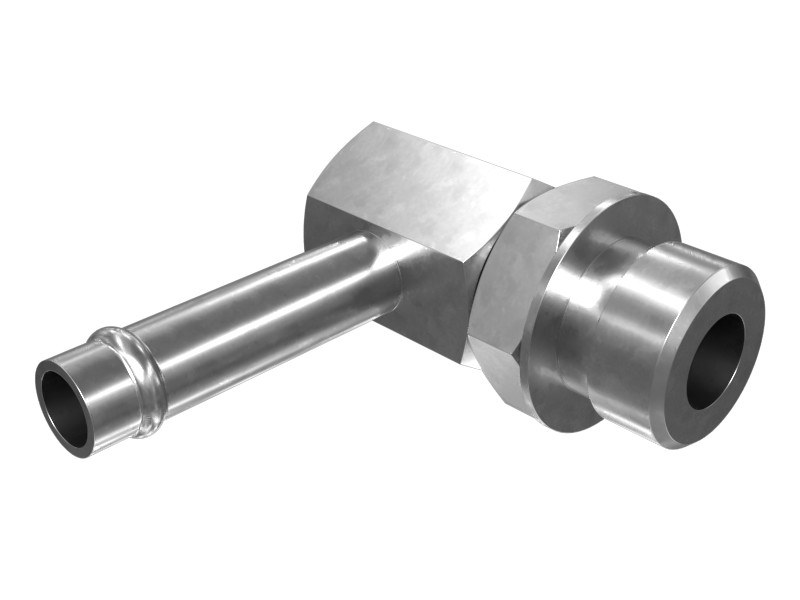

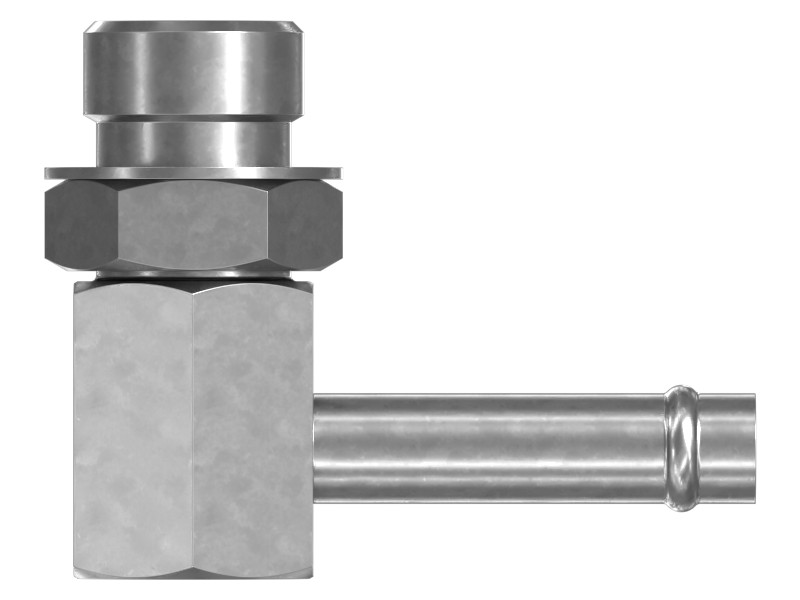

- Image provided is for reference only. Adapter construction may differ slightly from the image shown, but this part is interchangeable with the OEM part.
Applications
Adapters are used to connect fluid-carrying hoses and tubes to other system components. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material Description | Plated Steel |
|---|---|
| Material | Alloy Steel |
| Hose Warning | Improper selection of hose and coupling combinations will void the warranty and may result in serious personal injury or death, property damage, or failure of components and machine systems. Cat® hose assembly products are designed and tested as a system to provide reliable connections that maximize hydraulic system safety and reliability. In addition, properly maintained, appropriate Caterpillar tooling is recommended to ensure hoses are crimped to technical specifications. Using Caterpillar hose with another manufacturer's couplings, or Caterpillar couplings with another manufacturer's hose, may result in unreliable, unsafe, or poorly performing hose assemblies. Caterpillar does not recommend or authorize this practice. For more information, refer to SAE J1273 Section 6.3 and ISO 17165-2 Section 6.3. |
| Transmission and Hydraulic Oil Compatible Seals | 3K-0360 (3/4-16) |
| Oil and Fuel Compatible Seals | 238-5080 (3/4-16) |
| Coolant and DEF Compatible Seals | 6V-6609 (3/4-16) |
Compatible Equipment
- Generator Sets: G3516C
- Track Loaders: 994K
- Cold Planers: TH360B, PL87, PL83, PL72
- Compactors: CS11, CW-16, CW-34, CP54B, CS54B, CS56B, CS79B, CS68B, CS78B, CP56B, CB-44B, CS74B, CS12, CS-54B, CS64B
- Engines: C7, C32
- Excavators: 320D, 320D2, 336D2, 330, 336D, 329D, 313 GC, 316 GC, 330D L, 313, 336D L, 328D LCR, 314D CR, 329E, 313D2, 324D L, 320D L, 329D L, 320D2 GC, 330C, 329E L, 313F LGC, 318D2 L, 326D L, 336D2 L, 313D2 GC, 312D2 L, 320E, 315F LCR, 324D, 312D2, 313D, 320D2 L, 336D2 XE, 311D LRR, 314D LCR, 312D L, 330GC, 350, M325D L MH, 336D2 GC, 326, 323 GX, 320 GX, 333, 323, 637K, 325, 316 GX, 3508B, 313 GX, 312 GX, 318D L, 340D2 L, 312 GC, 330 GC, 320D RR, 312D, 325D L, 320, 315D L, 320D GC, 323D L, 637G, 336, 320 GC, 320D FM, 336 GC, 335F LCR, 325D, 312D2 GC, 330D, 330C L, 637E, 340D L, 416E, 335, 350MHPU, 318D2
- Skid Steer Loaders: 24, 262D, 246D, 313D2 LGP
- Motor Graders: 120, 316F, 349 GC
- Wheel Excavators: M315GC, M315
- Dozers: D5H, D5M, D6K2, D7E
- Wheel Loaders: 950, 966H, 972H
- Off-Highway Trucks: 725, 735, 730, 793F, 797F
