9X-3601 Bucket Cylinder Seal
Cat® 150 mm Bore Bucket Cylinder Seal prevents leaks and maintains the integrity of the fluid in the cylinder
Description

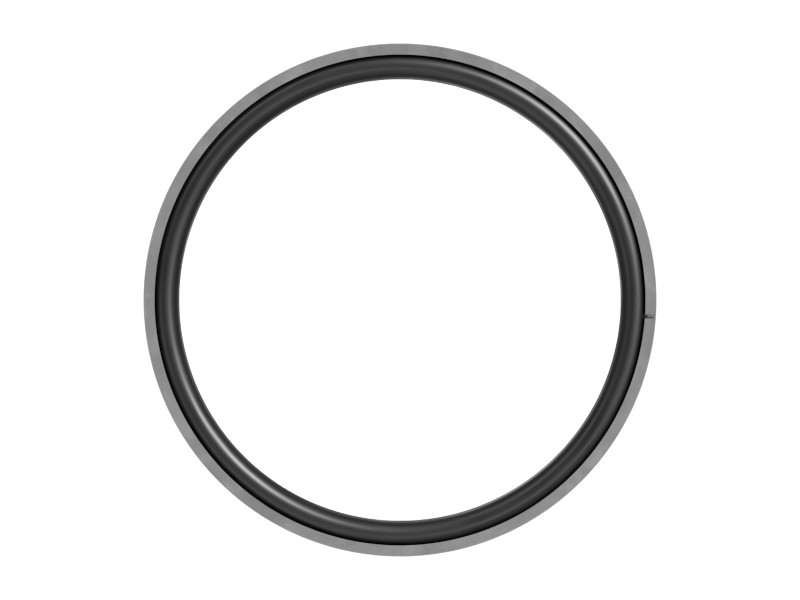

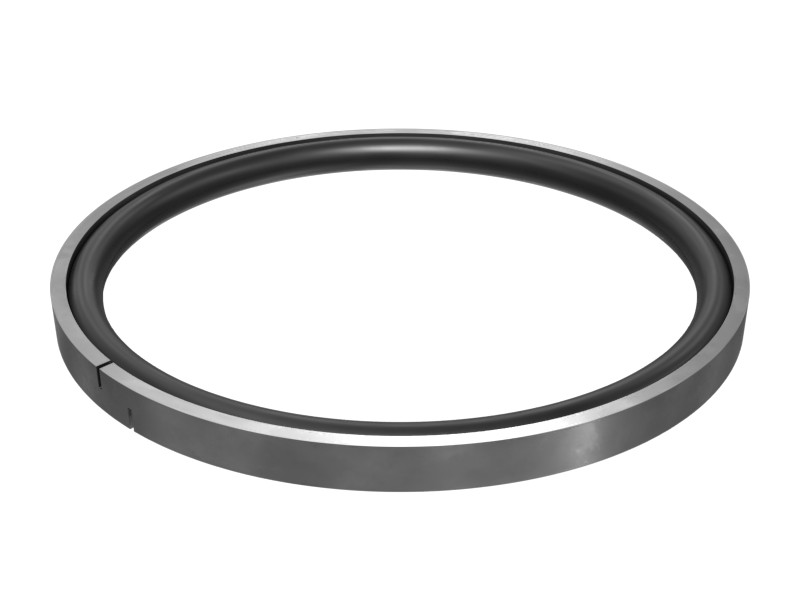

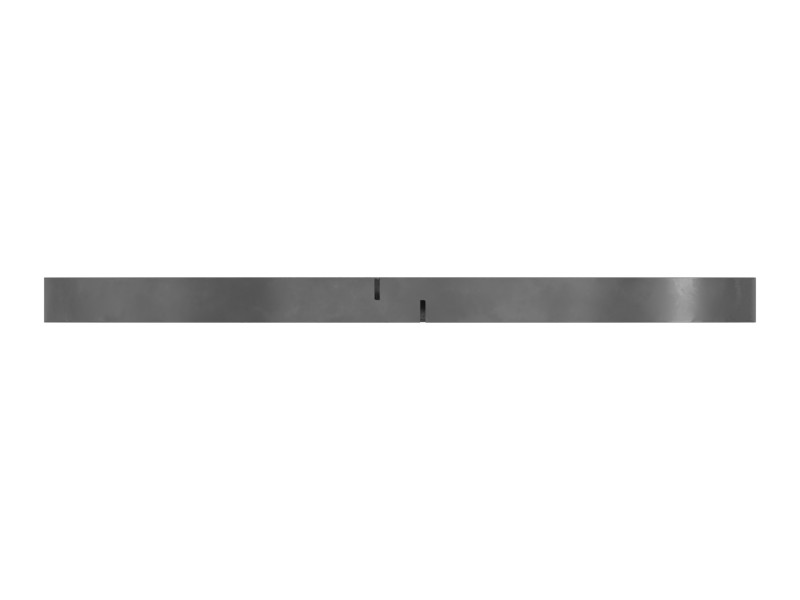

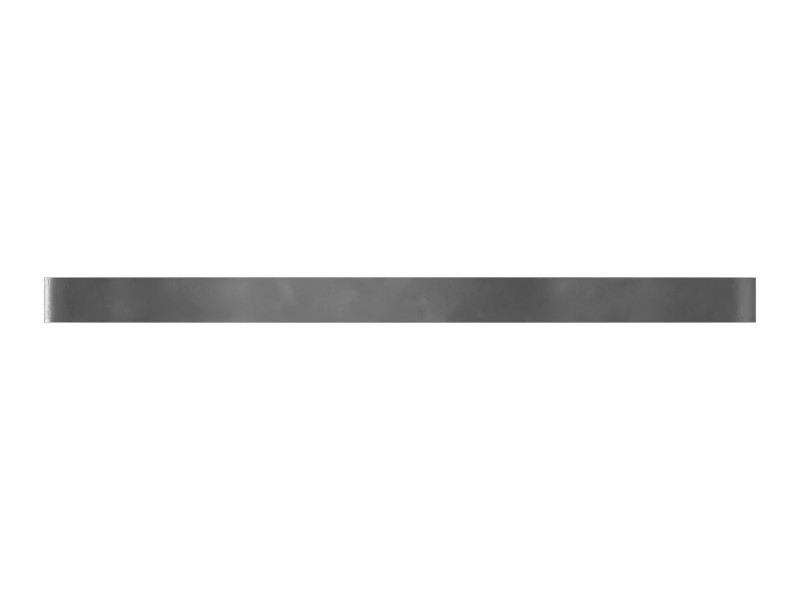

The piston seal is a two-piece seal consisting of a piston ring and an expander, used to prevent hydraulic oil from flowing between the rod end and the head end of the cylinder.
Specifications
| Groove Width – A (+/- 0.002 in) | 0.38 in |
|---|---|
| Seal Shape | Type 3 |
| Groove Width – A (+/- 0.0508 mm) | 9.63 mm |
| Groove Diameter – B (+/- 0.0762 mm) | 130.63 mm |
| Groove Diameter – B (+/- 0.003 in) | 5.14 in |
| Seal Type | Piston Seal |
| Material | Rubber |
| Hole Diameter | 150 mm (5.905 in) |
| Inside Diameter | Not Specified mm (Not Specified in) |
| Width | Not Specified mm (Not Specified in) |
Compatible Equipment
- Track Loaders: 982, 963D
- Excavators: 330D L, 336D2 L, 320C, 325C, 325C L, 323D L, 329D L, 325D L, 328D LCR, 336D L, 329E L, 336F L, 325D, 330C, 330C L, 330 L, 324D L, 330D, 329E, 336E LN, 325B L, 336F LN, 330B, 336E L, 326D L, 324D, 325B, 385C L, 621K, 390F, 621H, 390D, 385B, 385C, 349D L, 345D, 345B, 345C L, 345C, 340D2 L, 340D L, M325D L MH, 336D2, 336D, 326D2 L, 329D, 329D2 L, 390D L, 390F L
- Wheel Loaders: 982M, 980M
- Off-Highway Trucks: 730, 735, 725, 725C2, 740B, 740
- Asphalt Pavers: AD63
Additional information
| Machine Model | 320C, 323D L, 324D, 324D L, 325B, 325B L, 325C, 325C L, 325D, 325D L, 326D L, 326D2 L, 328D LCR, 329D, 329D L, 329D2 L, 329E, 329E L, 330 L, 330B, 330C, 330C L, 330D, 330D L, 336D, 336D L, 336D2, 336D2 L, 336E L, 336E LN, 336F L, 336F LN, 340D L, 340D2 L, 345B, 345C, 345C L, 345D, 349D L, 385B, 385C, 385C L, 390D, 390D L, 390F, 390F L, 621H, 621K, 725, 725C2, 730, 735, 740, 740B, 963D, 980M, 982, 982M, AD63, M325D L MH |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Off-Highway Trucks, Asphalt Pavers |
| Part Source | Genuine OEM |
