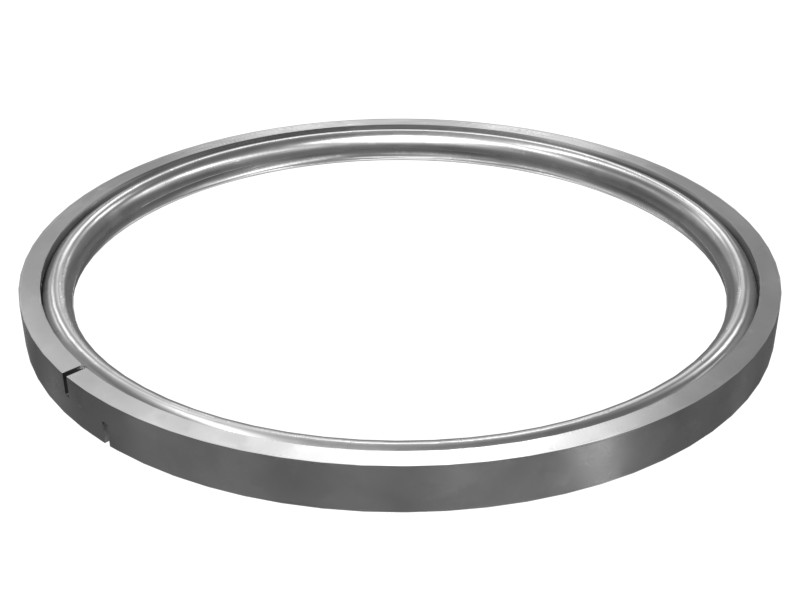

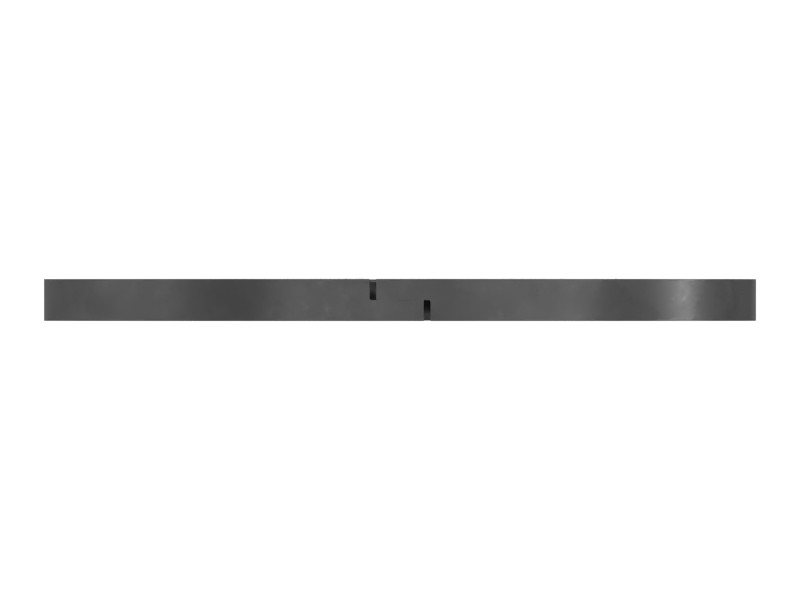

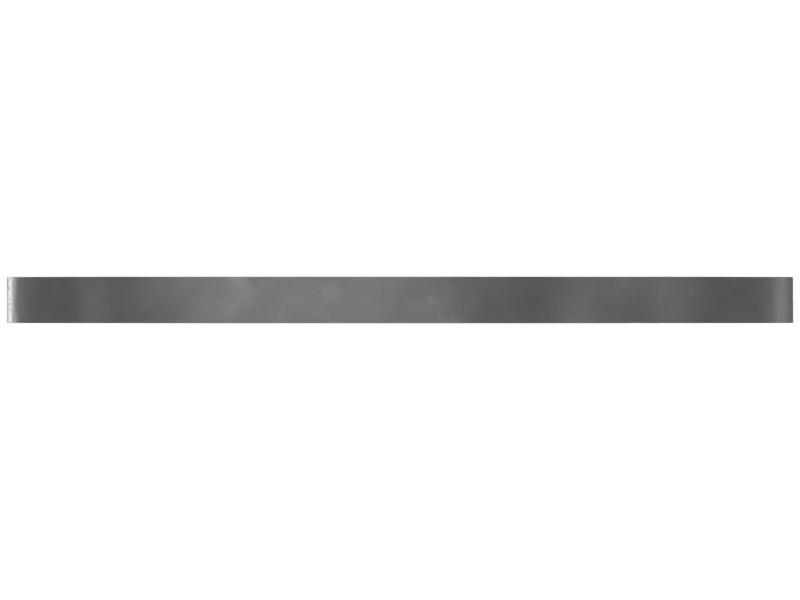

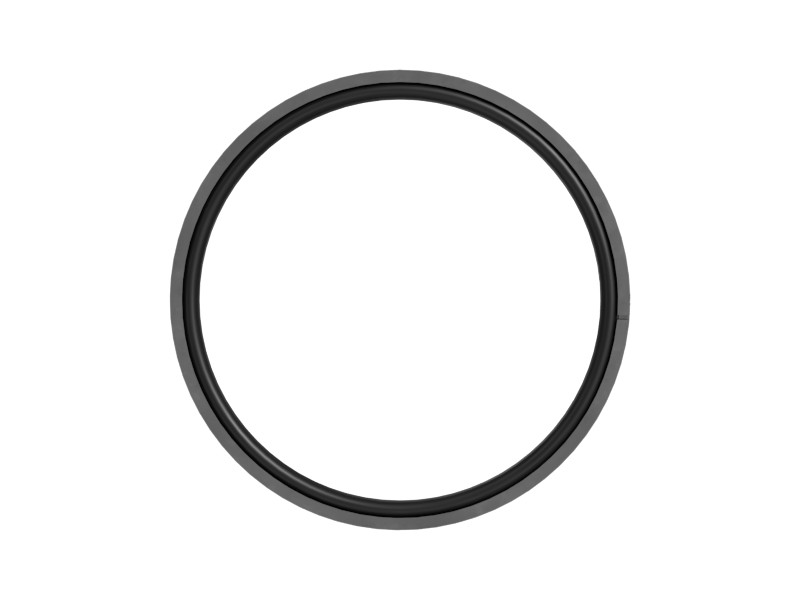

9X-3592 120 mm Bore Two-Piece Seal
Cat® Plastic Laminated Rubber Two-Piece Seal for Hydraulic Cylinders
Description
A two-piece seal consisting of a piston ring and an expander, used to prevent oil from flowing between the rod end and the cover end of the cylinder. The piston seal ring is usually made of Teflon, and nylon material can be selected when the pressure is greater than 3000 psi (20670 kPa). Expanders of various shapes are made of nitrile rubber.
Specifications
| Groove Width – A (+/- 0.002 in) | 0.29 in |
|---|---|
| Seal Shape | Type 3 |
| Groove Diameter – B (+/- 0.0762 mm) | 105.74 mm |
| Groove Diameter – B (+/- 0.003 in) | 4.16 in |
| Groove Width – A (+/- 0.0508 mm) | 7.24 mm |
| Hole Diameter | 120.00 mm (4.72 in) |
Compatible Equipment
- Track Loaders: 826K, 992
- Cold Planers: PL87
- Wheel Excavators: M317D2, M322D, M320, M315D
- Compactors: 825K, 824K, 816, 814
- Dozers: D7E, D6N
- Mini Excavators: 307B, 307D, 307C
- Excavators: 330D L, 320B, 320C, 312D, 324D L, 312D L, 315F LCR, 323D L, 329D L, 312C, 311D LRR, 314D LCR, 313D2, 312E L, 330C, 311C, 315C, 320D L, 312C L, 318D2 L, 325D L, 313D, 315D L, 336D L, 312E, 311B, 314D CR, 325D, 320D FM, 314C, 325B L, 318D L, 345C L, 345B, 345C, M325D L MH, 325C, 320D, 308D, 320D2
- Skid Steer Loaders: 313D2 LGP
Additional information
| Machine Model | 307B, 307C, 307D, 308D, 311B, 311C, 311D LRR, 312C, 312C L, 312D, 312D L, 312E, 312E L, 313D, 313D2, 313D2 LGP, 314C, 314D CR, 314D LCR, 315C, 315D L, 315F LCR, 318D L, 318D2 L, 320B, 320C, 320D, 320D FM, 320D L, 320D2, 323D L, 324D L, 325B L, 325C, 325D, 325D L, 329D L, 330C, 330D L, 336D L, 345B, 345C, 345C L, 814, 816, 824K, 825K, 826K, 992, D6N, D7E, M315D, M317D2, M320, M322D, M325D L MH, PL87 |
|---|---|
| Equipment Type | Excavators, Mini Excavators, Wheel Excavators, Track Loaders, Skid Steer Loaders, Dozers, Compactors, Cold Planers |
| Part Source | Genuine OEM |
