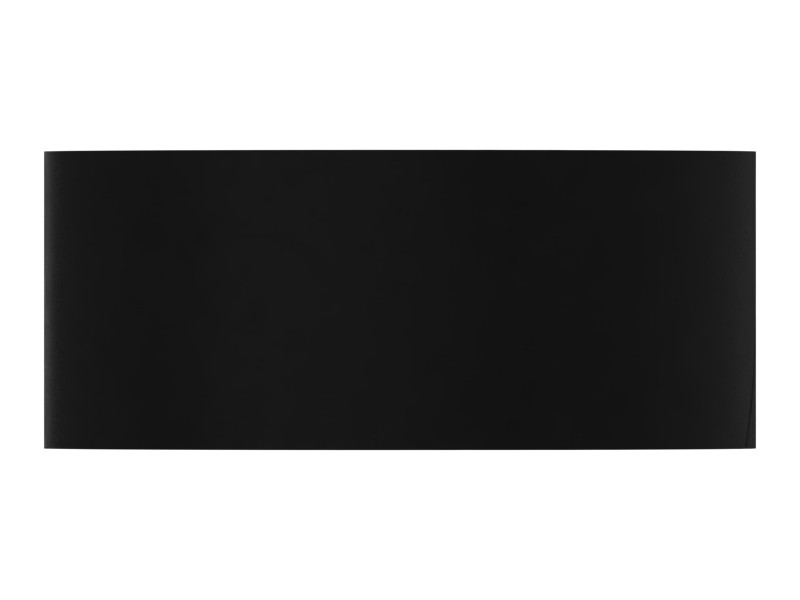

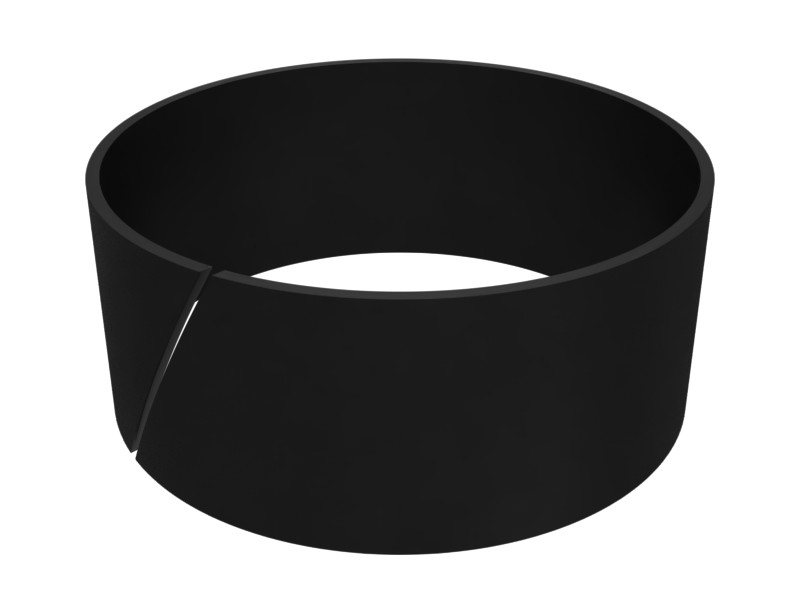

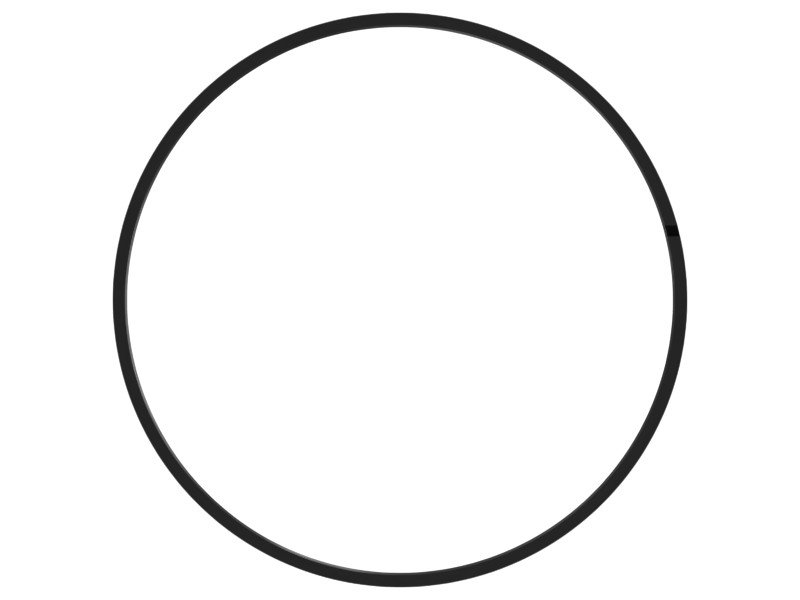

9X-3579 114.30 mm Bore Piston Wear Ring
Cat® Plastic Scarf-Cut Piston Rod Guide Wear Ring for Hydraulic and Suspension Cylinders
Description
Cat wear rings guide the hydraulic piston or rod to maintain alignment and prevent metal-to-metal contact, reducing wear and distributing pressure evenly across the seals.
Features
- Material: Type 6 Nylon

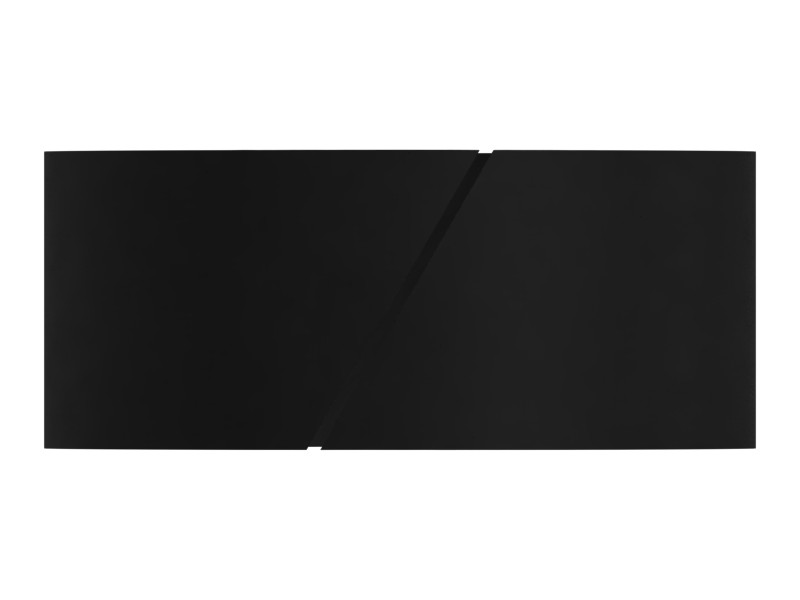

- 30° cut angle
- Fits 114.3 mm diameter rod
- Outside Diameter: 119.3 mm
- Thickness: 2.5 mm
Applications
Used as needed for servicing hydraulic cylinder components to ensure leak-free equipment. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Nylon, 6, 6/12, 6/6 Plastic |
|---|---|
| Rod Diameter | 114.30 mm (4.50 in) |
| Groove Diameter – B (+/- 0.0254 mm) | 119.38 mm |
| Overall Length | 49.73 mm (1.96 in) |
| Outside Diameter | 119.3 mm (4.7 in) |
| Thickness | 2.5 mm (0.01 in) |
| Width | 50 (Groove) mm (1.97 (Groove) in) |
| Groove Width – A (+/- 0.0762 mm) | 50.00 mm |
| Groove Diameter – B (+/- 0.001 in) | 4.70 in |
| Groove Width – A (+/- 0.003 in) | 1.97 in |
| Diameter | 119.4 (Groove) mm (4.7 (Groove) in) |
| Material Description | Nylon Type 6 |
Compatible Equipment
- Dozers: D11T, D11R
- Wheel Loaders: 988G, 988H, R3000H
- Off-Highway Trucks: 745, 740 GC, 740, 730, 740B, 725, 735, 745C, 725C2
