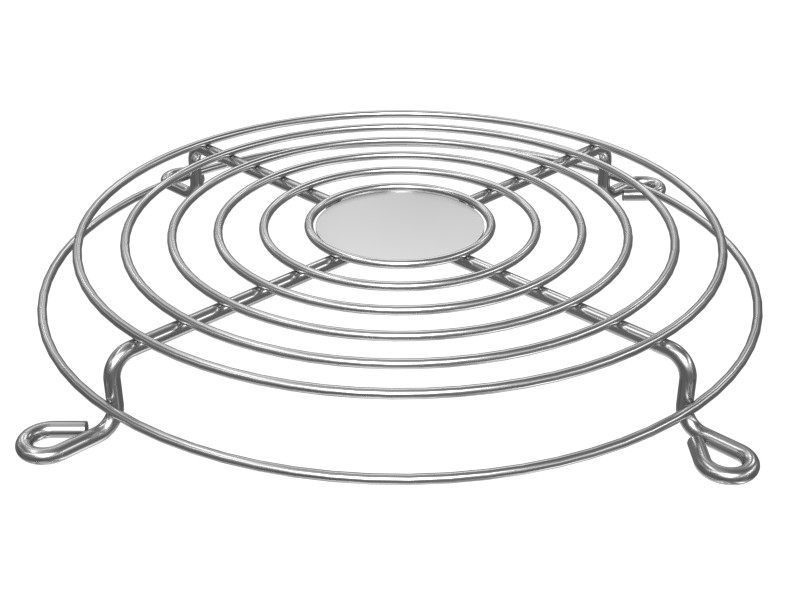

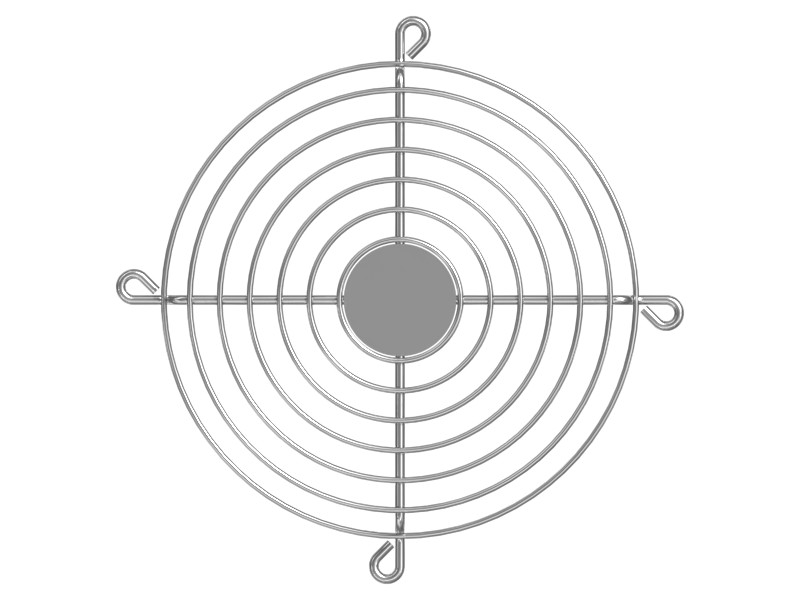

9X-3452 Condenser Fan Shroud
Cat® Fan Shroud for Refrigerant Condenser
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
The fan shroud is a protective component designed to keep debris out of the condenser fan and prevent damage to the fan blades or motor. Fan shrouds are typically made of durable material and are placed over the condenser fan to form a barrier between the blades.
Features
- Provides enhanced protection against debris such as dust and dirt.
- Helps reduce fan noise.
Applications
The fan guard used in refrigerant condensers allows air to flow freely through the fan while preventing larger objects from entering and causing damage. Widely used on Cat 12G, 135H, 140G, 140H, 143H, 14H, 160H, and 163H Motor Graders, 315, 322, and 527 517, 527, 545, D4H, and D5H Skidders, 539 Feller Bunchers, 615, 621F, 623F, 627E, and 627F Wheel Tractor-Scrapers, 816, 816B, 816F, 816K, 825G, 825K, 826, 826C, 826G, 826H, 826K, 836, 836G, 836H, and 836K Compactors, 824G, 824H, 834B, 834G, and 834H Wheel Dozers, 910E, 910F, 910F, 910G, 914G, 916, 918F, 924F, 926, 926E, 928G, 936, 936E, 936F, 950F, 950G, 950H, 962G, 962H, 966F, 966G, Wheel Loaders 966H, 970F, 972G, 972H, 980G, 980H, 988G, 988H, IT12B, IT12F, IT12F, IT14B, IT14G, IT18B, IT18F, IT24F, IT28B, IT28G, IT62G, and IT62H, 933, 933C, 939, 939C, 953, 953C, 963C, and 973C, 953, 963, TA29, TH35, TR16, TR35, and TR43 Powertrains, D10, D10N, D10R, D10T, D11, D11R, D11T, D3C, D4C, D4H, D5C, D5H, D5M, D6E, D6G, D6G, D6H, D6M, D6R, D6T, D7H, D7R, D7RX, D8N, D8R, D8T, D9L, D9N, D9N, D9R, and D9T Tractors.
Specifications
| Inside Diameter | 60 mm (2.36 in) |
|---|---|
| Outside Diameter | 240 mm (9.45 in) |
| Length | 3.54 in |
| Thickness | 5 mm |
| Height | 29 mm (1.14 in) |
| Width | 2.17 in |
Compatible Equipment
- Track Loaders: 826K, 826H, 826G, 834H, 816F
- Wheel Excavators: IT14G
- Compactors: 816
- Dozers: D6T, D10T2, D8R, D7R II, D5M, D6R III, D5H, D6R, D9R, D9N, D7R, D6R II, D6M, D8N, D9T, D11T, D8T, D6R XL, D10, D11, D9, D11R, D10N, D10T, D10R
- Wheel Loaders: 836, 966H, 928G, 950H, 980H, 972H, 988H, 988G, 980G
Additional information
| Machine Model | 816, 816F, 826G, 826H, 826K, 834H, 836, 928G, 950H, 966H, 972H, 980G, 980H, 988G, 988H, D10, D10N, D10R, D10T, D10T2, D11, D11R, D11T, D5H, D5M, D6M, D6R, D6R II, D6R III, D6R XL, D6T, D7R, D7R II, D8N, D8R, D8T, D9, D9N, D9R, D9T, IT14G |
|---|---|
| Equipment Type | Wheel Excavators, Wheel Loaders, Track Loaders, Dozers, Compactors |
| Part Source | Genuine OEM |
