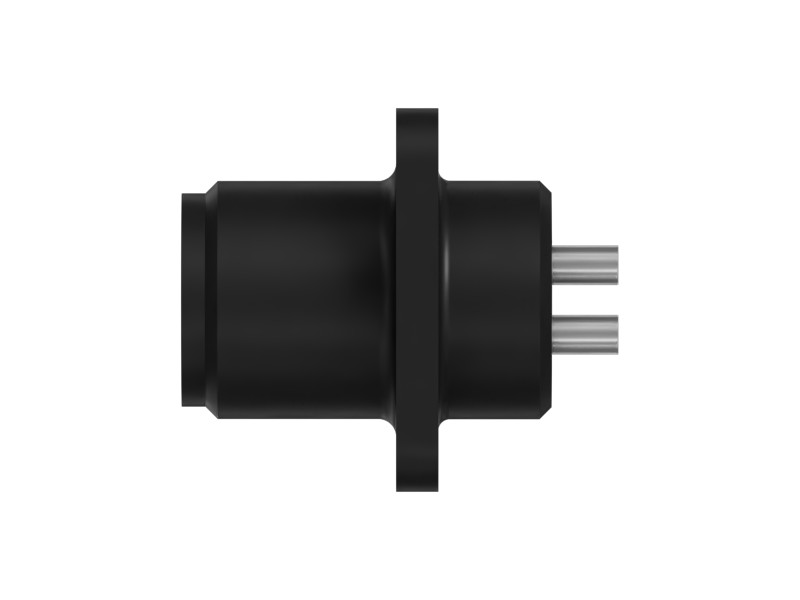

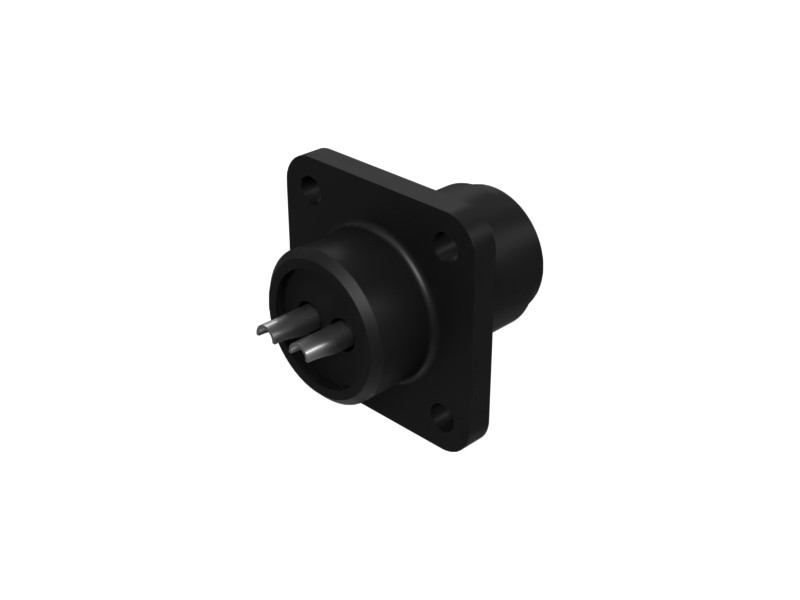

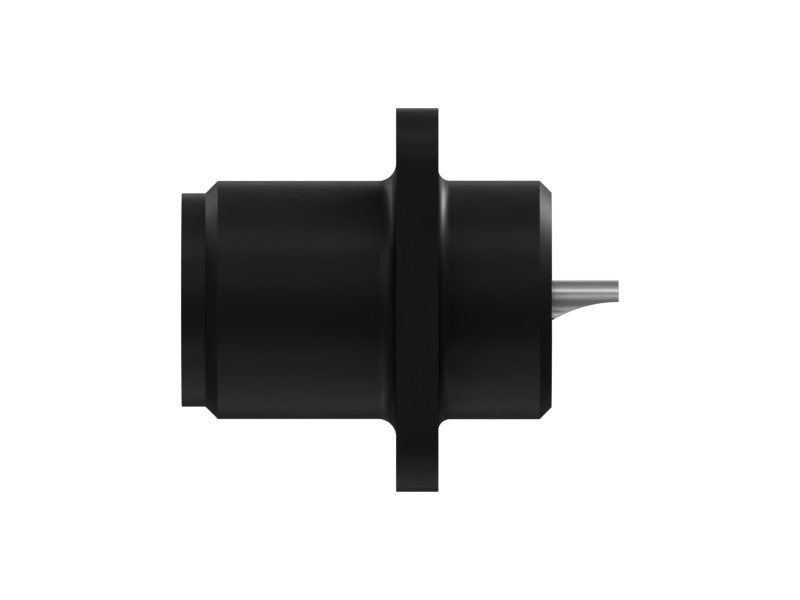

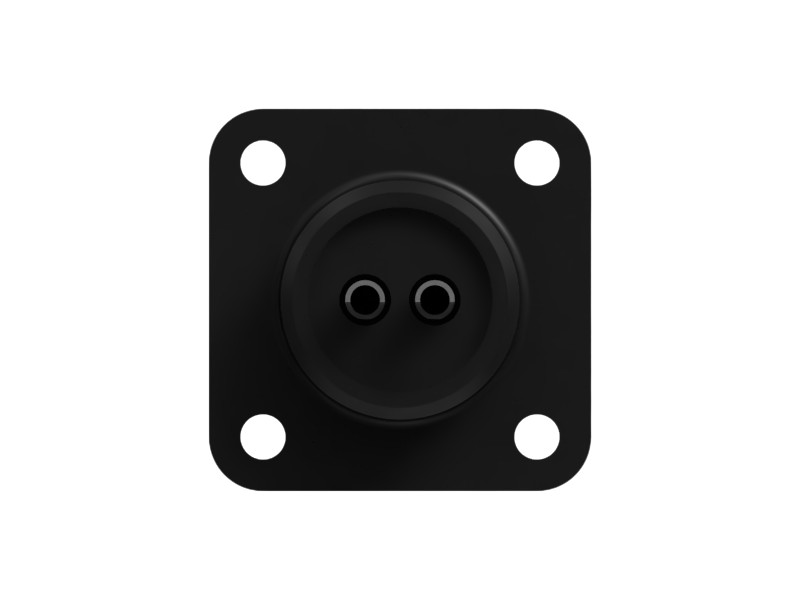

9X-3406 2-Pin Flange Base Receptacle Connector
Cat® 2-pin flange mount receptacle connector for 10 amp rated current
Description
Cat Receptacle Connector Groups use a pin-and-socket connection system to provide reliable electrical connections in a range of electrical applications on Cat heavy-duty equipment.
Features
- Contact Type: Pin
- Contact Style: 3102
- Shell Size: 10SL
- Number of Contacts: 2
- Connector Series: MS-5015
- Wire Size: 18 AWG
- Rated Current: 10 A
- Housing Material: Cast Aluminum
- Shell Plating: Zinc with Black Chromate Surface Finish
- Thread Size: 0.625-24 UNEF
- Considered a military-standard connector
- Easy to connect and disconnect
Applications
Cat receptacle connector groups provide a reliable mating connection between wires or between a wire and equipment. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Alloy Aluminum |
|---|---|
| Material Description | Cast Aluminum |
| Connector Type | Pin |
| Wire Gauge | 18 AWG |
| Length | 29.1 mm (1.1 in) |
| Width | 25.4 mm (1 in) |
| Height | 25.4 mm (1 in) |
| Pin | 2 |
Compatible Equipment
- Generator Sets: 3516C, G3516, G3516C
- Wheel Loaders: R1300G, R1600H, R1700G, R2900G
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
