Description

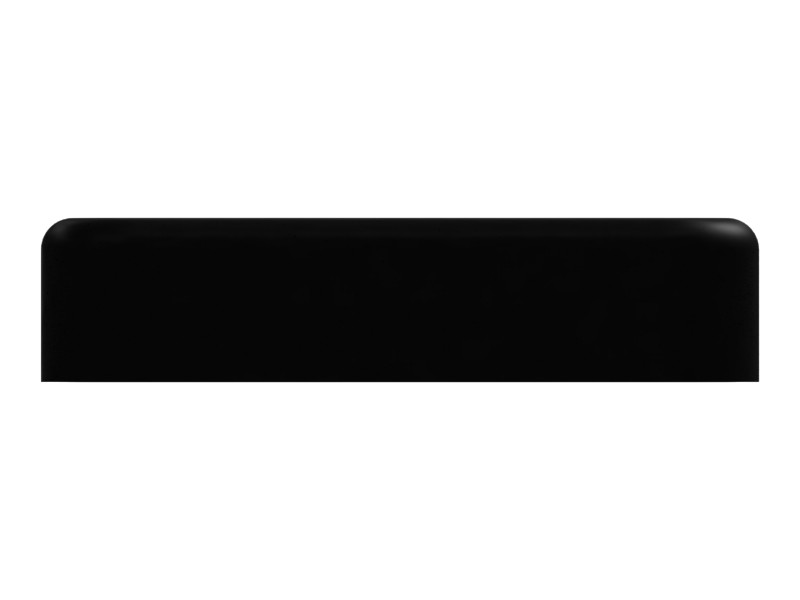

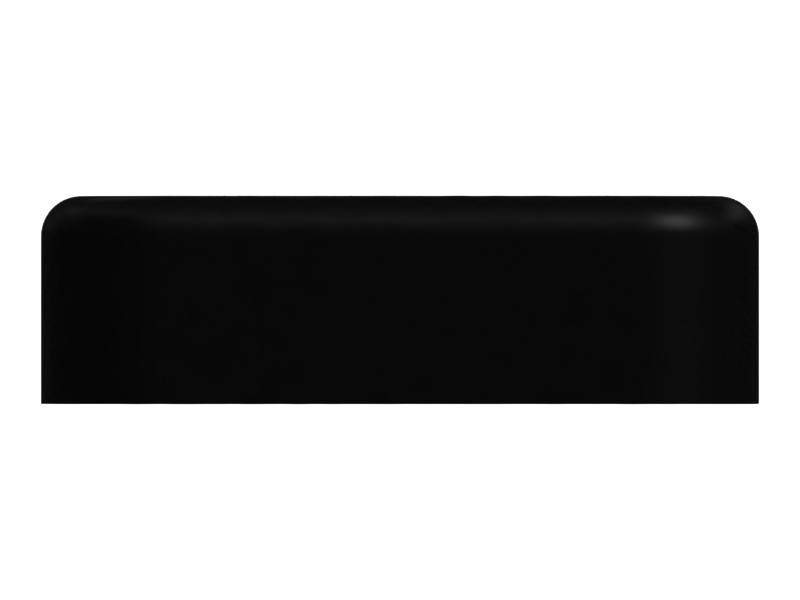

Cat seal connector interfaces are designed to prevent fluid leakage, dust contamination, or physical damage to electrical connectors during shipping, storage, or operation of Cat heavy equipment.
Features
- Seals one half of a 24-pin DRC connector
Applications
The seal connector interface is used on wiring harnesses to seal electrical connectors. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Overall Width | 18 mm (0.7 in) |
|---|---|
| Pin | 12 |
| Overall Height | 5.2 mm (0.2 in) |
| Overall Length | 22.8 mm (0.9 in) |
| Connector Type | 24-Pin DRC |
Compatible Equipment
- Generator Sets: 3512B, 3516C, 3512E, G3516, G3516C, C9, C4.4
- Track Loaders: 963D, 953D, 816F, 826H, 834H, 826G
- Cold Planers: SE60 VT XW, TH360B
- Compactors: CB-434D, C13B, CB-564D, CB-534D, CS-533C, CB-14, C-9, CS-533E
- Engines: C27, C15, C32, C13, C11, C7, C18, C175-16
- Asphalt Pavers: AP-600D, AD63, AP655F, AD30, AP355F, AP300F, AP655F L, AD45
- Skid Steer Loaders: 3126B
- Motor Graders: 12K, 16M, 160K, 14M, 140K, 3606, 14
- Dozers: D10R, D10T, D6R II, D7R, D3G, D6R XL, D5G, D4G, D7R II, D8T, D6R, D9T
- Excavators: 3516B, 3508B, 3512C, 3516E, 385C, 365C, 385C L, 350 L, 621G, 330 L, 657G, 637G, 637E, 385C FS, 320B
- Wheel Loaders: R2900 XE, 966H, 950 GC, R1700G, R2900G, R1300G, 988H, 972G, 928G, 950H, 980G, 924GZ, 924HZ, 966F, 962G, 972H, 980H, R3000H, R1700K, 950G, 990H, R1600H, 928HZ, R1700 XE, 986H, 988G
- Off-Highway Trucks: 789D, 793D, 785D, 797F, 777, 794 AC, 773F, 773, 773E, 777D, 793F, 740, 725, 771D, 777E, 730, 785, 789, 798 AC, 773D, 740B, 775G, 796 AC, 735
