Description

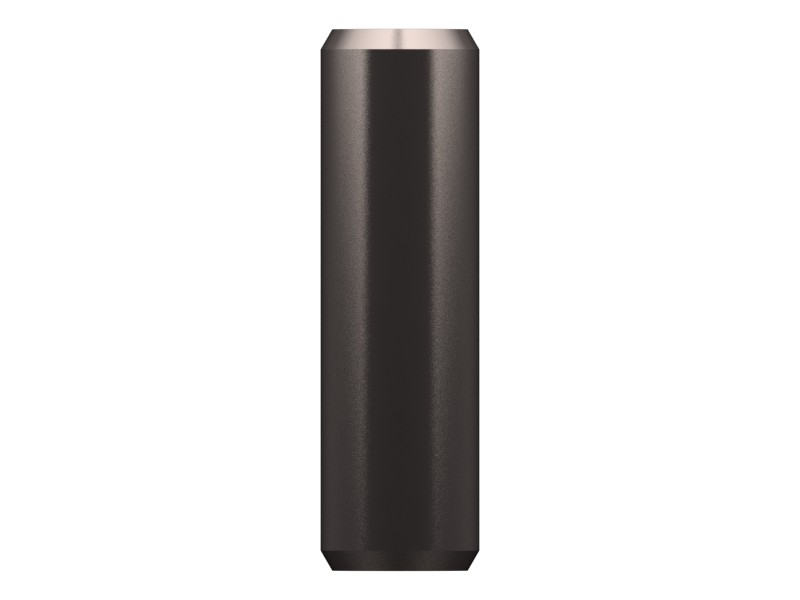

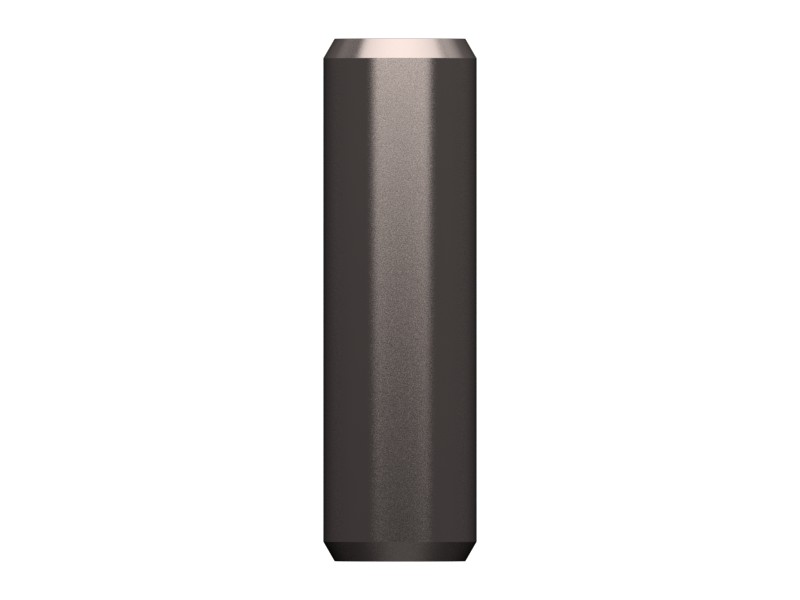

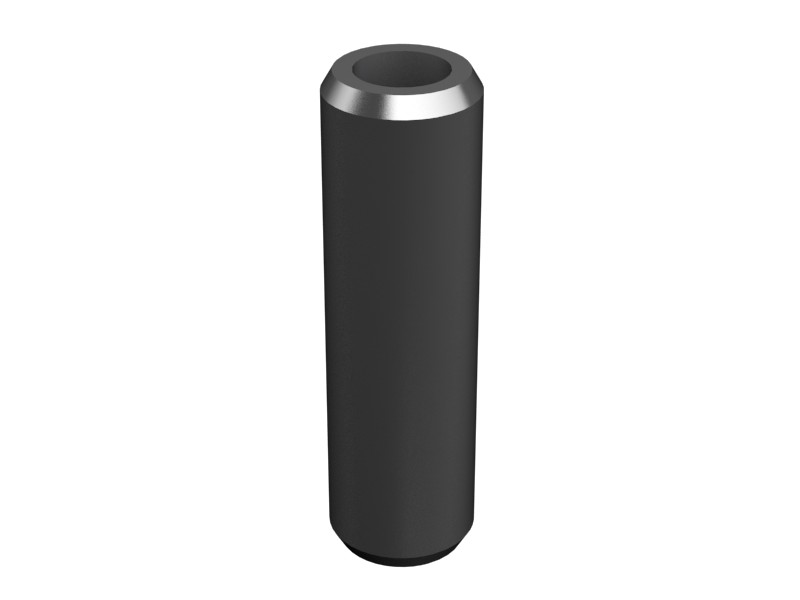

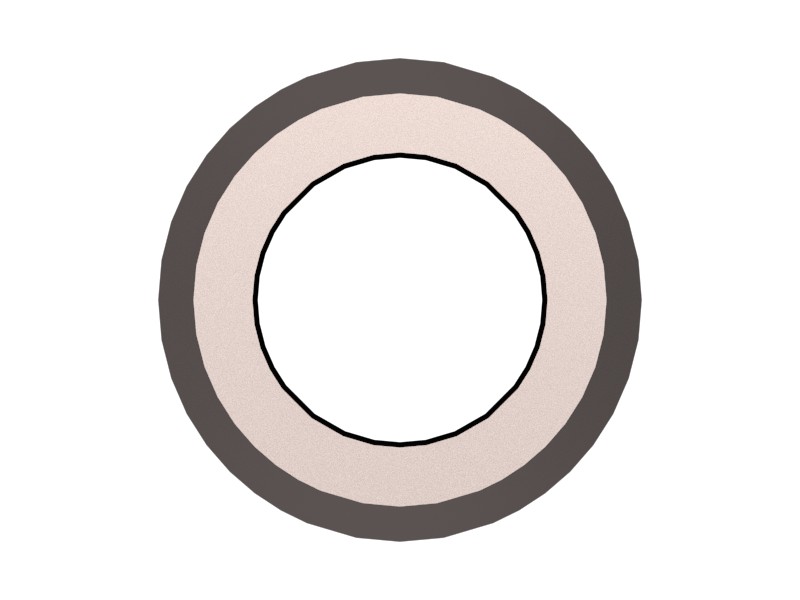

Includes a chamfered end for easy installation. Made of heat-treated steel
Specifications
| Pin Length | 70 mm (2.756 in) |
|---|---|
| Pin Outside Diameter | 20.5 mm (0.807 in) |
| Pin Inside Diameter | 12.5 mm (0.492 in) |
| Material Description | Spring Steel |
| Pin Type | Spring Pin/Roll Pin |
| Pin Diameter – A | 13/16 in |
| Pin Length – B | 2 3/4 in |
| Remarks | Pin Diameter: 20.5, Overall Length: 70, Roll Pin End Type 1: Chamfer, Roll Pin End Type 2: Chamfer |
Compatible Equipment
- Track Loaders: 816F
- Compactors: 816, 815, 814
- Wheel Loaders: 972G, 966F, 966H, 972H, 966K, R1600H
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
